Elkay® -8"Centerset Concealed Deck Metered Lavatory Faucet Cast Fixed Spt Push Button Handles Chrome-LK651

DOWNLOADS

Elkay® commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.

Features


Category: 224239 | deck mount faucets | fixture mounted faucets...

MasterFormat: Plumbing Fixtures | Commercial Plumbing Fixtures | Commercial Faucets, Supplies, and Trim



Elkay®
1333 Butterfield Road
Suite 200
Downers Grove, IL 60515
Tel: (800) 476-4106

CustCare@Elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


8"Centerset Concealed Deck Metered Lavatory Faucet Cast Fixed Spt Push Button Handles Chrome-LK651

Elkay® commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.

Features

  • ADA COMPLIANT: Faucet is ADA compliant
  • LEAD-FREE COMPLIANT: Certified and tested to NSF/ANSI/CAN 61 and 372 to meet all federal and state regulations for low or no-lead products
  • SOLID BRASS CONSTRUCTION: Built for long-term durability
  • VANDAL-RESISTANT AERATOR: Includes a special key to remove and change out the aerator; ideal for public spaces
  • 3 FAUCET HOLES: Faucet designed to be installed using three faucet holes
  • 4" HOLE SPREAD: Faucets designed to be installed using 4" hole spread


See More


Specifications

Specifications
Material

Chrome-plated Brass

Spray Type

None

Installation Type

Deck-mount

Features

Solid Brass Waterway Construction
Vandal-resistant Aerator with Key

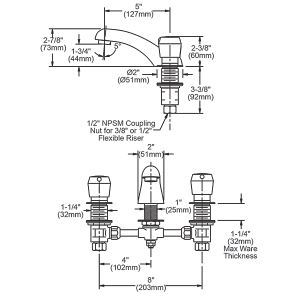

Dimensions

L: 9-3/4"
W: 6-5/8"
H: 6-5/8"

Handle Quantity

2

Handle Type

Push Button

Deck Clearance

1-3/4"

Spout Reach

5"

Spout Height

2-3/8"

Spout Type

Fixed Spout

Valve Connection

1/2"-14 NPSM

Shipping Dimensions

L: 16"
W: 10"
H: 6"

Shipping Weight

6 LBS

ADA

Yes

Code Compliance

ASME A112.18.1
CSA B125.1
NSF 61
NSF 372
CEC Listed

Note

Cycle time: 2-25 seconds across a 20-80 PSI pressure range (0.35 - 2.2 GPM flow rate). Factory setting: 8-12 seconds at 60 PSI.

Cartridge Type

Ceramic Disc
