Elkay® -8"Centerset Concealed Deck Faucet 8"Arc Tube Spt 2"Lever Handles Side Spray Chrome-LK801AT08L2

DOWNLOADS

Elkay® commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.

Features


Category: 224239 | deck mount faucets | wall mounted faucets...

MasterFormat: Healthcare Equipment | Plumbing Fixtures | Commercial Faucets, Supplies, and Trim...


View Product Details From Manufacturer


Elkay®
1333 Butterfield Road
Suite 200
Downers Grove, IL 60515
Tel: (800) 476-4106

CustCare@Elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

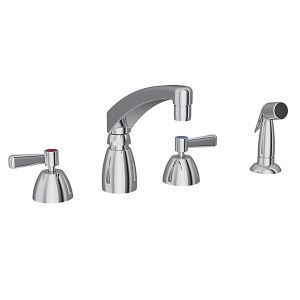

8"Centerset Concealed Deck Faucet 8"Arc Tube Spt 2"Lever Handles Side Spray Chrome-LK801AT08L2

Elkay® commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.

Features

  • ADA COMPLIANT: Faucet is ADA compliant
  • LEAD-FREE COMPLIANT: Certified and tested to NSF/ANSI/CAN 61 and 372 to meet all federal and state regulations for low or no-lead products
  • LOW FLOW: Includes water-saving features
  • SOLID BRASS CONSTRUCTION: Built for long-term durability
  • SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications
  • CONVENIENT SIDE SPRAY: Ideal for cleaning dishes or filling pots and vases from the counter


See More


Specifications

Specifications
Material

Chrome-plated Brass

Spray Type

Side

Installation Type

Deck-mount

Features

Low Flow
Solid Brass Construction
Spout Swing Restriction Pin

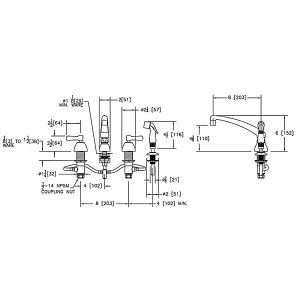

Dimensions

L: 12-3/8"
W: 10"
H: 8-3/4"

Handle Quantity

2

Handle Type

2" Lever Handle

Deck Clearance

3-1/8"

Spout Reach

8"

Spout Height

5-11/16"

Spout Type

Arc Tube

Valve Connection

3/8" Female Compression Hose Assembly

Shipping Dimensions

L: 12-3/16"
W: 7-3/8"
H: 4-3/8"

Shipping Weight

6 LBS

ADA

Yes

Code Compliance

ASME A112.18.1
CSA B125.1
cUPC
NSF 61
NSF 372
CEC Listed
IPC

Note

Replacement cartridge A70001 for cold, Replacement cartridge A70002 for hot

Cartridge Type

Quarter Turn Ceramic Disc
