Elkay® -8" Centerset - LK810GN08T4

DOWNLOADS

Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.

Features


Category: 224239 | deck mount faucets | fixture mounted faucets...

MasterFormat: Healthcare Equipment | Residential Faucets, Supplies, and Trim | Commercial Faucets, Supplies, and Trim...



Elkay®
1333 Butterfield Road
Suite 200
Downers Grove, IL 60515
Tel: (800) 476-4106

CustCare@Elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

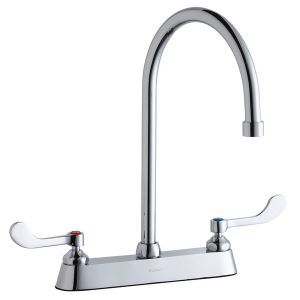

8" Centerset - LK810GN08T4

Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.

Features

  • ADA COMPLIANT: Faucet is ADA compliant.
  • LEAD-FREE COMPLIANT: Certified and tested to NSF/ANSI/CAN 61 and 372 to meet all federal and state regulations for low or no-lead products.
  • LOW FLOW: Includes water-saving features.
  • SOLID BRASS CONSTRUCTION: Built for long-term durability.
  • 3 FAUCET HOLES: Faucet designed to be installed using three faucet holes.
  • SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications.


See More


Specifications

Specifications
MaterialChrome-plated Brass
Spray TypeNone
Installation TypeDeck Mount
FeaturesLow Flow
Solid Brass Construction
Spout Swing Restriction Pin

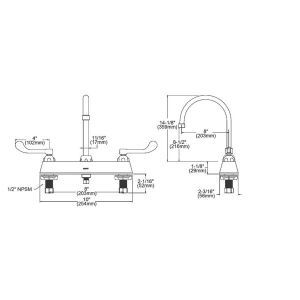

DimensionsL: 16"
W: 9-1/2"
H: 17-5/16"
Handle Quantity2
Handle Type4" Wristblade Handle
Deck Clearance8-1/2"
Spout Reach8"
Spout Height14-1/8"
Hole Drillings3
Application TypeFoodservice
Spout TypeGooseneck
Valve TypeQuarter Turn Ceramic Disc
Valve Connection1/2" NPSM Male
Flow Rate1.5 GPM
Shipping DimensionsL: 13-3/4"
W: 10-3/4"
H: 4-3/8"
Shipping Weight6 LBS
ADAYes
Code Compliance FaucetsADA & ICC A117.1
ASME A112.18.1/CSA B125.1
CEC
NSF 372 (lead free)
NSF 61
