Elkay® -8" Centers Wall Faucet 8" High Arc Spout 2" Lever Handle Inlet+Stop-LK940HA08L2H

DOWNLOADS

Elkay® commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.

Features


Category: 224239 | deck mount faucets | wall mounted faucets...

MasterFormat: Healthcare Equipment | Plumbing Fixtures | Commercial Faucets, Supplies, and Trim...


View Product Details From Manufacturer


Elkay®
1333 Butterfield Road
Suite 200
Downers Grove, IL 60515
Tel: (800) 476-4106

CustCare@Elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

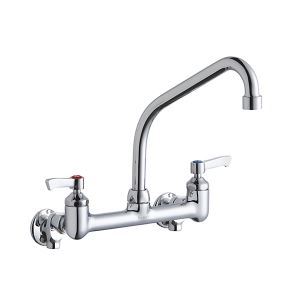

8" Centers Wall Faucet 8" High Arc Spout 2" Lever Handle Inlet+Stop-LK940HA08L2H

Elkay® commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.

Features

  • ADA COMPLIANT: Faucet is ADA compliant
  • LEAD-FREE COMPLIANT: Certified and tested to NSF/ANSI/CAN 61 and 372 to meet all federal and state regulations for low or no-lead products
  • LOW FLOW: Includes water-saving features
  • SOLID BRASS CONSTRUCTION: Built for long-term durability
  • INCLUDES VANDAL-RESISTANT AERATOR: Comes installed with 1.5 GPM water-saving, vandal-resistant aerator; 2.2 and .5 GPM aerator inserts also included
  • SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications
  • 1/2" ADJUSTABLE INLETS WITH INTEGRAL STOPS: Adjustable water inlets with shutoffs that stop water flow at the faucet for easy maintenance
  • 2 FAUCET HOLES: Faucet designed to be installed using two faucet holes


See More


Specifications

Specifications
Material

Chrome-plated Brass

Spray Type

None

Installation Type

Wall mount

Features

1/2" adjustable inlets with integral stops
Low Flow
Solid Brass Construction
Spout Swing Restriction Pin

Dimensions

L: 8"
W: 8"
H: 10-1/2"

Handle Quantity

2

Handle Type

2" Lever Handle

Deck Clearance

7-11/16"

Spout Reach

8"

Spout Height

10-1/2"

Spout Type

High Arc

Valve Connection

ShutOff Valve 1/2" NPT FM Inlt

Shipping Dimensions

L: 13-3/4"
W: 10-3/4"
H: 4-3/8"

Shipping Weight

6 LBS

Included With Product

Shut-off

ADA

Yes

Code Compliance

ASME A112.18.1
CSA B125.1
cUPC
NSF 61
NSF 372
CEC Listed
IPC

Note

1.5 GPM VR aerator installed with 2.2 and .5 GPM inserts included

Cartridge Type

Quarter Turn Ceramic Disc
