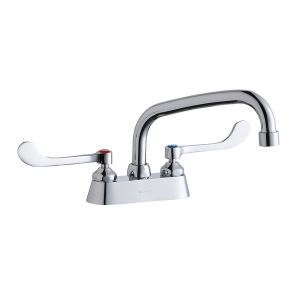

Elkay® -4" Centerset - LK406AT08T6

DOWNLOADS

Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.

Features


Category: 224239 | deck mount faucets | fixture mounted faucets...

MasterFormat: Healthcare Equipment | Residential Faucets, Supplies, and Trim | Commercial Faucets, Supplies, and Trim...


View Product Details From Manufacturer


Elkay®
1333 Butterfield Road
Suite 200
Downers Grove, IL 60515
Tel: (800) 476-4106

CustCare@Elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


4" Centerset - LK406AT08T6

Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.

Features

  • ADA COMPLIANT: Faucet is ADA compliant.
  • LEAD-FREE COMPLIANT: Certified and tested to NSF/ANSI/CAN 61 and 372 to meet all federal and state regulations for low or no-lead products.
  • LOW FLOW: Includes water-saving features.
  • SOLID BRASS CONSTRUCTION: Built for long-term durability.
  • INCLUDES TWO AERATORS: Comes installed with 1.5 GPM water-saving aerator; optional 2.2 GPM aerator insert also included.
  • SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications.
  • 2 FAUCET HOLES: Faucet designed to be installed using two faucet holes.
  • 4" HOLE SPREAD: Faucets designed to be installed using 4" hole spread.


See More


Specifications

Specifications
MaterialChrome-plated Brass
Spray TypeNone
Installation TypeDeck Mount
FeaturesLow Flow
Solid Brass Construction
Spout Swing Restriction Pin

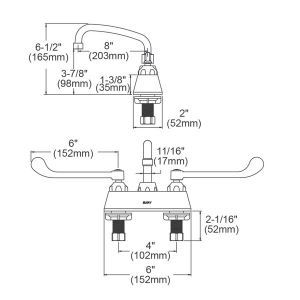

DimensionsL: 16"
W: 9-1/2"
H: 8-7/8"
Handle Quantity2
Handle Type6" Wristblade Handle
Deck Clearance3-7/8"
Spout Reach8"
Spout Height6-1/2"
Hole Drillings2
Application TypeScrub + Handwash
Spout TypeArc Tube
Valve TypeQuarter Turn Ceramic Disc
Valve Connection1/2" NPSM Male
Flow Rate1.5 GPM
Shipping DimensionsL: 12-3/16"
W: 7-3/8"
H: 4-3/8"
Shipping Weight5 LBS
ADAYes
Code Compliance FaucetsADA & ICC A117.1
ASME A112.18.1/CSA B125.1
CEC
NSF 372 (lead free)
NSF 61
Note1.5 GPM flow regulator installed (2.2 GPM flow regulator also included with faucet)
