UC-750 V-Groove Panel
The 1/2-inch soffit panel system is mechanically attached and installed in a sequential pattern. All panel systems are to be roll formed to specified dimensions and tolerances and shall be accurately formed.
Features
- 35-year warranty on coil-coated Kynar 500®/Hylar 5000®

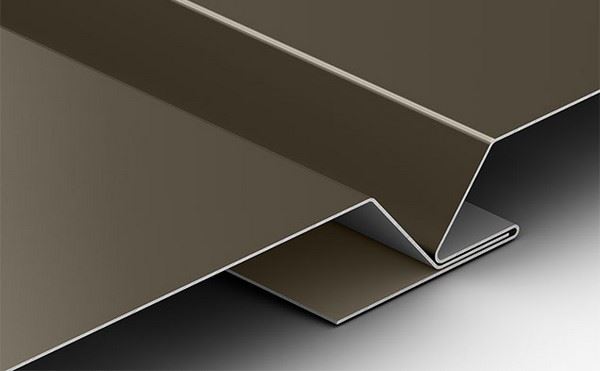

- Male/female interlocking joint design
- Optional vented profile
- Sequential installation
- Lightweight
Material Options
- Coil anodized aluminum
- Coil-coated aluminum (20-year warranty)
- Panel width 12″
- Panel width 16″
- Post-painted aluminum skins (short run, custom colors) 0.063 to 0.125
Finish Options
- Batch anodizd
- Coil-anodized
- Custom coatings
- Kynar 500®/Hylar 5000® high performance fluorocarbon resinous coatings
Additional Information
- Length restrictions apply
- Oil canning is not a cause for rejection
- Panel edges must be straight lines (no curves)
- Panels cannot be radiused
- Panels cannot be tapered
- Panels may exhibit out of plane behavior
- Panels may not be curved
