Engineered Fill
Elastizell Engineered Fill
A Range of Geotechnical Applications
Geotechnical applications of Elastizell EF are as broad as the designer’s imagination. Elastizell EF has a typical density of 25-30 pcf. Although it is only 1/4 the weight, it is considerably stronger than compacted soil. Six common applications include the following:

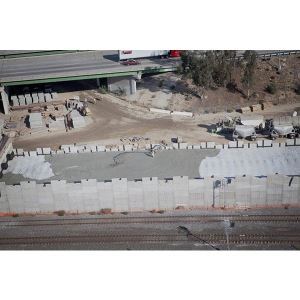

- Bridge Approach Fills / Fills Between Retaining Walls
- Roadway Fills / Load Balancing / Landslip Repair Fills
- Weight Reducing Fills / Culvert Fills / Lightweight Levee Structures
- Foundation Fills / Landscaping and Plaza Fills
- Void Fills / Pipeline Fills / Mine Fills
- Pressure Reducing Fills / Storage Silo Fills
General Advantages of Elastizell EF
- Elastizell EF is designed for the specific site and soil conditions of each project.
- Elastizell EF is customized with different densities and strengths as required by the specific application.
- Elastizell EF is a load-reducing material over poor soils. Example: For each 1’ of existing soil removed, 4’ of Elastizell EF may be added without increasing the load.
- Elastizell EF flows easily into all spaces eliminating potential voids.
- Elastizell EF is easily excavated.
- Initial costs are competitive and life (maintenance) costs are low.
- Elastizell Corporation of America offers technical support and recommendations.
Elastizell EF is Environmentally Friendly: Elastizell EF is a 100% cementitious material and is as friendly as other concrete structures.
Cost Effective and Time Saving: Elastizell EF is a proven and permanent solution. Speed of installation, reduced excavation, reduced fill volume, and permanence contribute to its cost effectiveness.
Because Elastizell EF is cast-in-place, traffic can often be maintained, thus minimizing traffic interruption. Compaction of standard lightweight fills often leads to time-delaying surprises as underlying soils are disturbed causing potential for unexpected settlements. Elastizell EF does not require compaction; minimized excavation depths mean less soil disruption.
