East Coast Lightning Equipment, Inc. -PGC1B, Cast Bronze Pedestal Clamp

DOWNLOADS

UL Listed

Cast bronze pedestal clamp accommodates cross runs without adding an additional connector. Fits either square or round pedestal legs ranging from 1 to 1-5/8 inches.


Category: 13 46 00 | 134600 | building lightning protection...

MasterFormat: Lightning Protection Systems


View Product Details From Manufacturer


East Coast Lightning Equipment, Inc.
24 Lanson Drive
Winsted, CT 06098
Tel: (888) 680-9462
Fax: (860) 379-2046

info@ecle.biz

https://ecle.biz/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

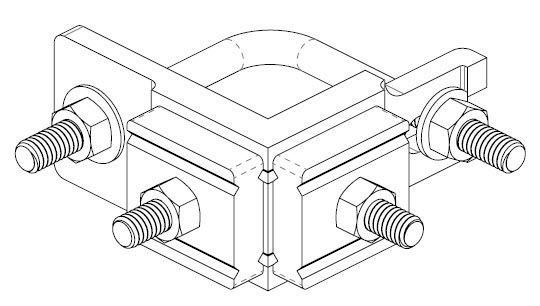

PGC1B, Cast Bronze Pedestal Clamp

UL Listed

Cast bronze pedestal clamp accommodates cross runs without adding an additional connector. Fits either square or round pedestal legs ranging from 1 to 1-5/8 inches. Two adjustable bolt pressure cable holders can accommodate wire sizes #8 solid to 2/0 stranded. Includes 5/16-18 stainless steel "L" bolt, nuts and washers. 3-1/2 x 3-1/2 in. (8.9 x 8.9 cm); approximately 16.2 oz. (459 g).


See More


Specifications

Specifications
MaterialBronze
Weight16.2 oz - 459 g
Dimensions3-1/2" x 3-1/2"
Pedestal SizeSquare or Round 1" to 1 -5/8" in.
Wire Size Range#8 to 2/0 AWG
