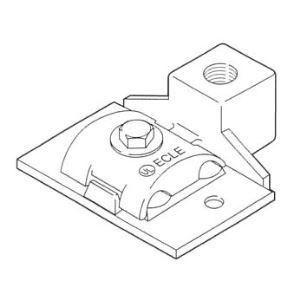

264_defaultImage.jpg image

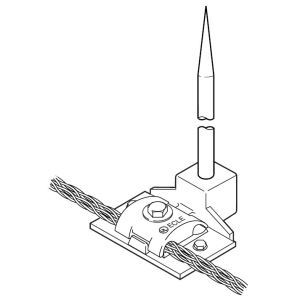

264_0_additionalImage.jpg image

East Coast Lightning Equipment, Inc. -BB4A, Top Mount Bolt Base

DOWNLOADS

UL Listed

A cast aluminum base with 2-way bolt pressure cable holder. Is suitable for parapets, flat machinery and other surfaces where mechanical mounting is possible. 5/16-18 stainless steel bolt and washer. 2-13/16 x 2-15/16 in.


Category: 13 46 00 | 134600 | industrial lightning protection...

MasterFormat: Lightning Protection Systems | Lightning Protection for Structures


View Product Details From Manufacturer


East Coast Lightning Equipment, Inc.
24 Lanson Drive
Winsted, CT 06098
Tel: (888) 680-9462
Fax: (860) 379-2046

info@ecle.biz

https://ecle.biz/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

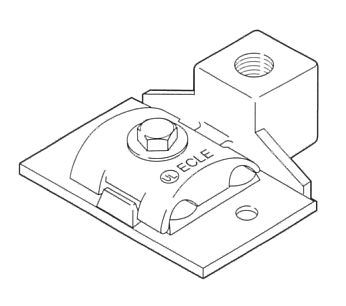

BB4A, Top Mount Bolt Base

UL Listed

A cast aluminum base with 2-way bolt pressure cable holder. Is suitable for parapets, flat machinery and other surfaces where mechanical mounting is possible. 5/16-18 stainless steel bolt and washer. 2-13/16 x 2-15/16 in. (71.44 x 7 x 4.61 mm); Approximately 4 oz. (113 g). Use suffix 1 /2 or 5/8 inch to denote air terminal size.


See More


Specifications

Specifications
MaterialAluminum
Available Thread Size1/2 or 5/8 in.
Weight4.2 oz (120 g)
Dimensions2-13/16 x 2 15/16 in. (7.14 x 7.46 cm)
