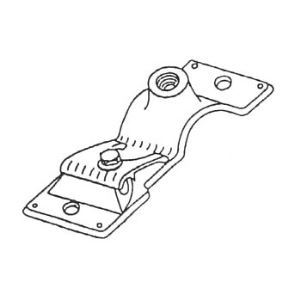

East Coast Lightning Equipment, Inc. -BB2B, Malleable Top Mount Bolt Base

DOWNLOADS

UL Listed

A cast bronze malleable base for use on sloped parapets and other pitched surfaces. Can be formed to contours. Has a 1-way bolt pressure cable holder. 5/16-18 stainless steel bolt and washer. 5-1/4 x 2 in. (13.3 x 5.1 cm); approximately 13 oz. (369 g).


Category: 13 46 00 | 134600 | industrial lightning protection...

MasterFormat: Lightning Protection Systems | Lightning Protection for Structures


View Product Details From Manufacturer


East Coast Lightning Equipment, Inc.
24 Lanson Drive
Winsted, CT 06098
Tel: (888) 680-9462
Fax: (860) 379-2046

info@ecle.biz

https://ecle.biz/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

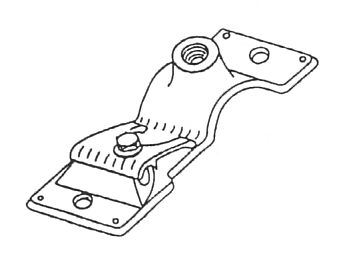

BB2B, Malleable Top Mount Bolt Base

UL Listed

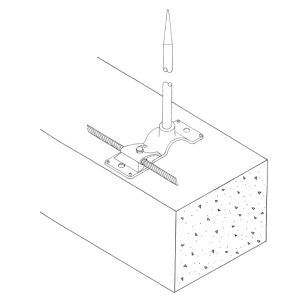

A cast bronze malleable base for use on sloped parapets and other pitched surfaces. Can be formed to contours. Has a 1-way bolt pressure cable holder. 5/16-18 stainless steel bolt and washer. 5-1/4 x 2 in. (13.3 x 5.1 cm); approximately 13 oz. (369 g). Use suffix 3/8, 1/2 or 5/8 inch to denote air terminal thread size.


See More


Specifications

Specifications
MaterialBronze
Available Thread Size3/8,1/2 or 5/8 in.
Weight13 oz. (369 g)
Dimensions5-1/4 x 2 in. (13.3 x 5.1 cm)
