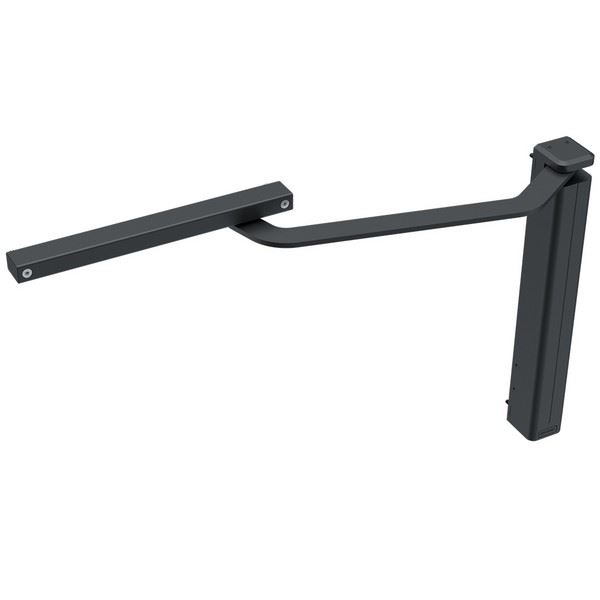

SlimLine Hydraulic Vertical Gate Closer - DC622G

The DC622G hydraulic gate closer features a minimal, vertical design and offers exceptional versatility with 14 mounting options, accommodating metal gates and brick and concrete walls and face or center mounted hinges. Its adjustable closing and latch speeds, 3D Cam-Motion® Technology, and ability to self-close gates up to 330 lbs (150kg) make it ideal for retrofits. The closer is ADA-compliant on gates 32” (813mm) or wider. Designed for all-weather performance and easy, weld-free installation, the DC622G is both robust and user-friendly.

Features

Minimal, slimline design, mounted vertically

Versatile Installation:
• Can be mounted on pillars or walls, on both the push and pull sides of the gate.
• Ideal for retrofits and new construction.
Versatile Compatibility: Compatible with face or center mounted hinges and almost any pedestrian
and security gate.
Maximum Gate Size/Weight: For gates up to 4’ 3” wide and 330 lbs.
User-Friendly Installation: No welding required, making setup quick and easy.
Adjustable Speeds: Independently adjustable closing and latch speeds for customized operation.
Easy Speed Adjustments: Side-facing metal vales for easy access.
All-Weather Performance: Consistent operation across a wide range of temperatures.
Enhanced Safety: Pinch-free guide rail for added safety.
ADA suitable for gates with 34” or greater widths.
Includes: all necessary installation hardware, including a guide rail, mounting screws, and rivets.
