MagnaLatch® Panic Bar + Access Kit

MagnaLatch® Panic Bar or MagnaLatch® Access Kit brings you magnetic latching with zero mechanical resistance, wide gate‑gap tolerance, UV stabilised, outdoor‑ready durability, and ADA‑friendly operation.

The lockable MagnaLatch®Access Top Pull attachment will deliver a complete, corrosion‑resistant, public‑safety solution for modern gate systems.

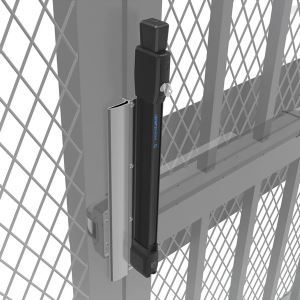

World’s First, Magnetic Latching Panic Bar

  • Magnetic latching – no mechanical resistance
  • Magnet allows for greater intraday movement – not usually found in internal use panic bars
  • For internal or external use – corrosion resistant components
  • Horizontally adjustable up to 13mm (½”)
  • Gate gap variance: min 11mm to max 24mm
  • Suitable for ADA standards
  • Australian Made

MagnaLatch® Access (attachment)

  • Lockable, Top Pull latch attachment
  • Provides a corrosion resistant, unsurpassed public safety system
  • ACCESS universal release knob, for easy operation and child safety
  • Latch can be locked when not in use


See More


Specifications

Specifications
BrandMagnaLatch®
Product CodeML3PB36RTPLA
Gate ApplicationPool Gate, Child Safety Gate, Front Gate, Side Gate, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate
Gate MaterialAluminium, Steel/Ornamental Iron, Wood, Vinyl/PVC
Approx Gate Size90cm W x 1.5m H (3ft x 5ft)
Gate Frame/Post ShapeSquare-to-Square
Min Post Size50mm+ (2")
Ideal Gate Gap19mm (¾")
Fixing MethodScrew-On
Colour/FinishBlack
Lock TypeRekeyable (to match door locks)
