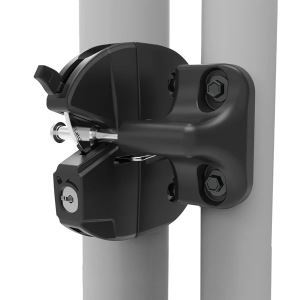

LokkLatch® Round S3 Gate Latch

Fits to diameters: Gate frame: 35mm & 41mm. Post: 48-51, 60 & 73mm Gate frame: 1⅜” & 1⅝” Post: 1⅞”-2”, 2⅜” & 2⅞” For use on round-posted fences and gate frames around homes and gardens. Ideal for chainlink-style gates. Key-lockable LokkLatch® is stylish and provides a high degree of vertical and horizontal adjustment. It can accommodate gate gaps of up to 50mm. The latch comes with adapters to fit post diameters from 48-73mm, and the striker fits gate frame diameters of 35mm and 41mm. An optional ‘External Access Kit’ (push-button release) is available for operating the latch from the street side of the gate, but note that locking the External Access button does not lock the main latch simultaneously.

Round Post Latch + External Access Button (EAB)
• Designated model for round posts

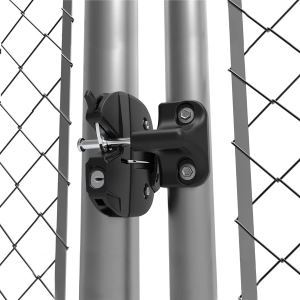

• Ideal for chain link gates like tennis courts, sports grounds etc.

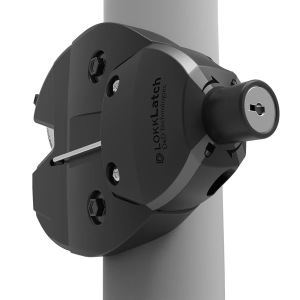

• Key-lockable convenience
• Operates and locks from both sides of the gate
• Optional: push-button External Access Button (EAB)
Note:Locking the External Access Button does not simultaneously lock the Main Latch
• Super-strong polymer construction - Won’t rust, bind, sag or stain
• 316-grade stainless steel components
• Vertically and horizontally adjustable
• Includes adapters for various post dimensions below
• Round Gate Post Ø: 1⅜” & 1⅝”-1⅞”
• Round Fence Post Ø: 1⅞”-2”, 2⅜”, 2⅞-3”


See More


Specifications

Specifications
BrandLokkLatch®
Product CodeLLABRND
Gate ApplicationFront Gate, Side Gate, Pedestrian Gate, Driveway Gate - Single, Pet Gate, Privacy Gate
Gate MaterialChain Link
Approx Gate SizeAny Size
Gate Frame/Post ShapeRound-to-Round
Min Post SizeRound
Ideal Gate GapSquare-to-Square
Fixing MethodScrew-On
Colour/FinishBlack
Lock TypeNon Rekeyable
Round Post Diameter

Gate frame: 1 5/8", 1 3/8 Post: 1 7/8", 2 3/8" & 2 7/8"
