Rolling Counter Door - Roll Up Service Counter Doors

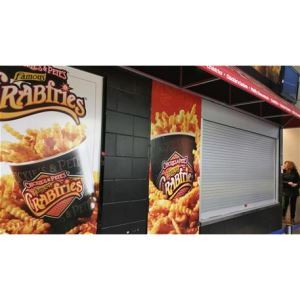

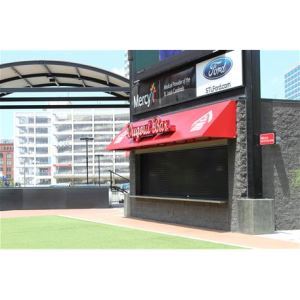

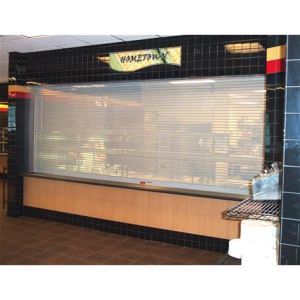

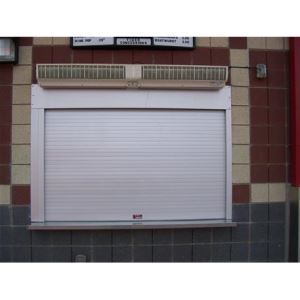

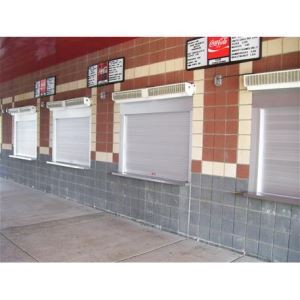

Counter top rolling doors are made from interlocking slats of formed steel, aluminum or stainless steel that will roll up to store in coil above a wall opening. They provide security against entry and weather protection at both interior and exterior wall service openings. These doors are commonly utilized as cafeteria roll up doors, bar top garage doors, concession stand roller doors, ticket booth security doors, and more.

These doors are manufactured with smaller, more aesthetically pleasing components and built to exact opening specifications using compact guides, slats, brackets and hoods, they offer a more streamlined look than traditional rolling doors. When a full door with compact door components is desired, full-height units are available.

When Do You Need A Rolling Service Counter Door?

When a service opening is present, rolling counter doors are a great choice for use in cafeterias, stadiums, arenas, hospitality and educational facilities, public spaces, healthcare offices, and many other locations. Roll up counter shutters offer a custom appearance (with no exposed edges) and fast installation, slip-in units arrive ready to be set into existing walls. Units may be used in masonry or drywall openings from 4" to 13" thick.

When space is at a minimum, we offer an alternate design, with concealed tubular motors that provide a solution for strict dimensional limitations around the header or aesthetic requirements that lend themselves to its smaller, compact design.

Custom Roll Up Doors For Any Need

All counter doors and counter shutter and custom built to your specifications. They can be designed to easily slip into existing openings as a complete package. Even with their more compact components, our rolling counter doors still offer heavy duty design that is engineered to take daily use for a low maintenance, long life solution.
The rolling counter door can be configured to withstand windload requirements of up to 40 PSF and impact ratings of up to 50 FPS.

Service Counter Door Finishes

Roll up counter shutters have multiple finishes and material options available so not only do you get a low lifetime cost of ownership, but one that will add appeal and is aesthetically pleasing in any environment.

Overview

Sizes

  • Standard construction up to 21’ wide, 10’ high (limit of 180 square feet)
  • Wind load construction of up to 14' wide, 10' high (limit of 140 square feet)

Usage

Our Rolling Counter Shutters are constructed for daily use.

If your opening requires compliance to fire or building codes, visit our Fire Rated Counter Fire Shutters.

Materials and Finishes

  • .040” thick clear anodized aluminum
    • Medium, dark or black anodized finish
  • 22 gauge galvanized steel
    • Exclusive GalvaNex™ finish in Gray, Tan or White
  • 22 gauge 304 series stainless steel
    • #4 finish

*Finish/gauge availability varies. Consult your sales representative for detailed finish/gauge availability.

Operations

Our Rolling Counter Shutters can open by motor, hand-crank, or push-up operation, depending on size and/or weight.

Tubular Motors:

Concealed tubular motors provide a solution for strict dimensional limitations around the header or aesthetic requirements that lend themselves to its smaller, compact design.

EverGard Tube Motor:

The EverGard Tube Motor operator is ideal for openings with tight clearances around the coil area, when you need to neatly conceal the drive components without adding a bulky motor cover and for door control during a loss of power.

Options

Sensing Edge

Sensing Edge

Smoother Installation and easy maintenance:

Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to overset the bottom door limit. The new sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

Stronger weather protection:

Featuring flexible 1" sealing fins, our sensing edges withstand the elements, providing maximum protection

Aesthetics

Omni Powder Coat

Omni Powder Coat now allows you to match your rolling steel doors with select Clopay sectional doors to create a unified and refined style.

Omni Powder Coat is available in:

  • Commercial Tan
  • Commercial Gray
  • Charcoal
  • Standard White
  • Chocolate Brown
  • Black

AtmoShield™ Powder Coating

Textured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

SpectraShield™ Powder Coating

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Vinyl Graphics

Add durable, full-color images to your curtains and hoods. Great for school logos and turning unused door space into profitable sponsorship opportunities in stadiums, amusement parks and retail stores.

Vision Windows

Improve aesthetics and visibility with one- or two-way windows incorporated in the curtain.

Performance Upgrades

LED Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Magic Switch

A touchless activation device designed to open and close doors with the wave of a hand. It's compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. The Magic Switch is easy to retrofit in an existing application and features a clean, stainless steel face plate.

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Safety and Protection

SafetyGard UL325 Approved Light Curtain

A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Wind Load

Can be configured to withstand the full range of specific wind load requirements including missile impact ratings.

Unique Design Solutions

Integral Frame and Sill

Our Rolling Counter Shutters with Integral Frame and Sill are designed with reduced coil, bracket and header size (8" minimum) to fit tight clearances.

Countertops

Countertops are available for a complete counter shutter closure solution, and can be UL rated.

Mullions

There are multiple mullion options - corner, fixed and removable.

Sloping or Irregular Openings

Our special bottom bar designs can address these conditions.

SmartSync Wireless Safety Edge

SmartSync™ Wireless Safety Edge & Wireless Remote Controller

The Smartsync™ Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening.

The Smartsync™ Wireless Remote comes equipped with an anti-shock design for industrial handling. This heavy-duty remote is compatible with most motor-operated doors, grilles or counter door.*

*Not compatible with NEMA 7/9 operators
