Cornell -Exam Room Counter Door

DOWNLOADS

The Exam Room Counter Door allows for healthcare and institutional facilities to utilize the same exam room for medical and behavioral patients back to back.


Category: 083300 | coiling counter shutters | coiling security shutters...

MasterFormat: Specialty Doors and Frames | Coiling Doors and Grilles | Coiling Counter Doors


Related Products

Overview


Exam Room Counter Door

The Exam Room Counter Door allows for healthcare and institutional facilities to utilize the same exam room for medical and behavioral patients back to back. Using the exam room counter door to create a multi-purpose room saves the healthcare provider money and resources while providing needed security for patients.

Exam Room Counter Door is made to be durable. It comes standard with a steel curtain for optimal strength. In the event of brunt force, impact resistant guides and end locks ensure the curtain will stay within the guides.

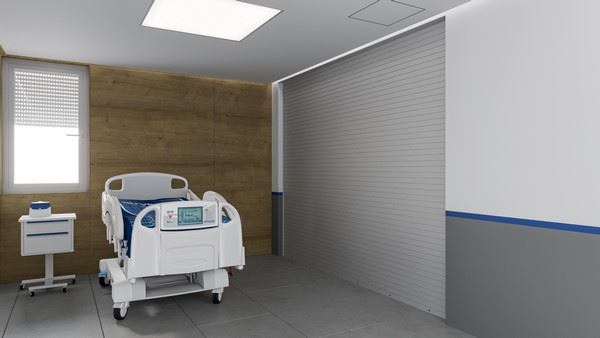

The fascia side motor is above the ceiling with the coil above the medical cabinet creating a completely flat surface facing the patient's room to cover potentially dangerous equipment. All fasteners are concealed and the bottom bar is flat, creating an anti-ligature space.
Exam Room Counter Door meets the ASHRAE/Facility Guidelines Institute (FGI) recommendations for all exam room finishes to be impact, tamper and ligature resistant.

Technical Detail Information:

Exam Room Counter Door Brochure & Details Sheet Architectural Assistance

Overview

Usage

Our Exam Room Counter Doors are constructed for daily use.

Standard Materials & Finishes

Counter-Balance Shaft - Made of steel, supports curtain and contains torsion springs for assisting operation

Brackets - Steel with powder coating to match curtain

Tubes & Guides - Two piece steel guides attached to tubes that are recessed into drywall

Curtain - Interlocking roll-formed flat-faced slats made of Galvanized steel with GalvaNex™ polyester enamel finish in gray, tan or white.

End Locks - Riveted to the end of each slat, they are designed to ensure that the curtain is held within the guides in the event of impact.

Bottom Bar - Single angle flat bottom bar in steel with powder coating to match curtain creates a smooth transition.

Operations & Structural Requirements

  • Motor operation is required
  • Product is mounted to tubes that are recessed into the drywall along with the coil, eliminating ligature points.

Options

Sensing Edge

Sensing Edge

Smoother Installation and easy maintenance:

Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to overset the bottom door limit. The new sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

Stronger weather protection:

Featuring flexible 1" sealing fins, our sensing edges withstand the elements, providing maximum protection

Aesthetics

Aesthetics

SpectraShield™ Powder Coat Finish

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Omni Powder Coat

Omni Powder Coat now allows you to match your rolling steel doors with select Clopay sectional doors to create a unified and refined style.

Omni Powder Coat is available in:

  • Commercial Tan
  • Commercial Gray
  • Charcoal
  • Standard White
  • Chocolate Brown
  • Black

Materials & Finishes

Materials & Finishes

  • 16 gauge extruded aluminum in clear, color anodized and powder coat.
  • Stainless Steel - 300 series in #4 finish.
  • SpectraShield powder coating in more than 180 colors.
  • For a more durable finish, consider upgrading to our Galvanex™ Ultra™ or SpectraShieldR Ultra™ powder coat finish.
