CENTRIA -Exposed Fastener Panels - Super-Rib - Horizontal & Vertical

DOWNLOADS

Super-Rib is our strongest panel which allows for longer spans and a reduction in the number of supports. As a wall panel, Super-Rib side laps in the low cell. As a roof panel, Super-Rib is inverted so that the side lap occurs in the high cell.


Category: exterior cladding | facade panels | retrofit wall panels...

MasterFormat: Roofing and Siding Panels | Wall Panels | Metal Wall Panels...


View Product Details From Manufacturer


CENTRIA
1550 Coraopolis Heights Rd.
Suite 500
Moon Township, PA 15108
Tel: (800) 759-7474
Fax: (412) 299-8317

info@centria.com

https://www.centria.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

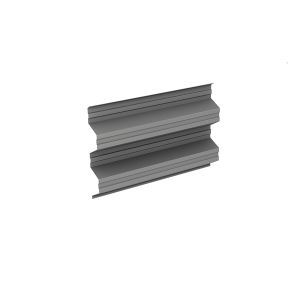

Exposed Fastener Panels - Super-Rib - Horizontal & Vertical

Super-Rib is our strongest panel which allows for longer spans and a reduction in the number of supports. As a wall panel, Super-Rib side laps in the low cell. As a roof panel, Super-Rib is inverted so that the side lap occurs in the high cell. All Exposed Fastener wall panels may be installed in a variety of rainscreen applications to form a complete wall system. Systems may vary from an uninsulated screenwall to MetalWrap® Series, an insulated composite backup panel system with Advanced Thermal and Moisture Protection (ATMP®). Refer to CENTRIA Technical bulletin TB-05-10 for all rainscreen applications.


See More


Specifications

PANEL LENGTHPANEL WIDTHPANEL DEPTHSURFACE FINISHSUBSTRATES

Standard:

5′ [1.52m] - 40′ [12.19m]

20’ [6.10m] max for aluminum

24” [610mm]

4” [102mm]

Standard: Smooth

Optional: Embossed

Standard:

22 - 18 gauge G-90 Galvanized Steel

Optional:

Aluminum
