CENTRIA -Exposed Fastener Panels - Econolap 3/4" - Horizontal & Vertical

DOWNLOADS

Econolap 3/4”profile offers a more pronounced corrugation and increased span capability over most corrugated panels. Econolap 3/4” side laps in the high cell when used as a wall or roof panel.


Category: exterior cladding | facade panels | retrofit wall panels...

MasterFormat: Roofing and Siding Panels | Wall Panels | Metal Wall Panels...


View Product Details From Manufacturer


CENTRIA
1550 Coraopolis Heights Rd.
Suite 500
Moon Township, PA 15108
Tel: (800) 759-7474
Fax: (412) 299-8317

info@centria.com

https://www.centria.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

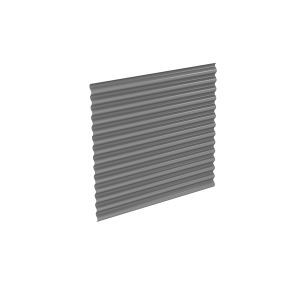

Exposed Fastener Panels - Econolap 3/4" - Horizontal & Vertical

Econolap 3/4”profile offers a more pronounced corrugation and increased span capability over most corrugated panels. Econolap 3/4” side laps in the high cell when used as a wall or roof panel. All Exposed Fastener wall panels may be installed in a variety of rainscreen applications to form a complete wall system. Systems may vary from an uninsulated screenwall to MetalWrapTM Series, an insulated composite backup panel system with Advanced Thermal and Moisture Protection (ATMP®). Refer to CENTRIA Technical bulletin TB-05-10 for all rainscreen applications.


See More


Specifications

PANEL LENGTHPANEL WIDTHPANEL DEPTHSURFACE FINISHSUBSTRATES

Standard:

5′ [1.52m] - 40′ [12.19m]

20’ [6.10m] max for aluminum

34-2/3” [881mm]

3/4” [19mm]

Standard: Smooth

Optional: Non-Directional Embossing

Standard:

24 - 18 gauge G-90 Galvanized Steel

Optional:

Aluminum

Stainless Steel
