Camden Door Controls -CX-PS13 V3 Variable Output Linear Power Supply

DOWNLOADS

Camden's low cost CX-PS13 linear power supply is designed to provide regulated low voltage power for electrified locks, MProx™ card access systems, washroom control packages and other electronic devices. A 120 VAC transformer with a 6 to 26 VAC output is required.


Category: 087800 | door controllers | electrical controls...

MasterFormat: Hardware | Access Control Hardware | Electrical Controls and Relays...


View Product Details From Manufacturer


Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

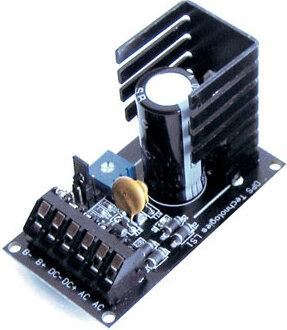

CX-PS13 V3 Variable Output Linear Power Supply

Camden's low cost CX-PS13 linear power supply is designed to provide regulated low voltage power for electrified locks, MProx™ card access systems, washroom control packages and other electronic devices. A 120 VAC transformer with a 6 to 26 VAC output is required.

FEATURES

  • Low cost linear power supply
  • Compact board-only design
  • Self-resetting smart fuse protection
  • Input voltage: 6-26 VAC, depending on output voltage selected
  • Input voltage transformer required, see manual for specification
  • 3 year warranty


See More


Specifications

SPECIFICATIONS
Voltage:6-26 VAC
Output Voltage:6, 12, 24 VDC Selectable or
2-24 VDC (if ADJ is selected)
Output Protection:PPTC Resettable Fuse
Output Power:800 mA, 200 mA Charging Current
Ripple:< 40 mV
Efficiency:12 VDC = 85%
24 VDC = 90%
Dimensions:2-3/4"L x 1-1/2"W x 1-3/4"H
(69mm x 38mm x 46mm)
MODELS

Model

Description

CX-PS13V3

Variable Output Linear Power Supply

Dimensions: 3.25"L x 3.75"W x 2.25"H

Weight: 0.22lbs.

UPC:670454160423

Country of Origin:Canada
