CV-603 Series (MProx-BLE) 2 Door Bluetooth Access Control System

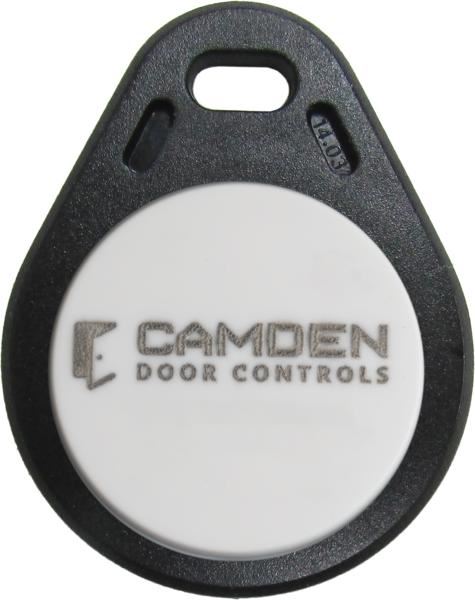

CV-603 Series is an app-based wireless Bluetooth® managed access control system designed to provide maximum flexibility in small door and gate applications and comes ready to support each system user with the card security FOB, or smartphone credential they want. The intuitive configuration app is available for Apple® and Android® Protocol, with easy-to-use system set-up, user administration, downloadable audit trail, and data back-up. Now featuring optional Virtual Remote License Keys to support smartphone credentials.
The controller supports low and clone resistant high-frequency credentials, and various card reader Wiegand protocols; 26, 30, 34, and 37-bit. Card readers encryptions that use Wiegand protocols such as HID Prox(R), HID iClass(R), MiFare(R), and DESFire(R) can be wired to the controller.
The CV-603 controller provides control for two doors including inputs for readers, door position switch and REX device and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications.
FEATURES
- No PC required. Programmed via smartphone Bluetooth(R) App
- 2,000 User Capacity
- Built-in Bluetooth® mobile credentials option
- Wiegand Reader protocol - 26, 30, 34 and 37 bits
- Common Alarm Relay - Trigger remote devices
- Anti-pass back - Higher level of security
- Sensor Input - For door position switch or vehicle loop detector
- Form C relays - Fail-safe or Fail-secure electric locks
- Built-in 433 Mhz. key fob receiver - used with CX-TXM-2 two button transmitters
- Encrypted rolling code and protected AES128 transmission of transmitters
- Operator Security Levels - 5, configurable
- 3 year warranty
