CM-9600/9610 Illuminated Piezoelectric Push/Exit Switch

CM-9600 is single gang width (2-3/4") and the CM-9610 is only 1" & 3/4" wide, perfect for door frames or narrow areas. The large 1" round diameter button is easy to activate. Illumination and power relay is 12 to 24 VDC. Switch illumination is jumper selectable and may be set for On, Off, Green to Red, Red to Green or non-lit operation. Field selectable for N/O or N/C contact output and fail safe/fail secure operation.

Note: Not recommended for control of automatic doors.

FEATURES

Rugged stainless steel face plate
Red and/or green illumination
Fail safe / non fail safe selectable
N/O & N/C outputs
Integrated adjustable 40 second timer
Lifetime warranty

See More

See Less

Specifications

SPECIFICATIONS

Voltage:	12/24 VDC
Contact Rating:	2 A @ 30 VDC
Contact Type:	1 x N/C, 1 x N/O
Time Delay:	1-40 seconds
Temp Range:	-40°F to +180°F (-40°C to +82°C)
Dimensions:
Single Gang Faceplate:	4-1/2” x 2-3/4” x 1-1/2” (114mm x 70mm x 38mm)
Narrow Faceplate:	4-1/2” x 1-3/4” x 1-1/2” (114mm x 45mm x 38mm)
Std. Finish:	US32 / C32D

MODELS

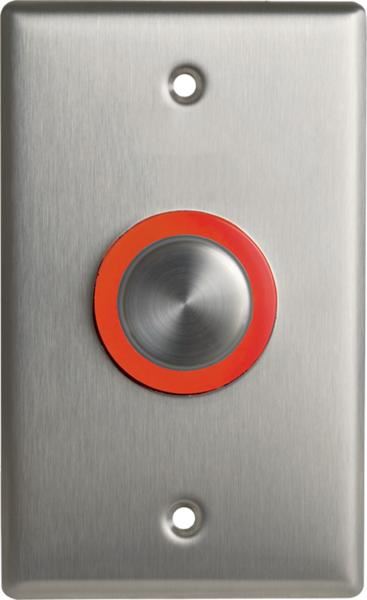

Single Gang Faceplate
	CM-9600	Illuminated piezoelectric push button, blank Dimensions: 2.5"L x 3.25"W x 4.75"H Weight: 0.45lbs. UPC:670454156938 Country of Origin:USA

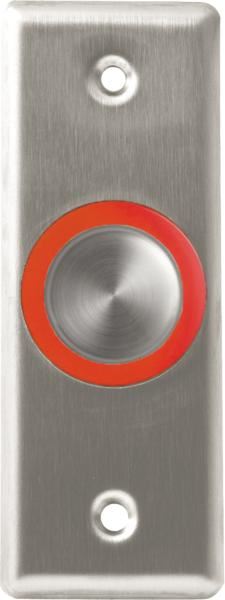

Narrow Faceplate
	CM-9610	Illuminated piezoelectric push button, blank Dimensions: 2.5"L x 3.25"W x 4.75"H Weight: 0.4lbs. UPC:670454158574 Country of Origin:USA
Remote Activation/Control
	CM-9600/C	Cable for remote activation/control of switch LED Dimensions: "L x "W x "H Weight: lbs. UPC:670454165947 Country of Origin:USA

OPTIONS & FINISHES

Faceplate Graphic Options
	CM-xxx/3	Add /3 to model # for 'PUSH TO OPEN', black graphics
	CM-xxx/3F	Add /3F to model # for 'POUSSEZ POUR OUVRIR', black graphics
	CM-xxx/3S	Add /3S to model # for 'EMPUJE PARA ABRIR', black

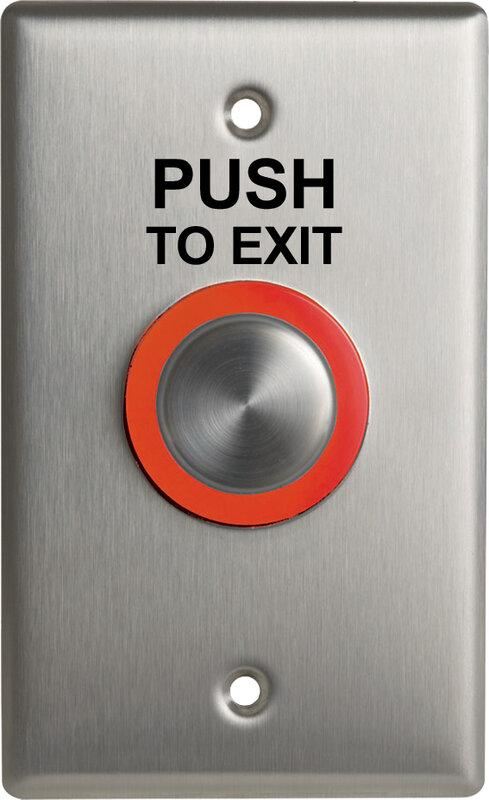

	CM-xxx/7	Add /7 to model # for 'PUSH TO EXIT'
	CM-xxx/7F	Add /7F to model # for 'POUSSEZ POUR SORTIR', black
	CM-xxx/8	Add /8 to model # for 'PUSH TO LOCK', black

COMPATIBLE MOUNTING BOXES

Mounting Boxes & Accessories: Narrow/Jamb

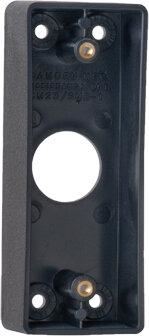

	CM-23	Surface Box, Standard Depth Narrow/Jamb boxes for 9610 series switches
Mounting Boxes & Accessories: Single Gang

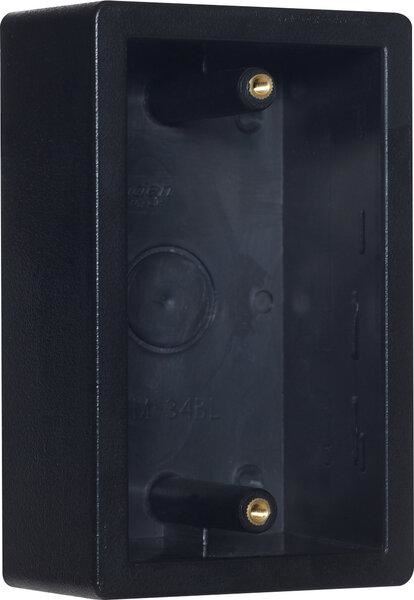

	CM-34BL	Surface Box, Standard Depth. Double wall Single Gang boxes for 9600 series switches

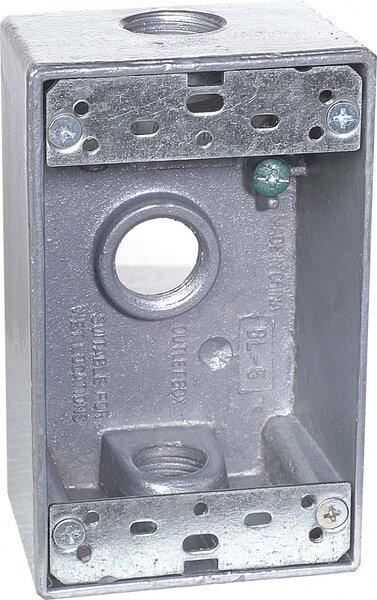

	CM-34AL	Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 9600 series switches

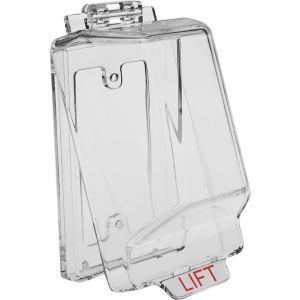

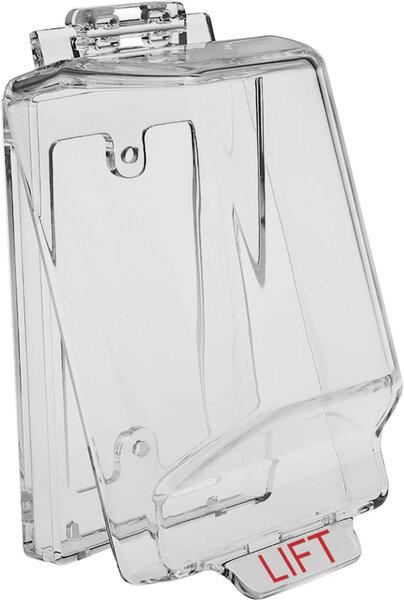

	CM-CPC1	Vandal and weather resistant clear lift cover Single Gang boxes for 9600 series switches
