Camden Door Controls -CM-9000/9100 7/8" Vandal Resistant Push/Exit Switch

CM-9000 and CM-9100 series push/exit buttons are all-metal construction and will withstand extreme attacks of all types. The buttons are countersunk in a heavy duty 1/4" thick brushed aluminum faceplate and available in single gang (2-3/4") or narrow stile (1-3/4") widths.

Category: access control hardware | push buttons | push plate door activators...

MasterFormat: Hardware | Door Hardware | Access Control Hardware

View Product Details From Manufacturer

Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

CM-9000/9100 7/8" Vandal Resistant Push/Exit Switch

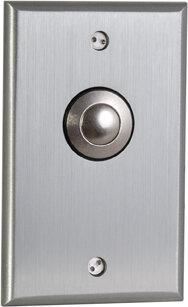

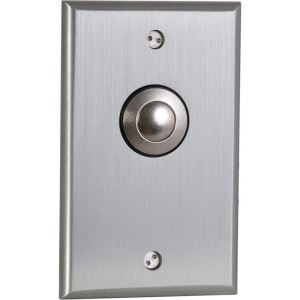

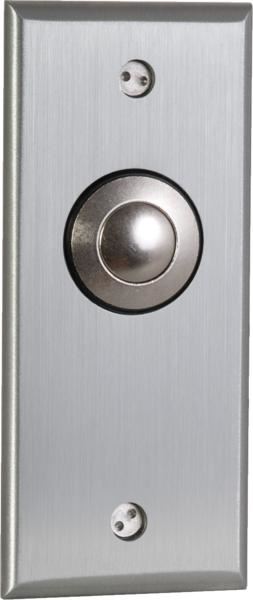

*CM-9000 product image shown

FEATURES

Steel button will withstand extreme attacks of all types
Button is countersunk in heavy 1/4" thick aluminum plate
Indoor or outdoor applications
Color coded 18 AWG leads, with spade connectors
Lifetime Warranty

See More

See Less

Specifications

SPECIFICATIONS

Contact Type:
CM-9080, CM-9180:	DPDT Momentary
CM-9090, CM-9190:	DPDT Maintained
Contact Rating:	6 A @ 30 VDC
Dimensions:
CM-9000 Series:	4-1/2" x 2-3/4" x 1-1/8" (114mm x 70mm x 28mm)
CM-9100 Series:	4-1/2" x 1-3/4" x 1-1/8" (114mm x 44mm x 28mm)
Std. Finish:	Brushed Aluminum

MODELS

Single Gang Faceplate
	CM-9080	DPDT MOMENTARY Dimensions: 2.5"L x 3.25"W x 4.75"H Weight: 0.5lbs. UPC:670454130235 Country of Origin:Canada

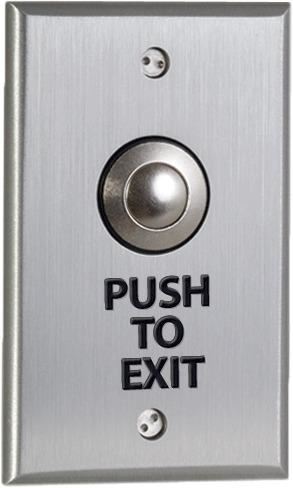

	CM-9080PTE	DPDT MOMENTARY, 'PUSH TO EXIT'. Complete model. No 'Options or Finishes' available for this model. Dimensions: 2.5"L x 3.25"W x 4.75"H Weight: 0.5lbs. UPC:670454163455 Country of Origin:Canada
	CM-9090	DPDT MAINTAINED Dimensions: 2.5"L x 3.25"W x 4.75"H Weight: 0.5lbs. UPC:670454130259 Country of Origin:Canada
Narrow Faceplate
	CM-9180	DPDT MOMENTARY Dimensions: 2.5"L x 3.25"W x 4.75"H Weight: 0.48lbs. UPC:670454130266 Country of Origin:Canada

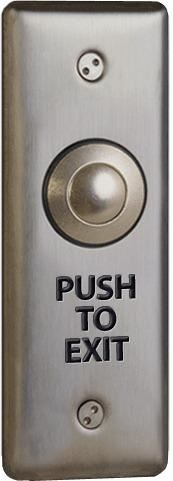

	CM-9180PTE	DPDT MOMENTARY, 'PUSH TO EXIT'. Complete model. No 'Options or Finishes' available. Dimensions: 2.5"L x 3.25"W x 4.75"H Weight: 0.48lbs. UPC:670454165442 Country of Origin:Canada
	CM-9190	DPDT MAINTAINED Dimensions: 2.5"L x 3.25"W x 4.75"H Weight: 0.45lbs. UPC:670454130297 Country of Origin:Canada

OPTIONS & FINISHES

Faceplate Graphic Options
	CM-xxx/2	Add /2 to model # for 'WHEELCHAIR' symbol, black
	CM-xxx/3	Add /3 to model # for 'PUSH TO OPEN', black graphics
	CM-xxx/3F	Add /3F to model # for 'POUSSEZ POUR OUVRIR', black graphics
	CM-xxx/3S	Add /3S to model # for 'PRESIONAR PARA ABRIR', black
	CM-xxx/7	Add /7 to model # for 'PUSH TO EXIT', black text
	CM-xxx/7F	Add /7F to model # for 'POUSSEZ POUR SORTIR', black
	CM-xxx/8	Add /8 to model # for 'PUSH TO LOCK', black
	CM-xxx/E	Add 'E' to model # for 'EXIT', black
Faceplate Finishes
	CM-xxx-BZ	Dark Bronze (Duronotic) finish, (BHMA 710 / 313AN) NOT AVAILABLE WITH FACEPLATE GRAPHIC OPTIONS

COMPATIBLE MOUNTING BOXES

Mounting Boxes & Accessories: Narrow/Jamb

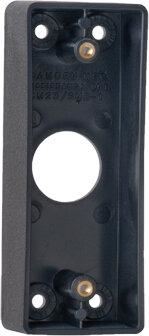

	CM-23	Surface Box, Standard Depth Narrow/Jamb boxes for 9100 series switches
Mounting Boxes & Accessories: Single Gang

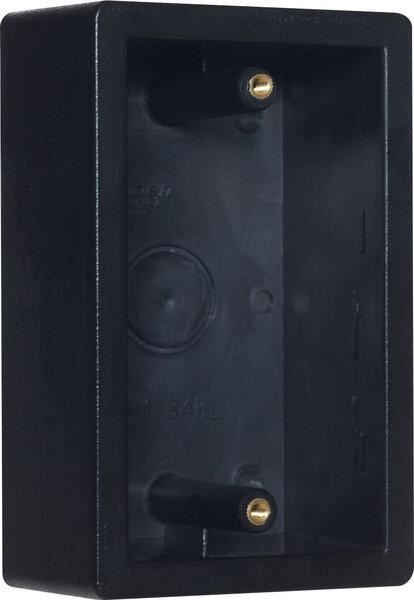

	CM-34BL	Surface Box, Standard Depth. Double wall Single Gang boxes for 9000 Series switches

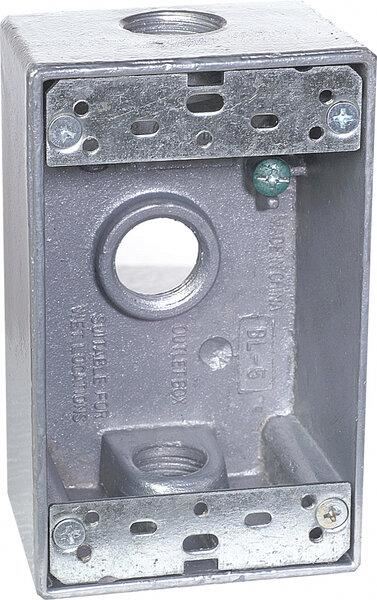

	CM-34AL	Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 9000 Series switches

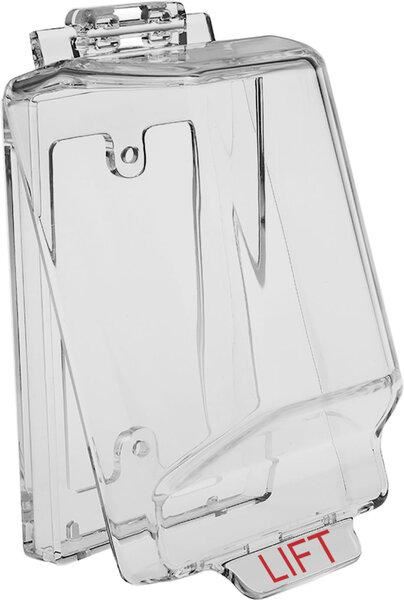

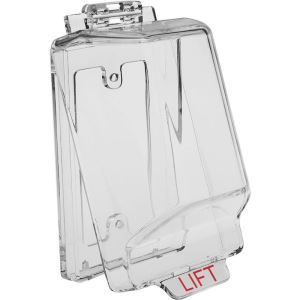

	CM-CPC1	Vandal and weather resistant clear lift cover Single Gang boxes for 9000 Series switches
