Camden Door Controls -CM-7000/7100 Series Vandal Resistant Push Buttons (Recessed)

DOWNLOADS

CM-7000 Series push/exit switches are vandal resistant, designed and manufactured to meet the stringent demands of exit controls. They are supplied with a 1/4" thick heavy duty brushed aluminum plate in single gang or narrow widths. Optional duranodic (US 40) finish also available.


Category: access control hardware | push buttons | push plate door activators...

MasterFormat: Hardware | Door Hardware | Access Control Hardware


View Product Details From Manufacturer


Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


CM-7000/7100 Series Vandal Resistant Push Buttons (Recessed)

CM-7000 Series push/exit switches are vandal resistant, designed and manufactured to meet the stringent demands of exit controls. They are supplied with a 1/4" thick heavy duty brushed aluminum plate in single gang or narrow widths. Optional duranodic (US 40) finish also available. CM-7000 Series Recessed Buttons are specially designed to limit accidental activation (not suitable for ADA applications) and to provide protection from vandalism.

FEATURES

  • 1" diameter recessed button
  • Mounted on heavy 1/4" thick aluminum plate
  • Indoor or outdoor applications
  • Spring return operation
  • 3 year warranty


See More


Specifications

SPECIFICATIONS
Contact Type:
CM-7000, CM-7100:N/O SPST
CM-7010, CM-7110:N/C SPST
CM-7020, CM-7120:N/O&N/C DPST
CM-7085, CM-7185:N/O&N/C DPST Form 'Z' Pneumatic Timer
Contact Rating:6 A @ 30 VDC
Switch Type:Momentary
Dimensions:
CM-7000 Series:4-1/2" x 2-3/4" x 2-1/4"
(114mm x 70mm x 57mm)
CM-7100 Series:4-1/2" x 1-3/4" x 2-1/4"
(114mm x 44mm x 57mm)
Std. Finish:Brushed Aluminum
MODELS

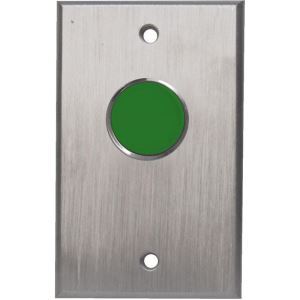

Single Gang Faceplate

CM-7000

Spring Return N/O, Momentary

Dimensions: 2.50"L x 3.25"W x 4.75"H

Weight: 0.5lbs.

UPC:670454128768

Country of Origin:Canada

CM-7010

Spring Return, N/C, Momentary

Dimensions: 2.50"L x 3.25"W x 4.75"H

Weight: 0.5lbs.

UPC:670454128843

Country of Origin:Canada

CM-7020

Spring Return, N/O & N/C, Momentary

Dimensions: 2.50"L x 3.25"W x 4.75"H

Weight: 0.61lbs.

UPC:670454128942

Country of Origin:Canada

CM-7085

Spring Return, DPST 1-60 SEC Pneumatic Time Delay, (Requires 1-3/4" deep box)

Dimensions: 4.00"L x 3.00"W x 4.75"H

Weight: 0.7lbs.

UPC:670454129048

Country of Origin:Canada

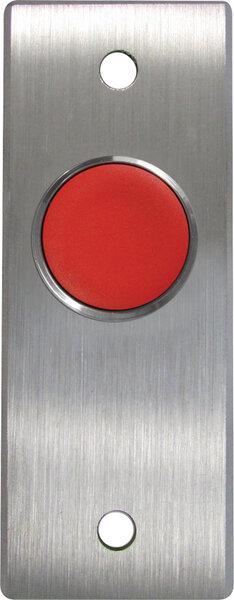

Narrow Faceplate

CM-7110

Spring Return, N/C, Momentary.

Dimensions: 2.50"L x 3.25"W x 4.75"H

Weight: 0.5lbs.

UPC:670454129222

Country of Origin:Canada

CM-7100

Spring Return, N/O, Momentary

Dimensions: 2.50"L x 3.25"W x 4.75"H

Weight: 0.5lbs.

UPC:670454129123

Country of Origin:Canada

CM-7120

Spring Return, N/O & N/C, Momentary

Dimensions: 2.50"L x 3.25"W x 4.75"H

Weight: 0.5lbs.

UPC:670454129314

Country of Origin:Canada

CM-7185

Spring Return, DPST 1-60 sec Pneumatic Time Delay, (Requires 1-3/4" deep box)

Dimensions: 2.50"L x 3.25"W x 4.75"H

Weight: 0.65lbs.

UPC:670454129390

Country of Origin:Canada

OPTIONS & FINISHES

Button Color Options:

CM-xxxR

add 'R' to model # for Red button

CM-xxxG

add 'G' to model # for Green button

Button Engraved Graphic Options

CM-xxxE

Add E to product # for 'EXIT' engraved (in white)

CM-xxxS

Add S to product # for SORTIE engraved (in white)

CM-xxxSA

Add SA to product # for SALIDA engraved (in white)

Faceplate Graphic Options

CM-xxx/3

Add /3 to model # for 'PUSH TO OPEN', black graphics

CM-xxx/3F

Add /3F to model # for 'POUSSEZ POUR OUVRIR', black graphics

CM-xxx/3S

Add /3S to model # for 'PRESIONAR PARA ABRIR', black

CM-xxx/7

Add /7 to model # for 'PUSH TO EXIT'

CM-xxx/7F

Add /7F to model # for 'POUSSEZ POUR SORTIR', black

CM-xxx/8

Add /8 to model # for 'PUSH TO LOCK', black

Faceplate Finishes

CM-xxx-BZ

Dark Bronze (Duronotic) finish, (BHMA 710 / 313AN)

COMPATIBLE MOUNTING BOXES

Mounting Boxes & Accessories: Narrow/Jamb

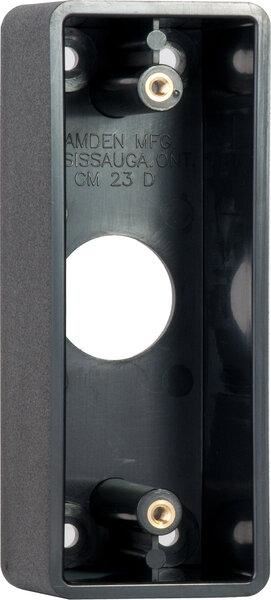

CM-23D

Surface Box, Deep - For wireless. Narrow/Jamb boxes for 7100 series switches

Mounting Boxes & Accessories: Single Gang

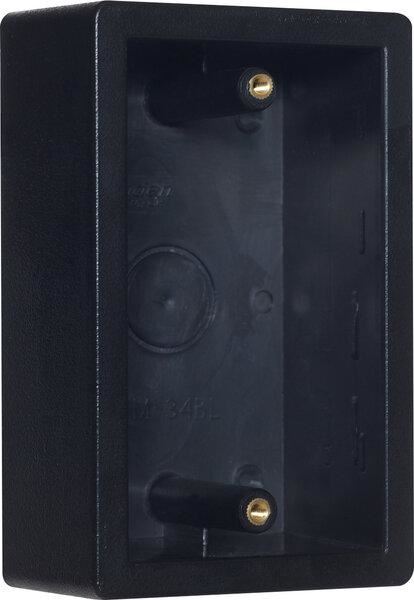

CM-34BL

Surface Box, Standard Depth. Double wall Single Gang boxes for 7000 Series switches

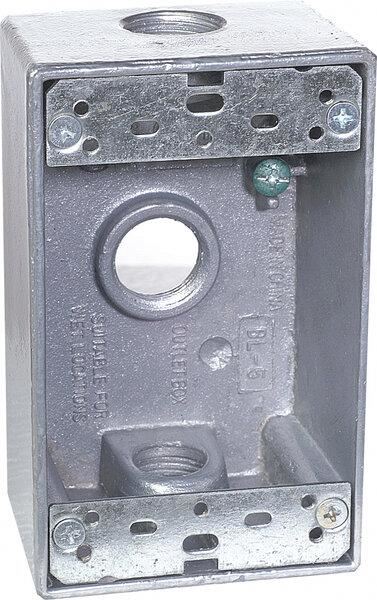

CM-34AL

Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 7000 Series switches

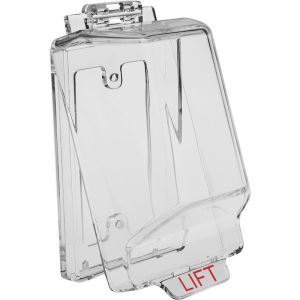

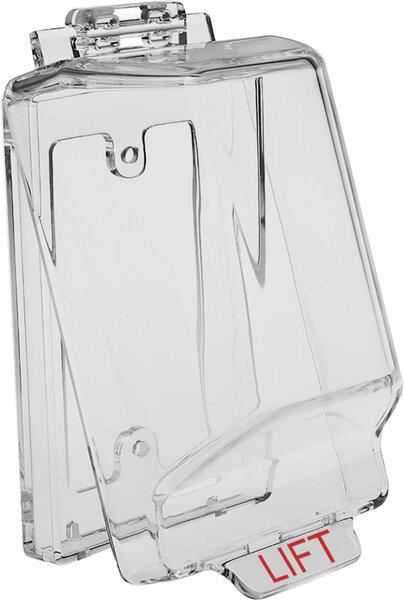

CM-CPC1

Vandal and weather resistant clear lift cover Single Gang boxes for 7000 Series switches

Mounting Boxes & Accessories: Single Gang (Deep)

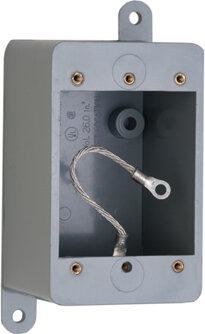

CM-34D

Surface Box, Extra Deep - For wireless. Heavy duty grey polymer CM-7085 requires minimum 2" deep box
