Camden Door Controls -CM-700 Series 'Universal' Blue Pull Stations

DOWNLOADS

CM-700 Series 'Universal' pull stations and pull stations with sounder meet the stringent demands of emergency pull station controls. They are designed for single gang mounting and protrude only 3/4" from the wall. They are easily reset with a small screwdriver.


Category: access control hardware | door switches | pull switches...

MasterFormat: Hardware | Door Hardware | Access Control Hardware


View Product Details From Manufacturer


Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

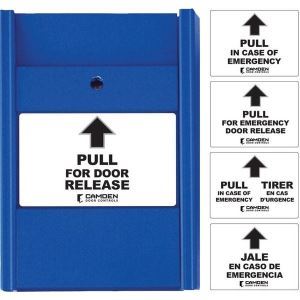

CM-700 Series 'Universal' Blue Pull Stations

CM-700 Series 'Universal' pull stations and pull stations with sounder meet the stringent demands of emergency pull station controls. They are designed for single gang mounting and protrude only 3/4" from the wall. They are easily reset with a small screwdriver. Ideal for door release and emergency exit applications. 'Universal' models are supplied with 4 message labels.

Note: Switch configurations indicated are when the pull station station is closed/reset. When pull stations are released, switch contacts will be the opposite of those indicated.

FEATURES

  • Ideal for use with magnetic locks in access control applications
  • Heavy duty vandal resistant design
  • Universal design with (5) Eng./Fr. and Sp. insert labels
  • Convenient Wiring Terminal
  • Standard single gang mount
  • Optional built-in sounder
  • 3 year warranty
  • CM-701SO: Built-in 85db alarm sounder


See More


Specifications

SPECIFICATIONS
Contact Type:
CM-701U, CM-701SO:(1) NC contact, open on release
CM-702U:(2) NC contact, open on release
CM-703U:(1) NC and (1) NO, open and close on release
Construction:Extruded aluminum
Mounting:Single gang electrical box
Contact Rating:1 Amp @ 30 VDC
Sounder:85dB @ 10cm
40 mA @ 12 VDC
Dimensions:4-1/2" x 3-1/2" x 1-3/8"
(114mm x 90mm x 37mm)
MODELS

'Universal' Blue Pull Stations

CM-701U

'Universal' blue pull station, (1) N/C - Labels include: (1) 'Pull for Door Release', (1) 'Pull for Emergency Door Release', (1) Eng. and (1) Fr./Eng. bilingual 'Pull in Case of Emergency' & (1) Sp. 'Jale En Caso De Emergencia'

Dimensions: 2.25"L x 3.5"W x 4.75"H

Weight: 0.39lbs.

UPC:670454199140

Country of Origin:China

CM-702U

'Universal' blue pull station, (2) N/C - Labels include: (1) 'Pull for Door Release', (1) 'Pull for Emergency Door Release', (1) Eng. and (1) Fr./Eng. bilingual 'Pull in Case of Emergency' & (1) Sp. 'Jale En Caso De Emergencia'

Dimensions: 2.25"L x 3.5"W x 4.75"H

Weight: 0.39lbs.

UPC:670454199164

Country of Origin:China

CM-703U

'Universal' blue pull station, (1) x N/C + (1) x N/O - Labels include: (1) 'Pull for Door Release', (1) 'Pull for Emergency Door Release', (1) Eng. and (1) Fr./Eng. bilingual 'Pull in Case of Emergency' & (1) Sp. 'Jale En Caso De Emergencia'

Dimensions: 2.25"L x 3.5"W x 4.75"H

Weight: 0.39lbs.

UPC:670454199171

Country of Origin:China

Blue Pull Station w/ Alarm

CM-701SO

1 x N/C switch, 'PULL FOR DOOR RELEASE' , with local alarm sounder

Dimensions: 2.25"L x 3.5"W x 4.75"H

Weight: 0.39lbs.

UPC:670454178510

Country of Origin:Canada

OPTIONS & FINISHES

Option

Description

CM-XXX-PC

For Clear Lift Cover, add suffix 'PC'

COMPATIBLE MOUNTING BOXES

Mounting Boxes & Accessories: Single Gang

CM-34BL

Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D

CM-34AL

Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2-3/4"W x 4-1/2"H x 1-3/4"D
