CM-45/46 Series 4-1/2 Inch Square Push Plate Switches

CM-45 (concealed screws) and CM-46 Series (exposed screws) 4-1/2" square push plate switches mount to standard single/double gang electrical boxes. The SPDT (and optional DPDT) switches are rated 15 amps @ 30 VDC. Push switches are offered with different graphics in various architectural finishes. Weather resistant and water tight configurations also available.

NEW: CAMDEN PUSH PLATE SWITCHES NOW FEATURE STANDARD WATER RESISTANCE - NO NEED TO SELECT 'WR' OPTION!

Note: Optional architectural finishes available for CM-45 Series only by special order. Purchase order cannot be cancelled following issue of order confirmation and product cannot be returned for credit. A min. of 14 business days is required for production.

Architectural Finishes:
CM-45 Series switches with architectural finish
only available with /1, /2, /3, /4, /8 graphic options

FEATURES

ADA Compliant
3 year warranty
4 stud switch design and rubber dampers for quieter operation
CM-45:
- Hidden mounting screws
- Stainless steel construction
CM-46CB:
- Exposed screws for easy maintenance
- Aluminum construction

See More

See Less

Specifications

SPECIFICATIONS

Switch Type:	Momentary
Contact Type:	SPDT Form 'C'
Current Rating:	15 A @ 30 VDC
Mounting:	Single or Double Gang
Dimensions:
CM-45, CM-46:	4-1/2" x 4-1/2" x 1-1/4" (114mm x 114mm x 32mm)
Std. Finish:
CM-45, CM-46:	US32 / 630
CM-46CB:	Blue Paint

MODELS

Wired 4-1/2" Square
	CM-45	4-1/2" Square Push Plate Switch, Concealed Screws Dimensions: 1.25"L x 6.25"W x 6.25"H Weight: 0.85lbs. UPC:NA Country of Origin:Canada
	CM-46	4-1/2" Square Push Plate Switch, Exposed Screws Not available with Architectural Finishes Dimensions: 1.25"L x 6.25"W x 6.25"H Weight: 0.95lbs. UPC:NA Country of Origin:Canada

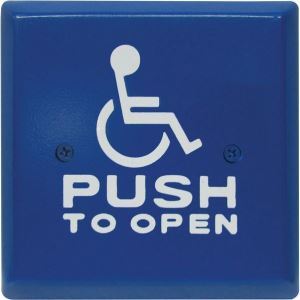

	CM-46CB	4-1/2” Square Blue Push Plate Switch, White Graphics, Exposed Screws. Graphic Options: '/1' (blank), '/2' (Wheelchair) & '/4' (Wheelchair and Push to Open) only Dimensions: 1.25"L x 6.25"W x 6.25"H Weight: 0.85lbs. Country of Origin:Canada
4-1/2" Square, Kinetic(tm) No Battery Wireless
	CM-45K	4-1/2" Square Push Plate Switch, Concealed Screws, w/ no-battery Kinetic wireless transmitter Dimensions: 1.25"L x 6.25"W x 6.25"H Weight: 0.85lbs. UPC:NA Country of Origin:Canada
	CM-46K	4-1/2" Square Push Plate Switch, Exposed Screws, w/ no-battery Kinetic wireless transmitter Not available with Architectural Finishes Dimensions: 1.75"L x 6.25"W x 6.25"H Weight: 0.85lbs. UPC:NA Country of Origin:Canada
	CM-46CBK	4-1/2” Square Blue Push Plate Switch, Exposed Screws, w/ no-battery Kinetic wireless transmitter Dimensions: 1.75"L x 6.25"W x 6.25"H Weight: 0.85lbs. UPC:NA Country of Origin:Canada

OPTIONS & FINISHES

Faceplate Graphic Options
	CM-xxx/1	'BLANK' faceplate
	CM-xxx/2	'WHEELCHAIR' symbol, blue
	CM-xxx/2AL	WHEELCHAIR symbol with ARROW left, blue graphics
	CM-xxx/2AR	WHEELCHAIR symbol with ARROW right, blue graphics
	CM-xxx/A2	'ACTIVE WHEELCHAIR' symbol, blue (CM-45 series only)
	CM-xxx/3	'PUSH TO OPEN', black graphics
	CM-xxx/3F	'POUSSEZ POUR OUVRIR', black graphics
	CM-xxx/4	'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue
	CM-xxx/4F	'WHEELCHAIR' and 'POUSSEZ POUR OUVRIR', black graphics
	CM-xxx/4AL	WHEELCHAIR symbol with ARROW left, blue graphics
	CM-xxx/4AR	'WHEELCHAIR' symbol and 'PUSH TO OPEN' with ARROW right, blue graphics
	CM-xxx/A4	'ACTIVE WHEELCHAIR' symbol and 'Push to Open' text, blue (CM-45 series only)
	CM-xxx/8	'PUSH TO LOCK', black
	CM-xxx/8B	'LOCK SYMBOL' and 'PUSH TO LOCK', Red text
	CM-xxx/8D	'PUSH TO LOCK DOOR', black
	CM-xxx/8F	'POUSSEZ POUR VERROUILLER', black text
Weatherproof Options
	CM-xxx-WT	boot and water tight coating
Contact Options
	CM-xxx-DP	DPDT switch instead of SPDT switch
Architectural Finishes (Only Available with CM-45 /1, /2, /3, /4, /8 Graphic Options)
	CM-xxx-SB	satin brass finish (US4 / 606)
	CM-xxx-OB	oil rub bronze finish (US10B / 613)
	CM-xxx-PB	polished brass (US3 / 605)
	CM-xxx-AB	antique brass finish (US5 / 609)

COMPATIBLE MOUNTING BOXES

Mounting Boxes & Accessories: Double Gang
	CM-43CBL	Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS). Flame/Impact resistant, 4-1/2"W x 4-1/2"H x 2"D.
	CM-43LP	Surface Box, Shallow depth, provision for wireless, black polymer (ABS) flame/impact resistant, 5" x 5" x 1-3/8". For use with CM-45/46 push plate switches. Add suffix ‘B’ when used with CM-2520 double gang vestibule switches
	CM-43GMK	Glass Mount Kit for CM-43LP Box
	CM-540B	Surface Box, Shallow Depth. Flame and Impact resistant black polymer (ABS) 4-13/16" x 4-13/16" x 5/8"
	CM-660	6-1/2" Dress plate, Cover for double gang or 4" square flush box, Heavy gauge stainless steel
	CM-49C	Adapter plate for mounting on double gang or 4" Square box 4" x 1/16"
	CM-43G	Gasket for CM-43CBL and CM-63CBL Boxes
	CM-55CBL	Flush box, Standard Depth, flame/Impact resistant black polymer (ABS) 6-1/2"W x 6 1/2"H x 2". For use with CM-45/46 Series
Switch Bollards (Posts): Clear Aluminum
	CM-42-CSU	42"Tall, No switch prep, 6"x6"
	CM-42-BSU	42" Tall, (36" Switch Height) single gang prep, 6"x6"
	CM-48-BSU	48" Tall, (36” Switch Height) single gang prep, 6" x 6"
Switch Bollards (Posts): Stainless Steel
	CM-42-BSU-SS	42" Tall, stainless steel bollard with single gang switch prep
	CM-48-BSU-SS	48” Tall, Stainless Steel bollard with single gang switch prep, 6” x 6”
