Camden Door Controls -CM-40, CM-41 & CM-60 Series Round Push Plate Switches

DOWNLOADS

CM-40, CM-41 and CM-60 Series 'All-Active' push plate switches are heavy-duty, ADA-compliant door controls. Faceplates are stainless steel or solid brass, and the assembly is designed for easy installation.


Category: ADA compliant door controls | access control hardware | push plates...

MasterFormat: Hardware | Door Hardware | Access Control Hardware


View Product Details From Manufacturer


Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


CM-40, CM-41 & CM-60 Series Round Push Plate Switches

CM-40, CM-41 and CM-60 Series 'All-Active' push plate switches are heavy-duty, ADA-compliant door controls. Faceplates are stainless steel or solid brass, and the assembly is designed for easy installation. The CM-41 4-1/2" square stainless steel backplate is large enough to dress-up (cover) a poorly installed electrical box. It will also fit perfectly on most 4-1/2" surface boxes.

CAMDEN PUSH PLATE SWITCHES NOW INCLUDE 'WR' WATER RESISTANCE AS STANDARD!

Note: Optional architectural finishes are special order. Purchase order cannot be cancelled following issue of order confirmation and product cannot be returned for credit. A min. of 14 business days is required for production.

Architectural Finishes:

Switches with architectural finish only available

with /1, /2, /3, /4 graphic options

FEATURES

  • ADA Compliant
  • All-Active design requires minimal actuation force
  • 4 stud switch design and rubber dampers for quieter operation
  • Durable stainless steel construction
  • 3 year warranty


See More


Specifications

SPECIFICATIONS
Switch Type:Momentary
Contact Type:SPDT Form 'C'
Contact Rating:15 A @ 30 VDC
Mounting:
CM-40, CM-41:Single Gang
CM-60:Single or Double Gang or 4 x 4
Std. Finish:US32 / 630
Dimensions:
CM-40:4-1/2" x 1-3/4"
(114mm x 44mm)
CM-45:4-1/2" x 4-1/2" x 1-3/4"
(114mm x 114mm x 44mm)
CM-60:6" x 1-1/8"
(152mm x 28.6mm)
MODELS

Round Push Plates

CM-40

4-1/2" Round Push Plate Switch

Dimensions: 1.50"L x 6.25"W x 6.25"H

Weight: 0.62lbs.

UPC:NA

Country of Origin:Canada

CM-41

4-1/2" Round Push Plate Switch with Square Back Plate

Dimensions: 1.25"L x 6.25"W x 6.25"H

Weight: 0.76lbs.

UPC:NA

Country of Origin:Canada

CM-60

6" Round Push Plate Switch

Dimensions: 1.50"L x 6.25"W x 6.25"H

Weight: 0.93lbs.

UPC:NA

Country of Origin:Canada

Round Push Plates, Kinetic(tm) No Battery Wireless

CM-40K

4-1/2" Stainless Steel Round Push Plate Switch

Dimensions: "L x "W x "H

Weight: lbs.

Country of Origin:Canada

CM-41K

4-1/2" Stainless Steel Round Push Plate Switch
with Square Back Plate

Dimensions: "L x "W x "H

Weight: lbs.

Country of Origin:Canada

CM-60K

6" Stainless Steel Round Push Plate Switch

Dimensions: "L x "W x "H

Weight: lbs.

Country of Origin:Canada

OPTIONS & FINISHES

Faceplate Graphic Options

CM-xxx/1

'BLANK' faceplate Add /1 to model #

CM-xxx/2

'WHEELCHAIR' symbol, blue Add /2 to model #

CM-xxx/A2

'ACTIVE WHEELCHAIR' symbol, blue

CM-xxx/2AL

WHEELCHAIR symbol with ARROW left, blue graphics Add /2AL to model #

CM-xxx/2AR

WHEELCHAIR symbol with ARROW right, blue graphics Add /2AR to model #

CM-xxx/3

'PUSH TO OPEN', black graphics Add /3 to model #

CM-xxx/3F

'POUSSEZ POUR OUVRIR', black graphics Add /3F to model #

CM-xxx/4

'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue Add /4 to model #

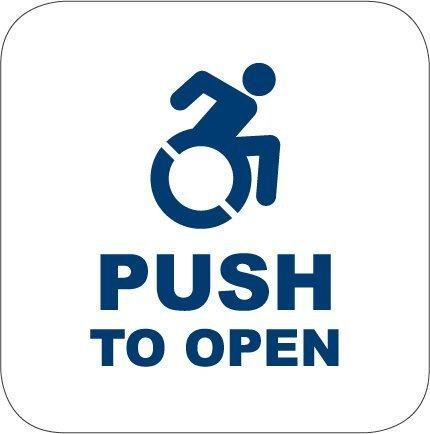

CM-xxx/A4

'ACTIVE WHEELCHAIR' symbol and 'Push to Open' text, blue. Not available on stainless steel Column(tm) switches

CM-xxx/4AL

WHEELCHAIR symbol with ARROW left, blue graphics Add /4AL to model #

CM-xxx/4AR

WHEELCHAIR symbol with ARROW right, blue graphics Add /4AR to model #

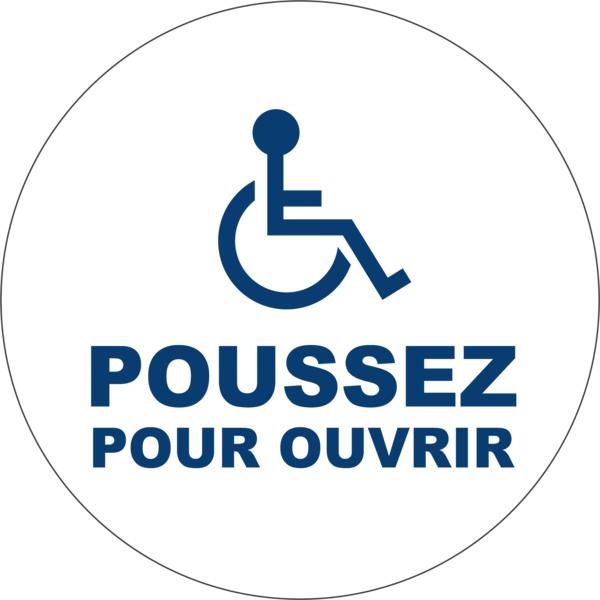

CM-xxx/4F

'WHEELCHAIR' and 'POUSSEZ POUR OUVRIR', blue graphics Add /4F to model #

CM-xxx/8

'PUSH TO LOCK', black Add /8 to model #

CM-xxx/8B

'LOCK SYMBOL' and 'PUSH TO LOCK', Black text Add /8B to model #

CM-xxx/8D

'PUSH TO LOCK DOOR', black Add /8D to model #

CM-xxx/8F

'POUSSEZ POUR VERROUILLER', black text Add /8F to model #

Weatherproof Options

CM-xxx-WT

boot and water tight coating

Contact Options

CM-xxx-DP

DPDT switch instead of SPDT switch

Architectural Finishes (/1, /2, /3, /4)

CM-xxx-SB

satin brass finish (US4 / 606) Add 'SB' to product #

CM-xxx-OB

oil rub bronze finish (US10B / 613) Add 'OB' to product #

CM-xxx-PB

polished brass (US3 / 605) Add 'PB' to product #

CM-xxx-AB

antique brass finish (US5 / 609) Add 'AB' to product #

COMPATIBLE MOUNTING BOXES

Mounting Boxes & Accessories: Double Gang

CM-43CBL

Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS). Flame/Impact resistant, 4-1/2"W x 4-1/2"H x 2"D.

CM-540B

Surface Box, Shallow Depth. Flame and Impact resistant black polymer (ABS) 4-13/16" x 4-13/16" x 5/8"

CM-660

6-1/2" Dress plate, Cover for double gang or 4" square flush box, Heavy gauge stainless steel

CM-49C

Adapter plate for mounting on double gang or 4" Square box 4" x 1/16"

CM-43G

Gasket for CM-43CBL and CM-63CBL Boxes

Mounting Boxes & Accessories: Round ABS Box

CM-47S

Surface, Round, Standard Depth, provision for wireless. black polymer (ABS) Flame and Impact resistant, 5" x 1-3/4"D

CM-47SER

Surface, Round, Extra Deep, for Kinetic(tm) CM-40K Series Push Plate Switches

CM-69S

Surface, Round Standard Depth, provision for wireless. black polymer (ABS) Flame and impact resistant, 6-1/2" x 1-3/4"D

CM-69SER

Surface, Round, Extra Deep, for Kinetic(tm) CM-60K Series Push Plate Switches and SureWave(tm) switches w/ 'R' option faceplates

Escutcheons: 2 Pc. ABS Escutcheons

CM-49

Surface/Flush mount kit includes CM-49A, CM49B, CM-49C and CM-49G. 8-3/4" x 2

CM-79

Surface/Flush mount kit includes CM-79A, CM79B, CM-49C and CM-79G. 9-5/8" x 2"

Escutcheons: Stainless Steel Escutcheons

CM-59S

Surface, Round, Standard Depth. Heavy gauge stainless steel 7-3/4" x 1-1/8"

CM-89S

Surface, Round Standard Depth. Heavy gauge stainless steel 9-5/8" x 1-1/2"

Switch Bollards (Posts): Clear Aluminum

CM-42-CSU

42" Tall, No switch prep, 6"x6"

CM-42-BSU

42" Tall, (36" Switch Height) single gang prep, 6"x6"

CM-48-BSU

48" Tall, (36” Switch Height) single gang prep, 6" x 6"

Switch Bollards (Posts): Stainless Steel

CM-42-BSU-SS

42" Tall, stainless steel bollard with single gang switch prep

CM-48-BSU-SS

48” Tall, Stainless Steel bollard with single gang switch prep, 6” x 6”
