CM-331/332/333/336/324/325 Series SureWave™ Touchless Switches

SureWave™ 2nd generation hands-free switches that provide superior door activation in new and retrofit access control and automatic door applications.

CM-333 and CM-336 battery powered models are supplied with (2) AA alkaline batteries.

Lithium batteries recommended for environments below 0°C (32°F). To order, select option below.

CM-324 Series (original) single relay wired hands-free switches features an operating range of 1-30", adjustable time delay of 1-5 seconds, and provides superior performance in all ambient lighting conditions.

CM-325 Series hands-free switches are specifically designed for use in healthcare and facilities where highly reflective surfaces (chrome or polished stainless steel) cause standard touchless switches to false activate.

Add 'F' to graphic option for French language.

Camden has introduced a new 6" surface mount round mounting box as well as a complete range of conversion kits for mounting SureWave™ switches on existing square and round push plate switch boxes.

FEATURES

Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC), gasket included
Advanced active infra-red technology with fast response
Heavy duty relay contacts
Adjustable operating range up to 28", refer to model specification
Adjustable time delay, refer to model specifcation
Selectable fail safe/fail secure operation
CM-331 Series: 1 Relay with 5 selectable operating modes, inputs for Request to Exit and door contact
CM-332 Series: 2 Relays with bi-directional door sequencing avoids the need to purchase additional components
CM-333 Series: Hybrid battery-powered with latching hardwired contact ideal for replacing non-powered push/exit switch with hands-free sensor switch
CM-336 Series: Lazerpoint(tm) compatible wireless hands-free switch offers the longest battery life using common alkaline batteries
CM-324: 1 Relay with 1 - 5 second adjustable time delay. No inputs
CM-325: 1 Relay, with 1 - 5 second adjustable time delay. Designed to reduce false activations due to chrome surfaces in confined areas, typically found in restrooms.

See More

See Less

Specifications

SPECIFICATIONS

Technology:	Active Infra-red, utilizing microburst sensing technology
Voltage:	12-24V AC/DC
Contact Type:
CM-331, CM-333, CM-324, CM-325:	(1) SPDT Form 'C'
CM-332:	(2) SPDT Form 'C'
Contact Rating:
CM-331, CM-332, CM-333:	3 Amps @ 30 V
CM-324, CM-325:	5 Amps @ 30 V
Current Draw:
CM-331, CM-332:	40 mA
CM-324, CM-325:	60 mA
Wireless:
CM-336:	Built-In
CM-331, CM-332:	Optional Plug-In
Wireless Frequency:
CM-336:	915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless
Battery:
CM-333, CM-336:	(2) 'AA' alkaline 32ºF to +122º F (0ºC to +50º C) (2) 'AA' Lithium Batteries (optional) -40ºF to +122º F (-40ºC to +50º C)
Battery Life:
CM-336:	Lithium: 4 years with 100 activations per day Alkaline: 2 years with 100 activations per day
Adjustable Operating Range:
CM-331, CM-332:	1"- 28" (25mm-711mm)
CM-333, CM-336:	1"-12" (25mm-304mm)
CM-324:	1"-30" (25.4mm-762mm)
CM-325:	Min. 2" (51mm) Hand, Max. 18" (45mm) Mirror
Time Delay:
CM-331, CM-332, CM-333, CM-336:	3-30 Seconds
CM-324, CM-325:	1-5 Seconds
Operation:	Selectable Fail Safe/Fail Secure
Motion Sensing Modes:
CM-331, CM-332, CM-333, CM-336:	Momentary, Momentary with Alarm, Maintained
CM-324, CM-325:	Momentary
Relay Operating Modes:
CM-332:	Event, Sequence, Security, Toggle
CM-331:	Event, Toggle
CM-333, CM-336, CM-324, CM-325:	Event
Input:
CM-331, CM-332, CM-333, CM-336:	REX, Door Contact
Blue/Green/Red Light Ring:
CM-331, CM-332:	Optional

MODELS

Touchless Switch, 1 Relay
	CM-331	Wired Touchless switch, w/ built-in door control, 1 Relay, option for CM-TX99 wireless transmitter and light ring Dimensions: 5.25"L x 5.5"W x 2"H Weight: 0.4lbs. UPC:670454180988 Country of Origin:Canada
	CM-324	Wired Touchless Switch, economical, 1 Relay, no inputs or option for wireless or light ring Dimensions: 4"L x 1"W x 1.5"H Weight: 0.4lbs. UPC:670454160935 Country of Origin:Canada
	CM-325	Wired 'Short Range' Touchless Switch, 1 Relay, no option for inputs or option for wireless or light ring Dimensions: 5.25"L x 5.5"W x 2"H Weight: 0.4lbs. UPC:670454178565 Country of Origin:Canada
Touchless Switch, 2 Relays
	CM-332	Wired Touchless Switch, w/ built-in door control, 2 Relays, option for CM-TX99 wireless transmitter and light ring Dimensions: 5.25"L x 5.5"W x 2"H Weight: 0.4lbs. UPC:670454180995 Country of Origin:Canada
Touchless Switch, Battery Powered
	CM-333	Hybrid Battery Powered Touchless Switch, 1 wired Relay. Option for plug-in wireless module discontinued May 2022 Dimensions: 5.25"L x 5.5"W x 2"H Weight: 0.4lbs. UPC:670454181008 Country of Origin:Canada
	CM-336	Battery Powered Touchless Switch, Wireless, Built-In 915MHZ. Spread Spectrum Wireless Transmitter. Narrow version requires 1-5/8" deep surface mount box. Dimensions: 5.25""L x 5""W x 2""H Weight: 0.4lbs. UPC:670454214010 Country of Origin:Canada
Lithium Batteries
	CM-LP1	(2) AA lithium battery pack Dimensions: "L x "W x "H Weight: lbs. UPC:670454184061 Country of Origin:China

OPTIONS & FINISHES

Faceplate Material
	S	Stainless Steel Faceplate without Illumination.
Faceplate Size
	/N	Narrow Faceplate. Rubber gasket supplied. CM-324, 325, 331 & 332 Series narrow switches are compatible with CM-23D narrow jamb surface box.
	/W	Double Gang Faceplate without Illumination. Do not select when ordering light ring. . Rubber gasket supplied for weather/water resistant applications. Compatible surface mounting box CM-43CBLA
	/R	6" Round Stainless Steel Faceplate without Illumination. Do not select when ordering light ring. Mounts on single gang in-wall box, CM-69SER surface round box or CM-79A semi-flush escutcheon. Not water resistant.
Faceplate Graphic Options
	/40	Hand Icon
	/41	Hand Icon and 'Wave to Open' text
	/42	Hand Icon, 'Wave to Open' text and Wheelchair Symbol
	/43	Hand Icon and 'Wave To Lock'. Option for stainless steel face plate only. Door locked status indicator recommended when using this graphic option.
	/44	Hand Icon and Wheelchair Symbol
Light Ring
	-SSGLR	Single Gang Stainless Steel Faceplate w/ Green/Red/Blue LED light ring. Not weather/water resistant.
	-SWSGLR	Double Gang Stainless Steel Faceplate w/ Green/Red/Blue LED light ring. Not weather/water resistant.
	-RSGLR	6" Round Stainless Steel Faceplate w/ Green/Red/Blue LED light ring. Not weather/water resistant.

COMPATIBLE WIRELESS

	CM-TX-99	915Mhz. plug-in transmitter for SureWave(tm) CM-331 and 332 series touchless switches and CM-120 Series Keypads.
	CM-RX-90	V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver
Mounting Boxes & Accessories
	CM-23D	Surface Box, Deep - For wireless. Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H X 1-1/2"D. Not compatible with SureWave(tm) wireless no-touch switches (including CM-331/332 with plug-in CM-TX99 module or CM-336).
	CM-23DSER	Surface Box, Extra Deep Flame and Impact resistant black polymer (ABS) with extension ring 1-3/4"W x 4-5/8"H X 1-7/8"D
	CM-34BL	Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
	CM-43CBLA	Surface mounting box Flame/Impact resistant, 4-1/2"W x 4-1/2"H x 2"D. For use with double gang Hands Free Switches
	CM-69SER	Surface, Round, Extra Deep, for Kinetic(tm) CM-60K Series Push Plate Switches and SureWave(tm) switches w/ 'R' option faceplates

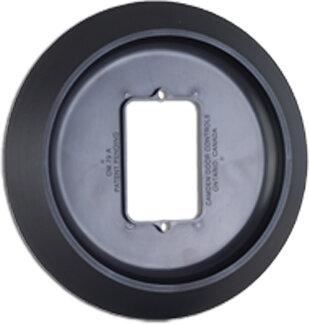

	CM-79A	Flush enclosure only (fits single gang box) 8' x 3/4"
	CM-RH-SG	Stainless Steel, Single Gang Rain Hood. Compatible with any Camden flush mount single gang switch.
	CM-RH-DG	Stainless Steel, Double Gang Rain Hood. Compatible with any Camden flush mount double gang switch.

COMPATIBLE MOUNTING BOXES

Mounting Boxes & Accessories
	CM-23D	Surface Box, Deep - For wireless. Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H X 1-1/2"D. Not compatible with SureWave(tm) wireless no-touch switches (including CM-331/332 with plug-in CM-TX99 module or CM-336).
	CM-23DSER	Surface Box, Extra Deep Flame and Impact resistant black polymer (ABS) with extension ring 1-3/4"W x 4-5/8"H X 1-7/8"D
	CM-34BL	Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
	CM-43CBLA	Surface mounting box Flame/Impact resistant, 4-1/2"W x 4-1/2"H x 2"D. For use with double gang Hands Free Switches
	CM-69SER	Surface, Round, Extra Deep, for Kinetic(tm) CM-60K Series Push Plate Switches and SureWave(tm) switches w/ 'R' option faceplates
	CM-79A	Flush enclosure only (fits single gang box) 8' x 3/4"
	CM-43CBL-ADP1	Adaptor kit to mount SUREWAVE(tm) double gang switch on CM-43CBL surface mount box
	CM-54i-ADP1	Adaptor kit to mount SUREWAVE(tm) double gang switch on Aura(tm) Illuminated CM-54i (Surface) or CM-55i (flush) mount box
	CM-RH-SG	Stainless Steel, Single Gang Rain Hood. Compatible with any Camden flush mount single gang switch.
	CM-RH-DG	Stainless Steel, Double Gang Rain Hood. Compatible with any Camden flush mount double gang switch.

SUREWAVE SWITCH KITS

CM-336 Series Battery Powered Wireless Kits

CM-SK336/42S

CM-SK336/42S CM-SK336/42S (2) SureWave(tm) wireless no-touch switch, single gang, stainless steel faceplate, 'Wave to Open' graphics, black; (2) Surface Box, Standard Depth. Double wall; (1) V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver; SURWAVE Battery Powered W/less Kit 336/42S, 34BL, RX-90.

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454214683

CM-SK336/42R

CM-SK336/42R (2) SureWave(tm) wireless no-touch switch, 6" Round, stainless steel faceplate, 'Wave to Open' graphics, black; (1) V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver; (2) Surface, Round, Extra Deep, for Kinetic(tm) CM-60K Series Push Plate Switches and SureWave(tm) switches w/ 'R' option faceplates.
