Camden Door Controls -CM-3200 & CM-3500 Series Stainless Steel, 2 Gang, Flush Mount

DOWNLOADS

'Camden Tough' double gang stainless steel key switches offer thicker faceplate for better vandal resistance, rounded metal edges for safer installation and a pre-assembled switch mounting bracket to reduce installation time.


Category: access control hardware | door switches | security door activators...

MasterFormat: Hardware | Door Hardware | Security Door Hardware...


View Product Details From Manufacturer


Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


CM-3200 & CM-3500 Series Stainless Steel, 2 Gang, Flush Mount

'Camden Tough' double gang stainless steel key switches offer thicker faceplate for better vandal resistance, rounded metal edges for safer installation and a pre-assembled switch mounting bracket to reduce installation time. They accept virtually any 1" - 1-1/4" mortise cylinder and cam.

Note: Mortise cylinder sold separately. Scroll down and 'Click for More' Option/Finishes for the complete cylinder listing.

FEATURES

  • Left and/or right operation
  • Accepts standard mortise cylinders, 1" - 1-1/4

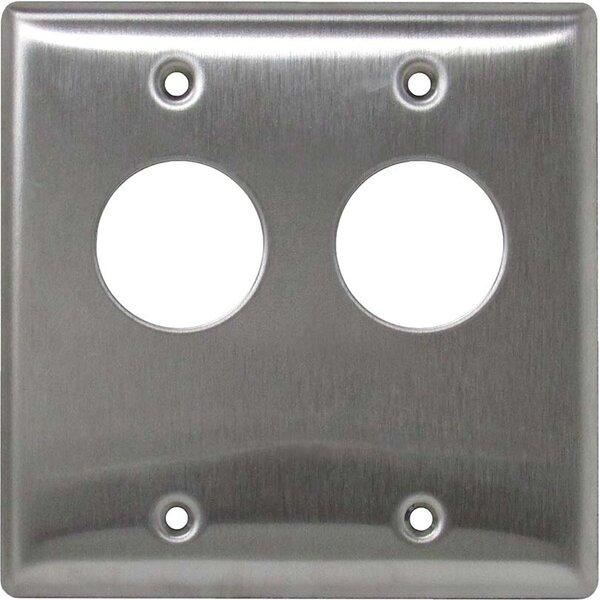

  • Heavy duty double gang stainless steel faceplate
  • Locators prevent cylinders from spinning
  • Tamper proof screws and driver provided
  • Indoor and outdoor flush applications
  • Provision for up to 4 internal switches
  • Heat shrink protective sleeve over contacts
  • Color coded 18 AWG soldered leads
  • 3 year warranty


See More


Specifications

SPECIFICATIONS
Contact Rating:6 A @ 30 VDC
Switch Life:All: 100,000 cycles
Temp Range:32°F to 85°F (0°C to +85°C)
Std. Finish:US32 / C32D
Dimensions:4-1/2" x 4-1/2" x 1-5/8"
(114mm x 114mm x 41mm)
MODELS

Double Gang One Cylinder Key Switch

CM-3200

Key Switch, (1) SPST Momentary, N/O

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.8lbs.

UPC:670454124319

Country of Origin:Canada

CM-3205

Key Switch, (1) SPST Momentary, N/C

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.8lbs.

UPC:670454124326

Country of Origin:Canada

CM-3210

Key Switch, (1) SPST Maintained

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.8lbs.

UPC:670454124333

Country of Origin:Canada

CM-3220

Key Switch, (1) SPDT N/O & N/C Momentary

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.8lbs.

UPC:670454124340

Country of Origin:Canada

CM-3230

Key Switch, (1) SPDT N/O & N/C Maintained

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.8lbs.

UPC:670454124357

Country of Origin:Canada

CM-3250

Key Switch, (2) SPDT Momentary

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.8lbs.

UPC:670454124364

Country of Origin:Canada

CM-3260

Key Switch, (2) SPDT Maintained

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.8lbs.

UPC:670454167385

Country of Origin:Canada

CM-3270

Key Switch, (2) SPDT Momentary and SPDT Maintained

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.8lbs.

UPC:670454167392

Country of Origin:Canada

CM-3280

Key Switch, (1) DPDT Momentary

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.8lbs.

UPC:670454124395

Country of Origin:Canada

CM-3282

Key Switch, (2) DPDT Momentary

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.8lbs.

UPC:670454190949

Country of Origin:Canada

CM-3290

Key Switch, (1) DPDT Maintained

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.8lbs.

UPC:670454124418

Country of Origin:Canada

CM-3292

Key Switch, (2) DPDT Maintained

Dimensions: 4.50"L x 6.00"W x 3.50"H

Weight: 0.8lbs.

UPC:670454196309

Country of Origin:Canada

Double Gang Dual Cylinder Key Switch

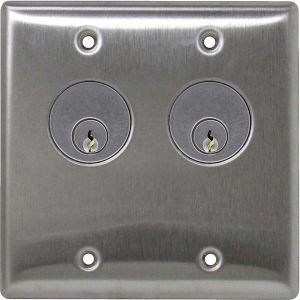

CM-3500

Key Switch, (2) SPST Momentary, N/O

Dimensions: 3"L x 5"W x 2"H

Weight: 0.65lbs.

UPC:670454153098

Country of Origin:Canada

CM-3505

Key Switch, (2) SPST Momentary, N/C

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.65lbs.

UPC:670454167040

Country of Origin:Canada

CM-3510

Key Switch, (2) SPST Maintained

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.65lbs.

UPC:670454151155

Country of Origin:Canada

CM-3520

Key Switch, (1) SPDT N/O & N/C Momentary

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.65lbs.

UPC:670454156006

Country of Origin:Canada

CM-3530

Key Switch, (2) SPDT N/O & N/C Maintained

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.65lbs.

UPC:670454156785

Country of Origin:Canada

CM-3550

Key Switch, (2) SPDT Momentary

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.65lbs.

UPC:670454158116

Country of Origin:Canada

CM-3560

Key Switch, (2) SPDT Maintained

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.65lbs.

UPC:670454161123

Country of Origin:Canada

CM-3570

Key Switch, (2) SPDT Momentary and Maintained

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.65lbs.

UPC:670454151513

Country of Origin:Canada

CM-3580

Key Switch, (2) DPDT Momentary

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.65lbs.

UPC:670454158987

Country of Origin:Canada

CM-3582

Key Switch, (4) DPDT Momentary

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.65lbs.

UPC:670454211231

Country of Origin:Canada

CM-3590

Key Switch, (2) DPDT Maintained

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.65lbs.

UPC:670454157546

Country of Origin:Canada

CM-3592

Key Switch, (4) DPDT Maintained

Dimensions: 4.5"L x 6"W x 3.5"H

Weight: 0.65lbs.

UPC:670454165992

Country of Origin:Canada

Mortise Cylinders (Sold Separately)

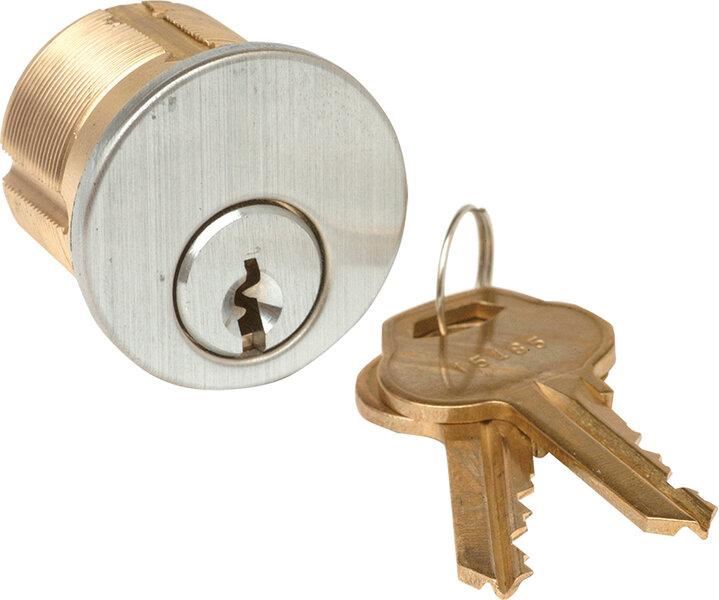

CM-CYL60-KA

Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454120243

Country of Origin:China

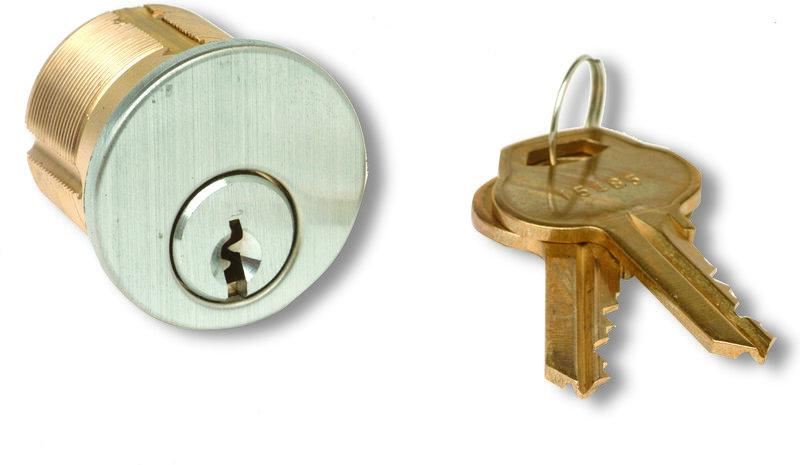

CM-CYL60-KD

Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed different

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454120250

Country of Origin:China

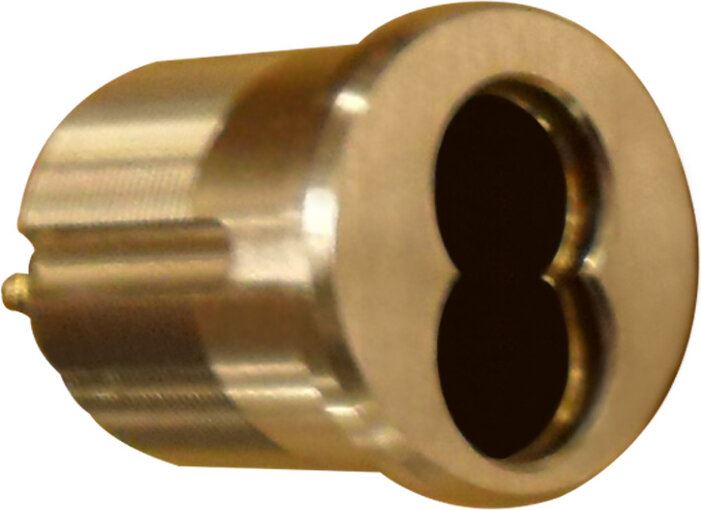

CM-307

Mortise cylinder housing for Best™ style IC core

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454156280

Country of Origin:USA

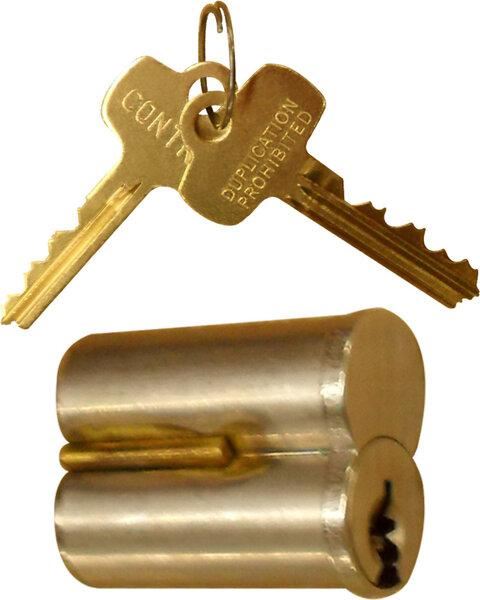

CM-308

Best™ style IC core, keyed different

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454157966

Country of Origin:USA

OPTIONS & FINISHES

Mortise Cylinder Options

-60KA

Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed alike (keyed alike cylinders only available when ordered at same time)

-60KD

Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed different

-307

Mortise cylinder housing for Best(tm) style IC core, mounted in key switch

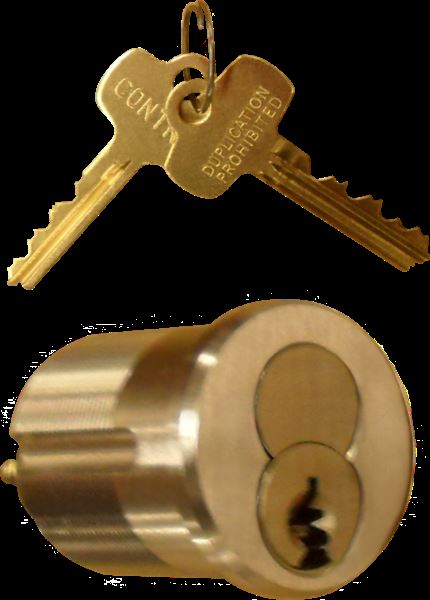

-309

Mortise cylinder housing and Best(tm) IC core, keyed different, mounted in key switch

LED Options

-7012

Red 12V LED mounted on faceplate

-70122

(2) Red 12V LED mounted on faceplate

-7024

Red 24V LED mounted on faceplate

-70242

(2) Red 24V LED mounted on faceplate

-7112

Green 12V LED mounted on faceplate

-71122

(2) Green 12V LED mounted on faceplate

-7124

Green 24V LED mounted on faceplate

-71242

(2) Green 24V LED mounted on faceplate

-7212

Red and Green 12V LEDs mounted on faceplate

-72122

(2) Red and Green 12V LEDs mounted on faceplate

-7224

Red and Green 24V LEDs mounted on faceplate

-72242

(2) Red and Green 24V LEDs mounted on faceplate

-7412

Amber 12V LED mounted on faceplate

-74122

(2) Amber 12V LED mounted on faceplate

-7424

Amber 24V LED mounted on faceplate

-74242

(2) Amber 24V (3 Wire) LED mounted on faceplate

-74242

(2) Amber 12V (3 Wire) LED mounted on faceplate

-7612

Bi-Color 12V (3 Wire) LED mounted on faceplate

-76122

(2) Bi-Color 12V (3 Wire) LED mounted on faceplate

-7624

Bi-Color 24V (3 Wire) LED mounted on faceplate

-76242

(2) Bi-Color 24V (3 Wire) LED mounted on faceplate

COMPATIBLE MOUNTING BOXES

Mounting Boxes & Accessories: Double Gang

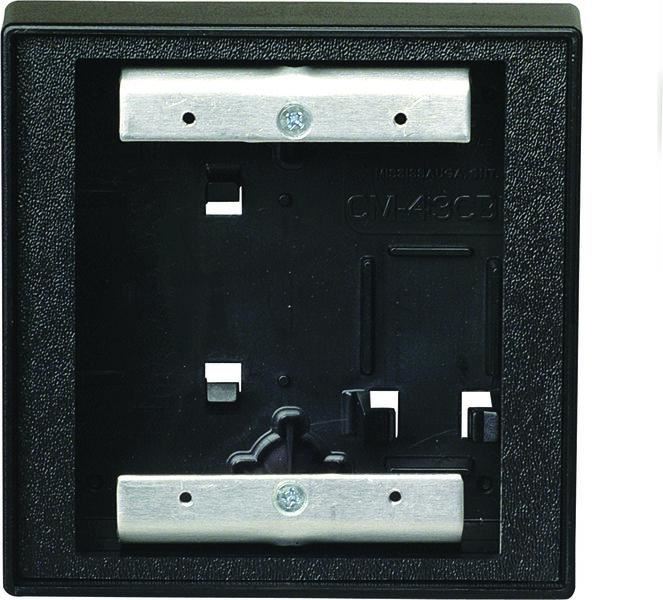

CM-53

Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS) CM-3200

COMPATIBLE MOUNTING POSTS

Switch Bollards (Posts): Clear Aluminum

CM-42-CSU

42" Tall, No switch prep, 6"x6" CM-3200

CM-42-BSU

42" Tall, (36" Switch Height) single gang prep, 6"x6" CM-3200

CM-48-BSU

48" Tall, (36” Switch Height) single gang prep, 6" x 6" CM-3200

CM-42-CSU

42" Tall, No switch prep, 6"x6" CM-3500

CM-48-BSU

48" Tall, (36” Switch Height) single gang prep, 6" x 6" CM-3500

CM-42-BSU

42" Tall, (36" Switch Height) single gang prep, 6"x6" CM-3500

Switch Bollards (Posts): Clear Aluminum

CM-42-BSU

42" Tall, (36" Switch Height) single gang prep, 6"x6" CM-3500

CM-42-CSU

42" Tall, No switch prep, 6"x6" CM-3500

CM-48-BSU

48" Tall, (36” Switch Height) single gang prep, 6" x 6" CM-3500
