CM-3000/3100 Series Illuminated Mushroom Pushbutton

CM-3000 Series mushroom push buttons are heavy duty push-buttons designed for industrial and commercial applications. Buttons are 1-5/8" (40mm) in diameter and are available in red or green. Bright LED illumination with long service life.

FEATURES

  • Large 1-5/8" (40mm) illuminated buttons
  • 1/4" thick cast aluminum faceplate
  • Super-bright LED illumination
  • Indoor/outdoor applications
  • 3 year warranty


See More


Specifications

SPECIFICATIONS
Voltage:12/24 VDC
Contact Rating:6 A @ 30 VDC
Std. Finish:Brushed Aluminum
Dimensions:
CM-3000:4-1/2" x 2-3/8" x 2-7/8"
(114mm x 70mm x 72mm)
CM-3100:4-1/2" x 1-3/4" x 2-7/8"
(114mm x 44mm x 72mm)
MODELS

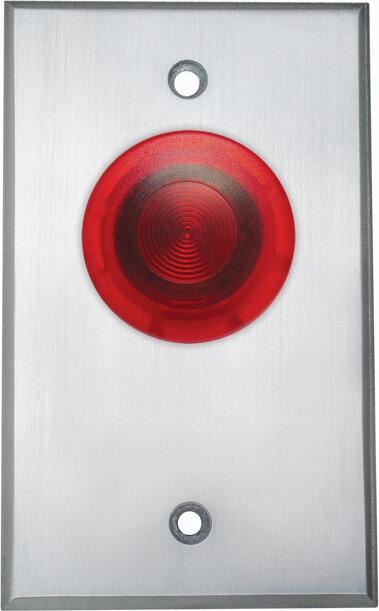

Single Gang Faceplate

CM-3000

Spring Return Button, N/O, Momentary

Dimensions: 4.00"L x 3.00"W x 4.75"H

Weight: 0.65lbs.

Country of Origin:Canada

CM-3010

Spring Return Button, N/C, Momentary

Dimensions: 4.00"L x 3.00"W x 4.75"H

Weight: 0.65lbs.

Country of Origin:Canada

CM-3020

Spring Return Button, N/O & N/C Momentary

Dimensions: 4.00"L x 3.00"W x 4.75"H

Weight: 0.65lbs.

Country of Origin:Canada

CM-3030

Push/Pull Button, N/O, Maintained

Dimensions: 4.00"L x 3.00"W x 4.75"H

Weight: 0.65lbs.

Country of Origin:Canada

CM-3040

Push/Pull Button, N/C, Maintained

Dimensions: 4.00"L x 3.00"W x 4.75"H

Weight: 0.65lbs.

Country of Origin:Canada

CM-3050

Push/Pull, N/O & N/C, Maintained

Dimensions: 4.00"L x 3.00"W x 4.75"H

Weight: 0.65lbs.

Country of Origin:Canada

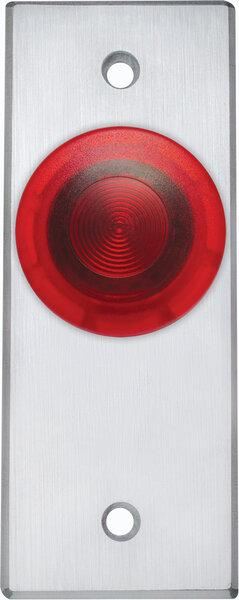

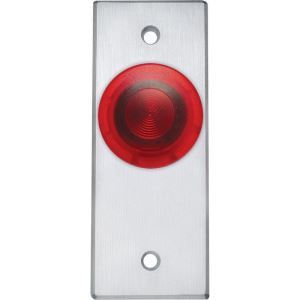

Narrow Faceplate

CM-3100

Spring Return Button, N/O, Momentary

Dimensions: 4.00"L x 3.00"W x 4.75"H

Weight: 0.62lbs.

Country of Origin:Canada

CM-3110

Spring Return Button, N/C, Momentary

Dimensions: 2.50"L x 3.25"W x 4.75"H

Weight: 0.6lbs.

Country of Origin:Canada

CM-3120

Spring Return Button, N/O & N/C, Momentary

Dimensions: 2.50"L x 3.25"W x 4.75"H

Weight: 0.6lbs.

Country of Origin:Canada

CM-3130

Push/Pull Button, N/O, Maintained, 12V

Dimensions: 2.50"L x 3.25"W x 4.75"H

Weight: 0.6lbs.

Country of Origin:Canada

CM-3140

Push/Pull Button, N/C, Maintained, 12V

Dimensions: 2.50"L x 3.25"W x 4.75"H

Weight: 0.6lbs.

Country of Origin:Canada

CM-3150

Push/Pull Button, N/O & N/C, Maintained, 12V

Dimensions: 2.50"L x 3.25"W x 4.75"H

Weight: 0.6lbs.

Country of Origin:Canada

OPTIONS & FINISHES

Button Color Options:

CM-xxxR

add 'R' to model # for Red button

CM-xxxG

add 'G' to model # for Green button

Faceplate Graphic Options

CM-xxx/2

Add /2 to model # for 'WHEELCHAIR' symbol, black

CM-xxx/3

Add /3 to model # for 'PUSH TO OPEN', black text

CM-xxx/3F

Add /3F to model # for 'POUSSEZ POUR OUVRIR', black text

CM-xxx/3S

Add /3S to model # for 'EMPUJE PARA ABRIR', black

CM-xxx/4

Add /4 to model # for 'WHEELCHAIR' symbol and 'PUSH TO OPEN', black text

CM-xxx/7

Add /7 to model # for 'PUSH TO EXIT', black text

CM-xxx/7F

Add /7F to model # for 'POUSSEZ POUR SORTIR', black

CM-xxx/8

Add /8 to model # for 'PUSH TO LOCK', black text

Button Engraved Graphic Options

CM-xxxE

Add E to product # for 'EXIT' engraved (in white)

CM-xxxES

Add ES to product # for the words EXIT and SORTIE engraved (in white)

CM-xxxS

Add S to product # for SORTIE engraved (in white)

CM-xxxESA

Add ESA to product # for the words EXIT and SALIDA engraved (in white)

CM-xxxH

Add H to product # for wheelchair symbol engraved (in white)

CM-xxxSA

Add SA to product # for SALIDA engraved (in white)

Faceplate Finishes

CM-xxx-BZ

Dark Bronze (Duranotic) finish, (BHMA 710 / 313AN)

COMPATIBLE MOUNTING BOXES

Mounting Boxes & Accessories: Narrow/Jamb

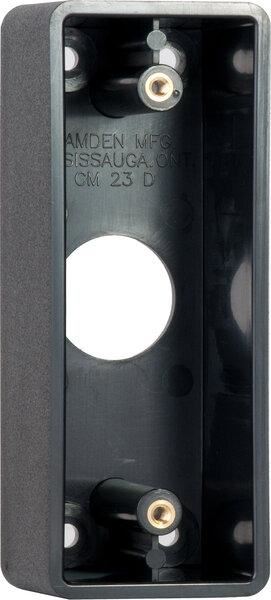

CM-23D

Surface Box, Deep - For wireless. Narrow/Jamb boxes for 3100 series switches

Mounting Boxes & Accessories: Single Gang

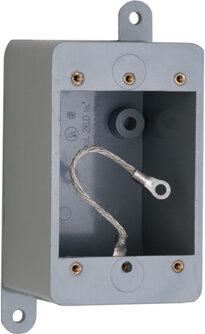

CM-34D

Surface Box, Extra Deep - For wireless. Heavy duty grey polymer Single Gang boxes for 3000 series switches

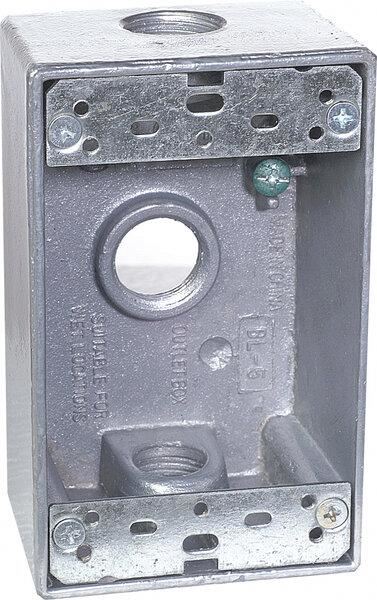

CM-34AL

Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 3000 series switches

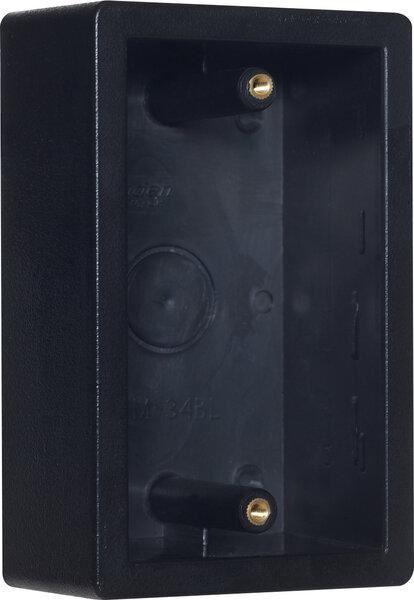

CM-34BL

Surface Box, Standard Depth. Double wall Single Gang boxes for 3000 series switches

CM-120G

Rubber gasket for any stainless steel single gang faceplate Single Gang boxes for 3000 series switches

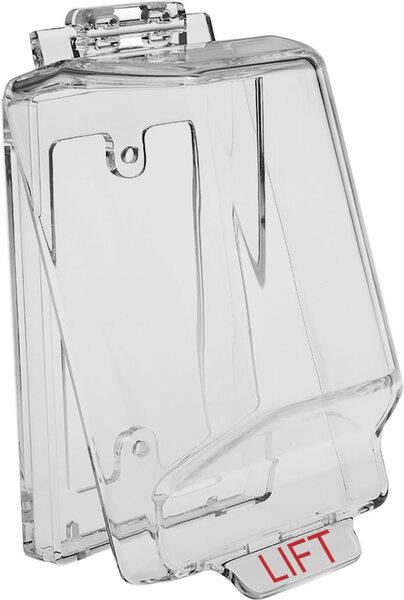

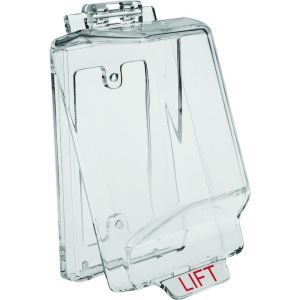

CM-CPC1

Vandal and weather resistant clear lift cover Single Gang boxes for 3000 series switches
