Camden Door Controls -CM-1100 & CM-2000 Series Cast Aluminum, Flush Mount

Camden vandal resistant key switches feature a 1/4" thick faceplate, with one-piece faceplate and switch bracket design. 1 or 2 contact switches can be mounted. Camden key switches offer the widest range of stock switch configurations in the industry.

Category: access control hardware | door switches | security door activators...

MasterFormat: Hardware | Door Hardware | Security Door Hardware...

View Product Details From Manufacturer

Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

CM-1100 & CM-2000 Series Cast Aluminum, Flush Mount

Note: Mortise cylinder sold separately. Scroll down and 'Click for More' Options/Finishes for the complete cylinder listing.

FEATURES

Indoor or outdoor flush applications
Accepts standard mortise cylinders (1" - 1-1/4")
Mullion style - only 1-3/4" wide
Heavy duty 1/4" thick aluminum plate
1 piece die cast construction
Locators prevent cylinder from spinning
Cylinder sits flush to faceplate
Tamper proof screws and driver provided
No set screw required
Provision for 2 internal switches
Heat shrink protective sleeve over contacts

See More

See Less

Specifications

SPECIFICATIONS

Contact Rating:	6 A @ 30 VDC
Switch Life:	100,000 cycles
Temp Range:	32°F to 85°F (0°C to +85°C)
Std. Finish:	Brushed Aluminum
Dimensions:
Single Gang Faceplate:	4-1/2" x 2-3/4" x 1-1/2" (114mm x 70mm x 42mm)

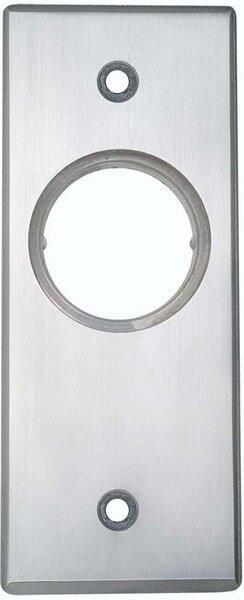

Narrow Faceplate:	4-1/2" x 1-3/4" x 1-1/2" (114mm x 44m x 42mm)

MODELS

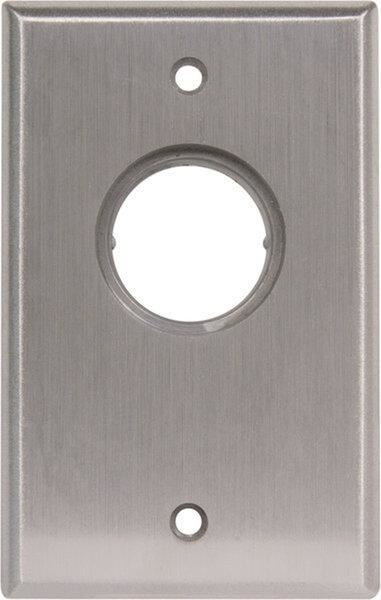

Single Gang Faceplate
	CM-1100	Key Switch, SPST Momentary N/O Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.47lbs. UPC:670454120618 Country of Origin:Canada
	CM-1105	Key Switch, SPST Momentary N/C Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.49lbs. UPC:670454120779 Country of Origin:Canada
	CM-1110	Key Switch, SPST Maintained Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.49lbs. UPC:670454120793 Country of Origin:Canada
	CM-1120	Key Switch, SPDT N/O & N/C Momentary Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.49lbs. UPC:670454120809 Country of Origin:Canada
	CM-1130	Key Switch, SPDT N/O & N/C Maintained Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.49lbs. UPC:670454120830 Country of Origin:Canada
	CM-1150	Key Switch (2) SPDT Momentary Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.51lbs. UPC:670454120892 Country of Origin:Canada
	CM-1160	Key Switch (2) SPDT Maintained Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.51lbs. UPC:670454120908 Country of Origin:Canada
	CM-1170	Key Switch, SPDT (1) Momentary & (1) Maintained Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.49lbs. UPC:670454120915 Country of Origin:Canada
	CM-1180	Key Switch, DPDT Momentary Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.49lbs. UPC:670454120939 Country of Origin:Canada
	CM-1182	Key Switch, (2) DPDT Momentary Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.49lbs. UPC:670454196583 Country of Origin:Canada
	CM-1190	Key Switch, DPDT Maintained Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.49lbs. UPC:670454120960 Country of Origin:Canada
	CM-1192	Key Switch, (2) DPDT Maintained Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.49lbs. UPC:670454186522 Country of Origin:Canada
Narrow Faceplate
	CM-2000	Key Switch, SPST Momentary, N/O Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.39lbs. UPC:670454121677 Country of Origin:Canada
	CM-2005	Key Switch, SPST Momentary, N/C Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.39lbs. UPC:670454121882 Country of Origin:Canada
	CM-2010	Key Switch, SPST Maintained Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.39lbs. UPC:670454121974 Country of Origin:Canada
	CM-2020	Key Switch, SPDT Momentary Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.39lbs. UPC:670454121981 Country of Origin:Canada
	CM-2030	Key Switch, SPDT Maintained Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.39lbs. UPC:670454122018 Country of Origin:Canada
	CM-2050	Key Switch, (2) SPDT Momentary Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.41lbs. UPC:670454122032 Country of Origin:Canada
	CM-2060	Key Switch, (2) SPDT Maintained Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.41lbs. UPC:670454122049 Country of Origin:Canada
	CM-2070	Key Switch, SPDT (1) Momentary & (1) Maintained Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.39lbs. UPC:670454122056 Country of Origin:Canada
	CM-2080	Key Switch, DPDT Momentary Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.39lbs. UPC:670454122063 Country of Origin:Canada
	CM-2082	Key Switch, (2) DPDT Momentary Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.39lbs. UPC:670454194725 Country of Origin:Canada
	CM-2090	Key Switch, DPDT Maintained Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.39lbs. UPC:670454122087 Country of Origin:Canada
	CM-2092	Key Switch, (2) DPDT Maintained Dimensions: 2.5"L x 3.25"W x 5.75"H Weight: 0.39lbs. UPC:670454187451 Country of Origin:Canada

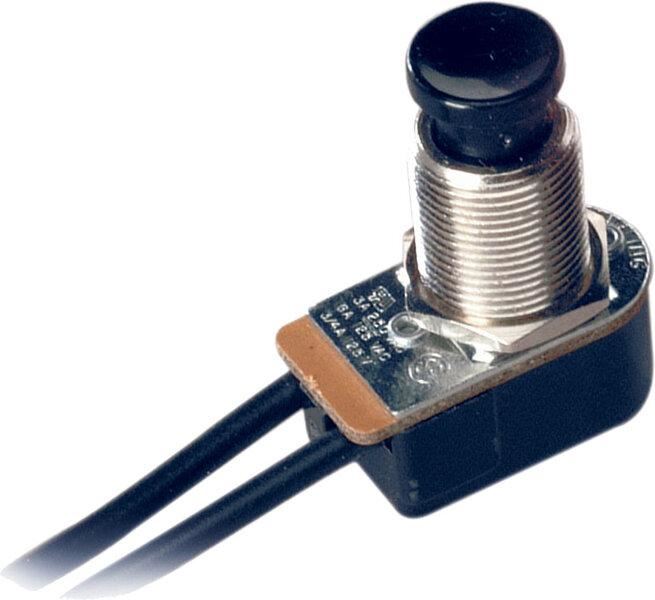

Heavy Duty Contacts (Sold Separately)
	CM-1000/31	SPST momentary contact switch, N/O, 15 A @ 30 VDC Dimensions: "L x "W x "H Weight: lbs. UPC:670456204088 Country of Origin:Canada
	CM-1000/37	SPST maintained contact switch, 15 A @ 30 VDC Dimensions: "L x "W x "H Weight: lbs. UPC:670456204118 Country of Origin:Canada
Mortise Cylinders (Sold Separately)

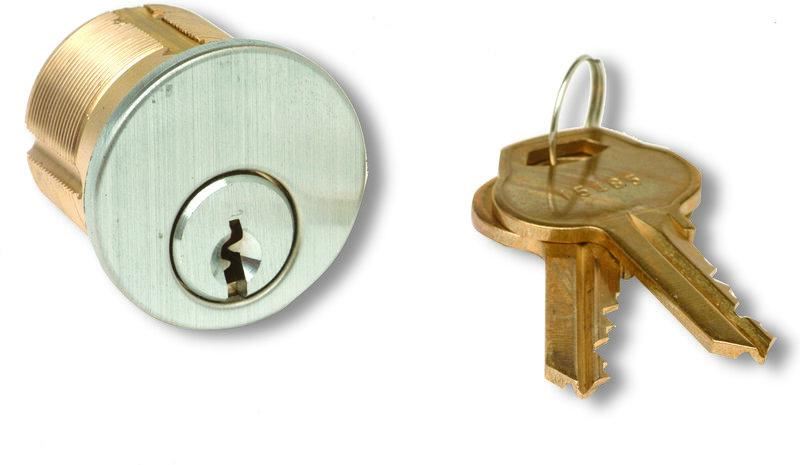

	CM-CYL60-KA	Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike) Dimensions: "L x "W x "H Weight: lbs. UPC:670454120243 Country of Origin:China

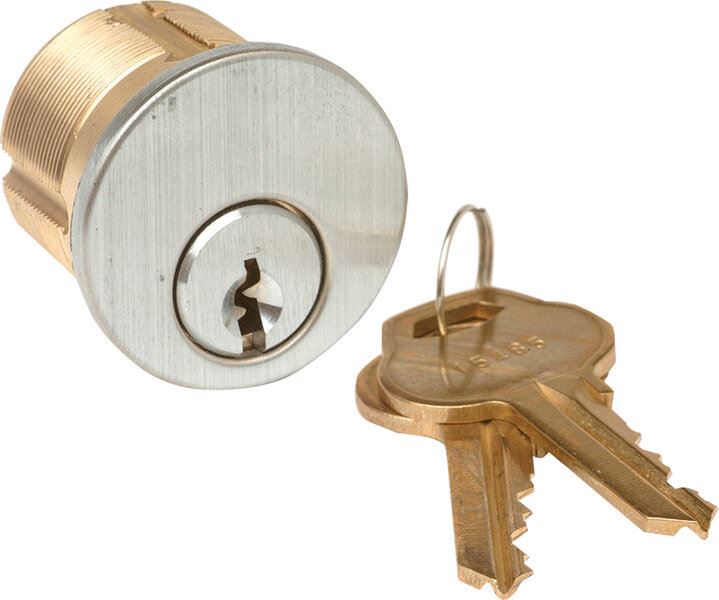

	CM-CYL60-KD	Mortise cylinder 1 1/8 inch, solid brass, chrome finish, keyed different Dimensions: "L x "W x "H Weight: lbs. UPC:670454120250 Country of Origin:China

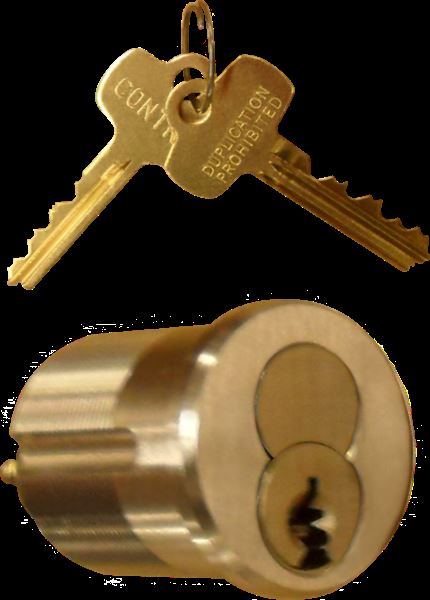

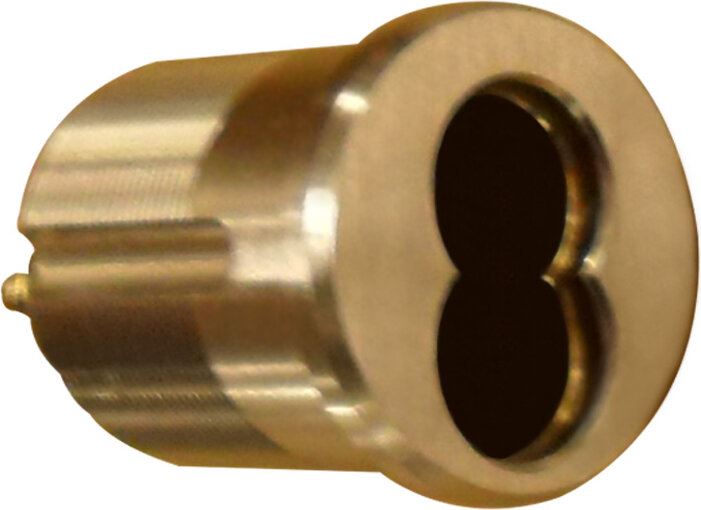

	CM-307	Mortise cylinder housing for Best(tm) style IC core Dimensions: "L x "W x "H Weight: lbs. UPC:670454156280 Country of Origin:USA

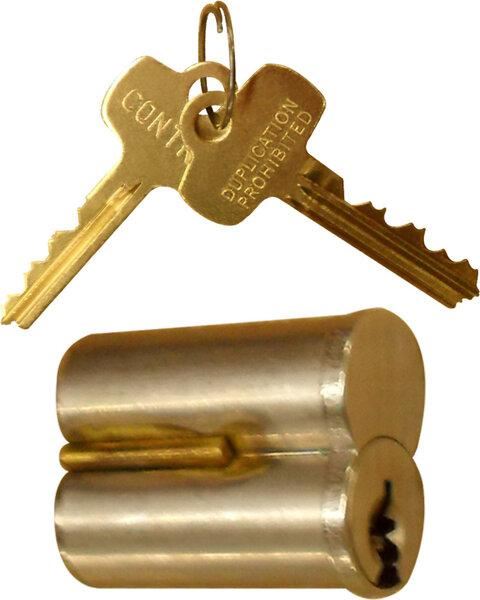

	CM-308	Best(tm) style IC core, keyed different Dimensions: "L x "W x "H Weight: lbs. UPC:670454157966 Country of Origin:USA

OPTIONS & FINISHES

Heavy Duty Contact Options
	-1000/31	SPST momentary contact switch, N/O, 15 A @ 30 VDC
	-1000/37	SPST maintained contact switch, 15 A @ 30 VDC
Mortise Cylinder Options
	-60KA	Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
	-60KD	Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed different
	-307	Mortise cylinder housing for Best(tm) style IC core, mounted in key switch
	-309	Mortise cylinder housing and Best(tm) IC core, keyed different, mounted in key switch
Faceplate Finishes
	CM-xxx-BZ	Dark Bronze (Duranotic) finish (BHMA 710 / 313AN)
LED Options

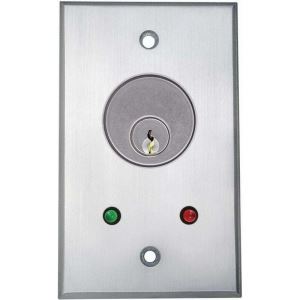

	-7012	Red 12V LED mounted on faceplate
	-70122	(2) Red 12V LED mounted on faceplate
	-7024	Red 24V LED mounted on faceplate
	-70242	(2) Red 24V LED mounted on faceplate
	-7112	Green 12V LED mounted on faceplate
	-71122	(2) Green 12V LED mounted on faceplate
	-7124	Green 24V LED mounted on faceplate
	-71242	(2) Green 24V LED mounted on faceplate
	-7212	Red and Green 12V LEDs mounted on faceplate
	-72122	(2) Red and Green 12V LEDs mounted on faceplate
	-7224	Red and Green 24V LEDs mounted on faceplate
	-72242	(2) Red and Green 24V LEDs mounted on faceplate
	-7412	Amber 12V LED mounted on faceplate
	-74122	(2) Amber 12V LED mounted on faceplate
	-7424	Amber 24V LED mounted on faceplate
	-74242	(2) Amber 24V (3 Wire) LED mounted on faceplate
	-7612	Bi-Color 12V (3 Wire) LED mounted on faceplate
	-76122	(2) Bi-Color 12V (3 Wire) LED mounted on faceplate
	-7624	Bi-Color 24V (3 Wire) LED mounted on faceplate
	-76242	(2) Bi-Color 24V (3 Wire) LED mounted on faceplate

COMPATIBLE MOUNTING BOXES

Mounting Boxes & Accessories: Single Gang

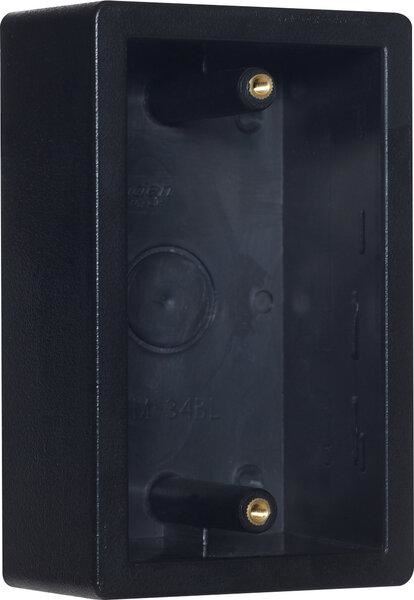

	CM-34BL	Surface Box, Standard Depth. Double wall CM-1100

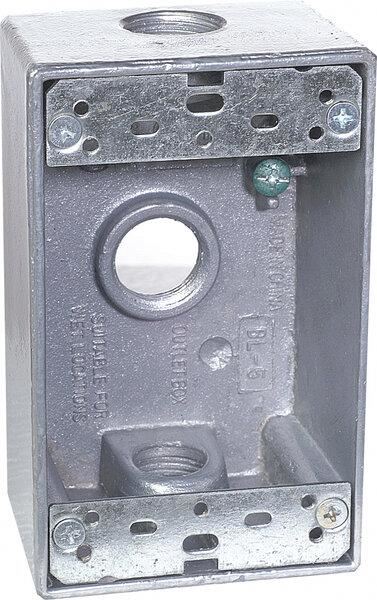

	CM-34AL	Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum CM-1100

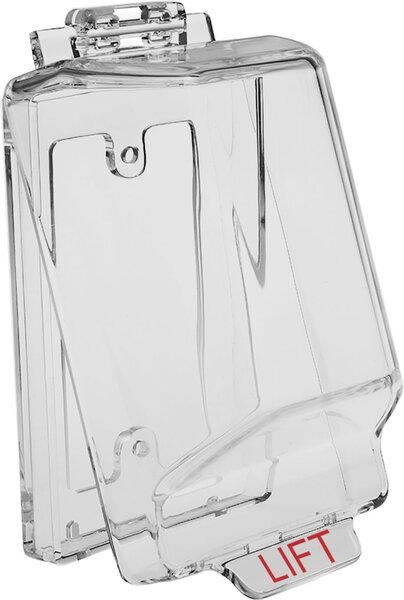

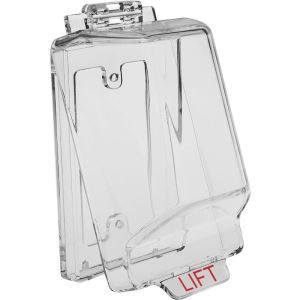

	CM-CPC1	Vandal and weather resistant clear lift cover CM-1100
Mounting Boxes & Accessories: Narrow/Jamb

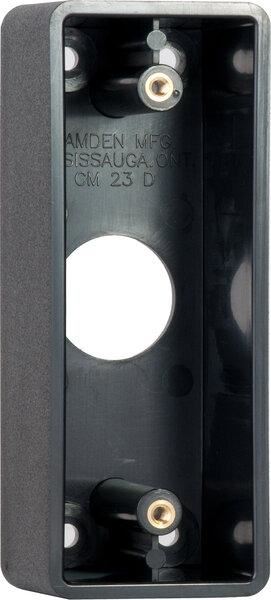

	CM-23D	Surface Box, Deep - For wireless. CM-2000
