Workstation Jib Crane - Bear Claw® BJIB Series

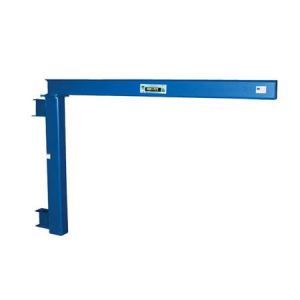

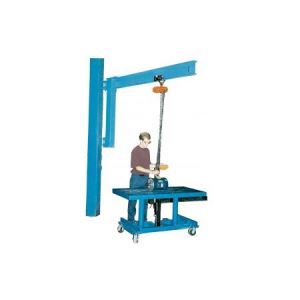

The Workstation Jib Crane is designed to assist workers in maneuvering and lifting awkward materials, as well as achieving maximum headroom in workplaces having low ceilings. The unit is available in floor-mounted, wall-mounted (for low ceilings), and tie rod jibs (for high ceilings). The -FM series rotates a full 360 degrees and the -LC and -HC units rotate 180 degrees. The wall-mounted unit features an I-beam length of 92" with a usable length of 80".
Product Details - Construction: The series features all-steel construction.

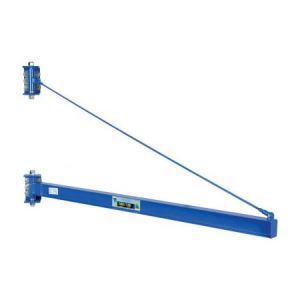

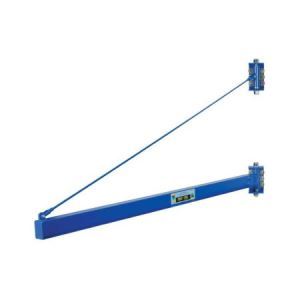

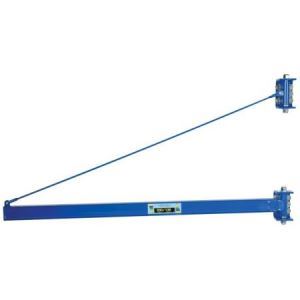

- Size: Tie rod jibs have an 86-1/4" overall length, an 82-1/4" or 76-3/4" cable support length and a 45-1/4" overall height. Wall jibs have a 57" height from I-beam to bottom frame and a 61" overall height. Floor mounted jibs have heights from 103" to 111".
- Installation: Note: All cranes are shipped disassembled. All products should be inspected frequently to ensure safe operation. Final testing and inspecting is left to the end user after final assembly has been completed. For further details see ASME B30.17.
- Weight: The Workstation Jib Crane is 144 lbs. to 742 lbs.
- Capacity: Models feature capacities ranging from 300 to 4,000 lbs.
- Options: Hoist and trolley are not included with the Workstation Jib Crane.
- Note: Testing, adjustments, training and scheduled maintenance procedures by others.
