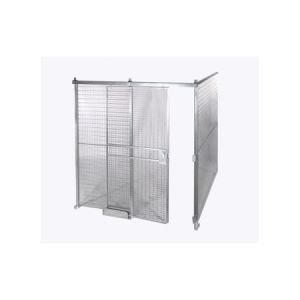

Beacon Industries, Inc. -Wire Mesh Partition - Beacon® Quick Series

DOWNLOADS

Wire Mesh Partitions are used in post offices, warehouses, retail stores and many other applications to store and secure important documents or inventory. These wire mesh panels and posts are used with Beacon's Quick fence series to construct a security cage.


Category: 105100 | mesh partitions | wire mesh partitions...

MasterFormat: Wire Mesh Partitions | Storage Specialties | Lockers...


View Product Details From Manufacturer


Beacon Industries, Inc.
12300 Old Tesson Road
St. Louis, MO 63128
Tel: (800) 454-7159
Fax: (314) 487-0100

sales@beacontechnology.com

https://www.beacontechnology.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Wire Mesh Partition - Beacon® Quick Series

Wire Mesh Partitions are used in post offices, warehouses, retail stores and many other applications to store and secure important documents or inventory. These wire mesh panels and posts are used with Beacon's Quick fence series to construct a security cage. Units are galvanized for a maintenance free system saving time and energy.

Product Details
  • Construction: Wire Mesh Partition is constructed with 10-gauge welded wire steel for a strong and secure environment.
  • Size: Grid openings for these units are 1-1/2” x 3”. Panel sizes vary from 8’ x 1’ up to 10’ x 5’. Partition posts are 2” x 2” with heights that range from 6’ to 12’.
  • Installation: This unit includes all hardware and instructions for quick installation. The unit is shipped knockdown.
  • Color: Units are galvanized for a sturdy and long life span with little to no maintenance.
  • Standard: Panels are easily stackable allowing users to create walls up to 25’ high allowing maximum protection.
  • Options: Options include service windows, roofs, multiple lock types and kits that allow panels to easily attach to walls.


See More


Specifications

Wire Mesh Partition - Quick Series
Model No.DescriptionGrid OpeningPanel Size (W x H)GaugePrice
1) B8x1Stackable Height Panel1½"x3"8'x1'8 gauge$177.44
2) B8x2Stackable Height Panel1½"x3"8'x2'8 gauge$217.83
3) B8x3Stackable Height Panel1½"x3"8'x3'8 gauge$258.44
4) B8x4Stackable Height Panel1½"x3"8'x4'8 gauge$297.08
5) B8x5Stackable Height Panel1½"x3"8'x5'8 gauge$363.96
6) B10x1Stackable Height Panel1½"x3"10'x1'8 gauge$221.66
7) B10x2Stackable Height Panel1½"x3"10'x2'8 gauge$272.29
8) B10x3Stackable Height Panel1½"x3"10'x3'8 gauge$319.71
9) B10x4Stackable Height Panel1½"x3"10'x4'8 gauge$363.62
10) B10x5Stackable Height Panel1½"x3"10'x5'8 gauge$433.79
Model No.DescriptionPost SizePost HeightBaseplate SizePrice
11) BP8-FLAT-OFFESTFlat Post with Offset2"x2"8'6"x6"-Baseplate$301.25
Model No.DescriptionHeightPrice
12) BXP1Extension Post1'$77.42
Wire Mesh Partition - Quick Fence
Model No.DescriptionPost SizePost HeightBaseplate SizePrice
13) BP10Universal Post2"x2"10'2"x6"-Flat Base$350.31
14) BP10-FLATFlat Post2"x2"10'6"x6"-Flat Base$377.84
15) BP12Universal Post2"x2"12'2"x6"-Baseplate$420.31
16) BP12-FLATFlat Post2"x2"12'6"x6"-Baseplate$445.13
17) BP6Universal Post2"x2"6'2"x6"-Flat Base$268.57
18) BP7Universal Post2"x2"7'2"x6"-Flat Base$272.35
19) BP8Universal Post2"x2"8'2"x6"-Flate Base$272.35
20) BP8-FLATFlat Post2"x2"8'6"x6"-Baseplate$297.08
Model No.DescriptionHeightPrice
21) BXP12Extension Post12'$456.40
22) BXP2Extension Post2'$77.42
23) BXP3Extension Post3'$123.75
24) BXP4Extension Post4'$123.75
25) BXP6Extension Post6'$216.60
26) BXP8Extension Post8'$304.32
Model No.DescriptionPrice
27) BCA8Ceiling Wall Angle-8' LongCall for Quote
28) BPXTPost Top Extension-To securely extend posts$134.06
29) BQFCC-9696" Capping Channel-Ties posts horizontally$104.01
30) BRSTRoof Support Center Tube-Per linear foot$41.30
31) BSWKService Window Kit-Provides thru door access$747.84
32) BTK-10Door Tansom Kit-For fitting 8' H door into 10' H frame$163.91
33) BTK-12Door Tansom Kit-For fitting 8' H door into 12' H frame$327.87
34) BWKWall Kit Attaches Panel to Wall$123.75
