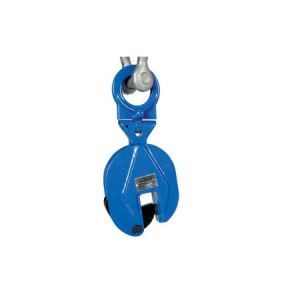

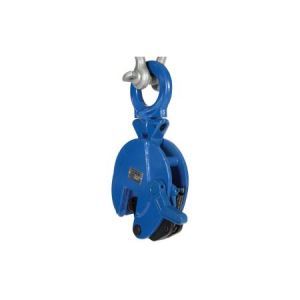

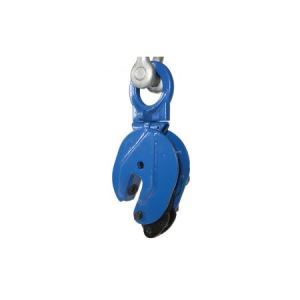

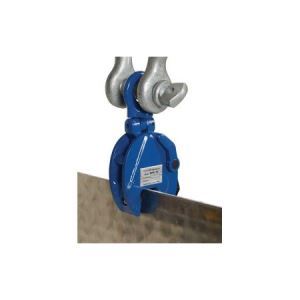

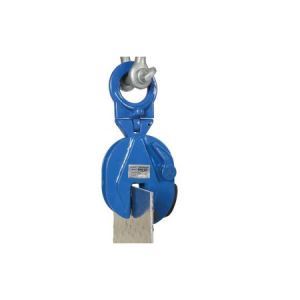

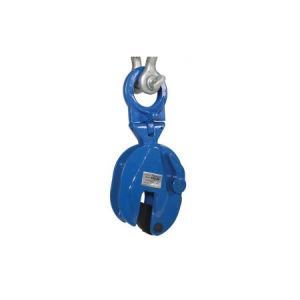

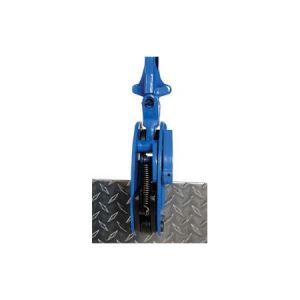

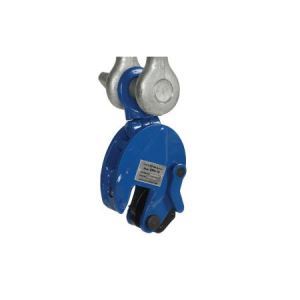

Vertical Plate Clamp - Bear Claw® BEPC Series

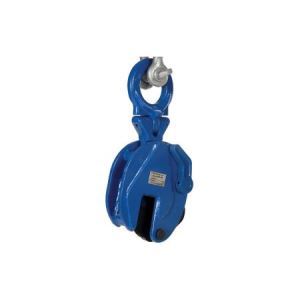

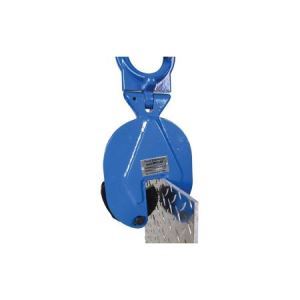

The Bear Claw® Vertical Plate Clamp is designed to firmly grip plate material for lifting. These vertical models feature automatic serrated hardened steel cams and pads. These units are made to accommodate a minimum plate thickness of 0" and a maximum plate thickness of 0.60", 0.75", 1", or 1.1".
Product Details - Size: These industrial models have bail openings ranging from 1.1" to 2.3" and throat depths of 1.6", 2.9", or 3".
- Color: This series features a Beacon blue powder coat finish.
- Weight: Vertical Plate Clamp models come in various weights ranging from 8 to 38 lbs.
- Capacities: Designed to meet ASME B30.20. Safety warning: Operator shall not exceed the work load limit capacity.
- Capacity: Vertical Plate Clamp units can lift a minimum of 20% of the working load limit and have maximum capacities of 1,000, 2,000, 4,000, or 6,600 lbs.
- Usage: Units may only lift one plate at a time. Plate should be free and clean of oil or silicone.
- Note: Ships with the sku number as the identifier.
