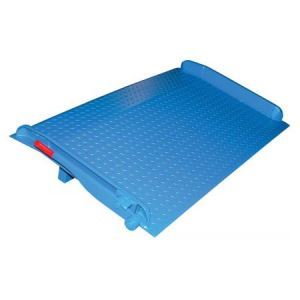

Beacon Industries, Inc. -Steel Dock Board - Beacon® BTS Series

DOWNLOADS

The safe Steel Dock Board features beveled edges on both ends for smooth entry and exit. The Trailer Dock Plate deck is diamond-plated for efficient, safe use. Locking legs minimize ramp movement and are uneven to enable the dock board to sit canted for better forklift floor pickup..


Category: dock boards | equipment | loading dock equipment...

MasterFormat: Vehicle and Pedestrian Equipment | Loading Dock Equipment


View Product Details From Manufacturer


Beacon Industries, Inc.
12300 Old Tesson Road
St. Louis, MO 63128
Tel: (800) 454-7159
Fax: (314) 487-0100

sales@beacontechnology.com

https://www.beacontechnology.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Steel Dock Board - Beacon® BTS Series

The safe Steel Dock Board features beveled edges on both ends for smooth entry and exit. The Trailer Dock Plate deck is diamond-plated for efficient, safe use. Locking legs minimize ramp movement and are uneven to enable the dock board to sit canted for better forklift floor pickup.. It also has welded safety curbs for maximum strength. This unit is made in compliance with OSHA.

Product Details
  • Construction: These models are constructed of high-strength (55,000 psi) steel for long life.
  • Size: Steel Dock Board units are available in a variety of widths ranging from 60" to 84" and in several lengths ranging from 36" to 72".
  • Weight: Available in a variety of weights ranging from 261 to 1,111 lbs.
  • Capacity: These units are available in service capacities ranging from 10,000 to 30,000 lbs.
  • Options: Optional accessories for the Steel Dock Board include removable pickup loops, span locks, and lifting chains.
  • Surcharge: Tariffs or surcharges may apply to current published pricing.


See More


Specifications

Steel Dock Board - BTS Series
Model No.Capacity (LBS)WidthLengthHt. Difference 11 Deg./19% (In)
1) BTS-10-60361000060"36"5
2) BTS-10-60481000060"48"7
3) BTS-10-60601000060"60"10
4) BTS-10-60721000060"72"12
5) BTS-10-66361000066"36"5
6) BTS-10-66481000066"48"7
7) BTS-10-66721000066"72"12
Steel Dock Board - BTS Series (continued)
Model No.Capacity (LBS)WidthLengthHt. Difference 11 Deg./19% (In)
8) BTS-10-72361000072"36"5
9) BTS-10-72481000072"48"7
10) BTS-10-72541000072"54"8½
11) BTS-10-72601000072"60"10
12) BTS-10-72721000072"72"12
13) BTS-10-84361000084"36"5
14) BTS-10-84481000084"48"7
15) BTS-10-84601000084"60"10
16) BTS-15-60361500060"36"5
17) BTS-15-60481500060"48"7
18) BTS-15-60601500060"60"10
19) BTS-15-60721500060"72"12
Steel Dock Board - BTS Series (continued)
Model No.Capacity (LBS)WidthLengthHt. Difference 11 Deg./19% (In)
20) BTS-15-66361500066"36"5
21) BTS-15-66481500066"48"7
22) BTS-15-66721500066"72"12
23) BTS-15-72361500072"36"5
24) BTS-15-72481500072"48"7
25) BTS-15-72541500072"54"8½
26) BTS-15-72601500072"60"10
27) BTS-15-72721500072"72"12
28) BTS-15-84361500084"36"5
29) BTS-15-84481500084"48"7
30) BTS-15-84601500084"60"10
Steel Dock Board - BTS Series (continued)
Model No.Capacity (LBS)WidthLengthHt. Difference 11 Deg./19% (In)
31) BTS-20-60362000060"36"5
32) BTS-20-60482000060"48"7
33) BTS-20-60602000060"60"10
34) BTS-20-60722000060"72"12
35) BTS-20-66362000066"36"5
36) BTS-20-66482000066"48"7
37) BTS-20-66722000066"72"12
38) BTS-20-72362000072"36"5
39) BTS-20-72482000072"48"7
40) BTS-20-72542000072"54"8½
41) BTS-20-72602000072"60"10
42) BTS-20-72722000072"72"12
Steel Dock Board - BTS Series (continued)
Model No.Capacity (LBS)WidthLengthHt. Difference 11 Deg./19% (In)
43) BTS-20-84362000084"36"5
44) BTS-20-84482000084"48"7
45) BTS-20-84602000084"60"10
46) BTS-25-60362500060"36"5
47) BTS-25-60482500060"48"7
48) BTS-25-60602500060"60"10
49) BTS-25-60722500060"72"12
50) BTS-25-66362500066"36"5
51) BTS-25-66482500066"48"7
52) BTS-25-66722500066"72"12
Steel Dock Board - BTS Series (continued)
Model No.Capacity (LBS)WidthLengthHt. Difference 11 Deg./19% (In)
53) BTS-25-72362500072"36"5
54) BTS-25-72482500072"48"7
55) BTS-25-72542500072"54"8½
56) BTS-25-72602500072"60"10
57) BTS-25-72722500072"72"12
58) BTS-25-84362500084"36"5
59) BTS-25-84482500084"48"7
60) BTS-25-84602500084"60"10
61) BTS-30-60363000060"36"5
62) BTS-30-60483000060"48"7
63) BTS-30-60603000060"60"10
64) BTS-30-60723000060"72"12
Steel Dock Board - BTS Series (continued)
Model No.Capacity (LBS)WidthLengthHt. Difference 11 Deg./19% (In)
65) BTS-30-66363000066"36"5
66) BTS-30-66483000066"48"7
67) BTS-30-66723000066"72"12
68) BTS-30-72363000072"36"5
69) BTS-30-72483000072"48"7
70) BTS-30-72603000072"60"10
71) BTS-30-72723000072"72"12
72) BTS-30-73043000072"54"8½
73) BTS-30-84363000084"36"5
74) BTS-30-84483000084"48"7
75) BTS-30-84603000084"60"10
