Beacon Industries, Inc. -Steel Bollards - Beacon® BBOL Series

DOWNLOADS

These safety Steel Bollards are utilized for indoor and outdoor security applications. Pipe Posts protect personnel, shoppers, work areas, commercial window fronts, roadways, or equipment environments from unwanted vehicle traffic access.


Category: barricades | industrial safety bollards | safety barriers...

MasterFormat: Safety Specialties | Parking Bumpers | Manufactured Site Specialties...


View Product Details From Manufacturer


Beacon Industries, Inc.
12300 Old Tesson Road
St. Louis, MO 63128
Tel: (800) 454-7159
Fax: (314) 487-0100

sales@beacontechnology.com

https://www.beacontechnology.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

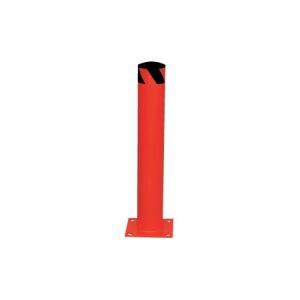

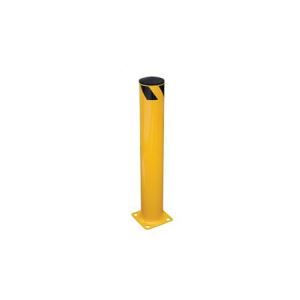

Steel Bollards - Beacon® BBOL Series

These safety Steel Bollards are utilized for indoor and outdoor security applications. Pipe Posts protect personnel, shoppers, work areas, commercial window fronts, roadways, or equipment environments from unwanted vehicle traffic access. This unit helps restrict protected areas for parking lots, sidewalks, side and front of building exterior and interiors. They are commonly used at dock doors and personnel doors. May reduce insurance premiums-check with your insurance representative regarding your bollard application program.

Product Details
  • Construction: Steel Bollards are constructed of heavy-duty welded steel.
  • Size: Models are available in various heights ranging from 24" to 72". Outer diameters range from 1-3/4" to 8-1/2".
  • Installation: Concrete anchor bolts are sold separately in packs of 1 or 4. (BBOL-xx2 receives 3/8" anchor sleeve diameter), (BBOL-xx4.5, BBOL-xx5.5, BBOL-xx6.5 and BBOL-xx8.5 receives 3/4" anchor sleeve diameter). Customer must determine correct length for anchoring application.
  • Color: Units are powder coated with a Beacon safety yellow or Beacon red finish. Many other color options are available; contact Beacon for details.
  • Weight: Models weigh from 5 to 63 lbs. Special sizes available.
  • Standard: Base plates include four pre-drilled mounting holes.
  • Options: Steel Bollards are available with or without caps. Rubber caps are removable on the 4-1/2" and 5-1/2" diameter units. Steel caps are welded on the 1-3/4" diameter units. Mounting kits and replacement caps are available.


See More


Specifications

Steel Bollards - BBOL Series
Model No.Powder CoatHeightDiameterBase Plate (W x L)Price
1) BBOL-36-6.5Yellow36"6.5"8"x8"$166.19
2) BBOL-42-6.5Yellow42"6.5"8"x8"$222.02
3) BBOL-48-6.5Yellow48"6.5"8"x8"$207.72
4) BBOL-62-6.5Yellow62"6⅝"8"x8"$245.08
5) BBOL-72-6.5Yellow72"6⅝"8"x8"$300.94
6) BBOL-36-8.5Yellow36"8.5"10"x10"$242.25
7) BBOL-42-8.5Yellow42"8.5"10"x10"$243.59
8) BBOL-48-8.5Yellow48"8.5"10"x10"$246.46
9) BBOL-24-5.5Yellow24"5.5"8"x8"$94.54
10) BBOL-24-5.5-REDRed24"5.5"8"x8"$94.41
11) BBOL-36-5.5Yellow36"5.5"8"x8"$124.52
12) BBOL-36-5.5-REDRed36"5.5"8"x8"$124.52
13) BBOL-42-5.5Yellow42"5.5"8"x8"$133.13
14) BBOL-42-5.5-REDRed42"5.5"8"x8"$133.26
15) BBOL-48-5.5Yellow48"5.5"8"x8"$203.55
16) BBOL-62-5.5Yellow62"5.5"8"x8"$223.56
17) BBOL-72-5.5Yellow72"5.5"8"x8"$290.93
Steel Bollards - BBOL Series (continued)
Model No.Powder CoatHeightDiameterBase Plate (W x L)Price
18) BBOL-24-4.5Yellow24"4.5"8"x8"$87.42
19) BBOL-24-4.5-REDRed24"4.5"8"x8"$87.40
20) BBOL-36-4.5Yellow36"4.5"8"x8"$101.58
21) BBOL-36-4.5-REDRed36"4.5"8"x8"$101.61
22) BBOL-42-4.5Yellow42"4.5"8"x8"$118.79
23) BBOL-42-4.5-REDRed42"4.5"8"x8"$118.95
24) BBOL-48-4.5Yellow48"4.5"8"x8"$169.15
25) BBOL-62-4.5Yellow62"4.5"8"x8"$209.15
26) BBOL-72-4.5Yellow72"4.5"8"x8"$270.88
27) BBOL-24-2Yellow24"1.75"4"x4"$68.75
28) BBOL-36-2Yellow36"1.75"4"x4"$84.46
29) BBOL-42-2Yellow42"1.75"4"x4"$97.34
30) BBOL-48-2Yellow48"1.75"4"x4"$101.60
OPTION
Model No.DescriptionSleeve DiameterOverall LengthSleeve LengthFor Use WithPrice
31) BAS-383Concrete Anchor Bolts Installation Hardware (Single)⅜"3"1"BBOL-24-2, BBOL-36-2, BBOL-42-2, BBOL-48-2 utilizes ⅜" anchor dimeter sleeve.$12.39
32) BAS-344Concrete Anchor Bolts Installation Hardware (Single)¾"4¼"2"BBOL-xx4.5, BBOL-xx5.5, BBOL-xx6.5 and BBOL-xx8.5 utilizes ¾" anchor diameter sleever.$13.77
33) BAS-346Concrete Anchor Bolts Installation Hardware (Single)¾"6¼"3"BBOL-xx4.5, BBOL-xx5.5, BBOL-xx6.5 and BBOL-xx8.5 utilizes ¾" anchor diameter sleever.$16.53
34) BAS-383-4PKConcrete Anchor Bolts Installation Hardware (4-Pack)⅜"3"1"BBOL-24-2, BBOL-36-2, BBOL-42-2, BBOL-48-2 utilizes ⅜" anchor dimeter sleeve.$17.90
35) BAS-344-4PKConcrete Anchor Bolts Installation Hardware (4-Pack)¾"4¼"2"BBOL-xx4.5, BBOL-xx5.5, BBOL-xx6.5 and BBOL-xx8.5 utilizes ¾" anchor diameter sleever.$27.57
36) BAS-346-4PKConcrete Anchor Bolts Installation Hardware (4-Pack)¾"6¼"3"BBOL-xx4.5, BBOL-xx5.5, BBOL-xx6.5 and BBOL-xx8.5 utilizes ¾" anchor diameter sleever.$48.13
