Beacon Industries, Inc. -Stacker Hand Truck - Beacon® BSL-AA Series

DOWNLOADS

The Stacker Hand Truck - Walkie Pallet Lifter features the ability to raise and lower products quick and easy. This unit has the ability to raise much higher than the standard pallet truck. Units feature a standard pulling handle which facilitates easy maneuvering.


Category: commercial materials handling systems | hand trucks | specialty equipment...

MasterFormat: Commercial Equipment | Piece Material Handling Equipment | Conveyors


View Product Details From Manufacturer


Beacon Industries, Inc.
12300 Old Tesson Road
St. Louis, MO 63128
Tel: (800) 454-7159
Fax: (314) 487-0100

sales@beacontechnology.com

https://www.beacontechnology.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

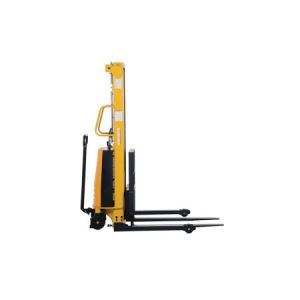

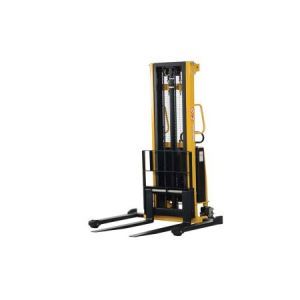

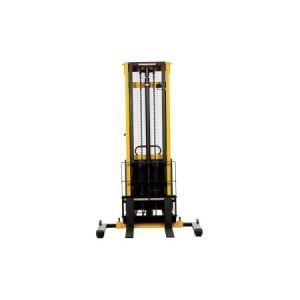

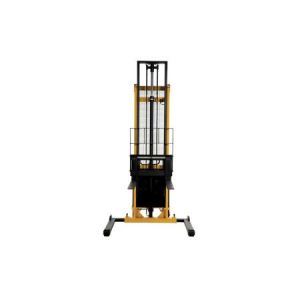

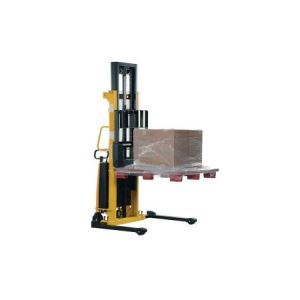

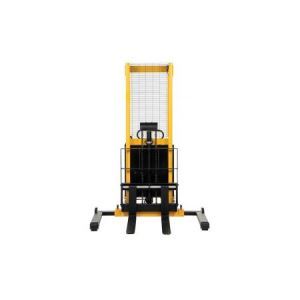

Stacker Hand Truck - Beacon® BSL-AA Series

The Stacker Hand Truck - Walkie Pallet Lifter features the ability to raise and lower products quick and easy. This unit has the ability to raise much higher than the standard pallet truck. Units feature a standard pulling handle which facilitates easy maneuvering. An available option to reduce worker fatigue and injury is the Power Traction Drive System (PTDS).

Product Details
  • Construction: This series is designed with adjustable or fixed forks and adjustable or fixed support legs depending on the model you choose.
  • Service Range: Units have lowered heights of 1-3/8" up to 3-3/8" and raised heights from 63" up to 150".
  • Overall Length: The overall length of the fork measures 42 inches.
  • Overall Fork Width: Each unit has an overall fork width of 8" up to 26-3/4 ". Individual forks are 4" up to 5-9/10" wide.
  • Powered: Powerful 24V, 140Ah battery, includes charger and battery level gauge.
  • Operation: Manual push with power lift.
  • Capacity: 2,000 lbs.
  • Standard: Models with suffix -AA are able to lift both pallets and skids with open and closed bottoms. Models with suffix -FF work only with skids.
  • Options: The Stacker Hand Truck has optional hand controls, solid deck platforms, and power traction drive systems (factory installed) available.
  • Note: The PTDS includes: (1) 12V battery, an auto reverse emergency "belly switch", combination throttle / direction butterfly style controller, and an adjustable steering yoke.


See More


Specifications

Stacker Hand Truck - Adjustable Forks & Support Legs - BSL-AA Series
Model No.Service RangeCapacity (0" to 63")Capacity (63" to 118")Capacity (118" to 150")For Use WithPrice
1) BSL-63-AA2⅛" to 63"2,000 lbs.--Skids or Pallets$7,500.15
2) BSL-118-AA1⅜" to 118"2,000 lbs.1,500 lbs.-Skids or Pallets$8,395.32
3) BSL-137-AA1⅜" to 137"2,000 lbs.1,500 lbs.1,000 lbs.Skids or Pallets$9,509.57
4) BSL-137-AA-PTDS2⅛" to 137"2,000 lbs--Skids or Pallets$12,311.65
5) BSL-150-AA2⅛" to 150"2,000 lbs.1,500 lbs.118" to 137" 1,000 lbs. 137" to 150" 750 lbs.Skids or Pallets$10,015.24
Stacker Hand Truck - Fixed Forks over Fixed Support Legs - BSL-FF Series
Model No.Service RangeCapacity (0" to 63")Capacity (63" to 118")Capacity (118" to 150")For Use WithPrice
6) BSL-63-FF3⅜" to 63"2,000 lbs.--Skids Only$6,713.54
7) BSL-118-FF3⅜" to 118"2,000 lbs.1,500 lbs.-Skids Only$8,404.22
OPTION
Model No.DescriptionPrice
8) BSL-DKSolid PlatformCall for Quote
9) BSL-HCHand Control$337.53
