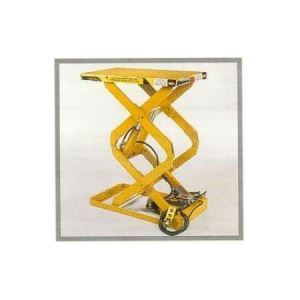

Small Scissor Lift - Beacon® BCDL Series
The high-speed Small Scissor Lift technology is an electro-hydraulic unit that raises work materials to an ergonomically proper height for the worker. This Table Lift is supplied with standard straight toe guards for surface mounting. If pit mounting is required, please specify when ordering, and tapered toe guards will be supplied at no charge. Call Beacon for optional electric toe guard pricing. The unit also has degreased surfaces that are oxide-primed and finished with 2 enamel coats.
Product Details - Construction: Each unit features steel construction.
- Projection: For optional beveled toe guards add 8" to the width and length. For optional straight toe guards with electric toe guard tape switch add 4" to the width and length. Specify the option during quoting for special pricing.
- Size: This series has a standard platform size of 18" x 36" and a maximum platform size of 30" x 60". The base frame is 18" x 36."
- Service Range: This series has a service range of 7" lowered to a 43" raised height.
- Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric properties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
- Weight: The models come in shipping weights of 250, 295, 320, or 340 lbs.
- Capacity: Models feature capacities of up to 2,000 lbs. evenly distributed.
- Standard: The Small Scissor Lift comes standard with a 10' power cord (connector plug not included).
- Limited Warranty: To keep the warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size and must keep with a uniformly distributed load.
- Usage: This item is made to order; therefore, delivery times are not guaranteed. Production schedules may fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary and lead times are quoted as approximate only. A signed approval drawing is required prior to production. Freight, site preparation, installation and training are not included. The customer is responsible for ensuring the correctness of fit.
- Note: Testing, adjustments, training and scheduled maintenance procedures by others.
