Self Dumping Hopper - Beacon® BD Series

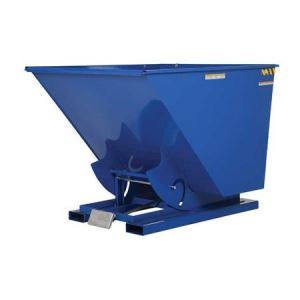

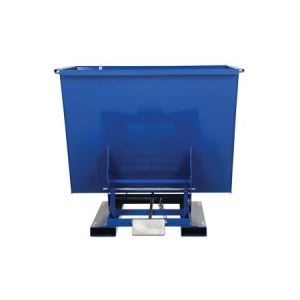

Self Dumping Hopper - Forklift Hopper with bumper release automatically dump when bumper makes contact. This unit automatically returns to original position and locks back into place. Beacon models are manufactured with fork pockets for easy mobility with a fork truck.
Product Details - Models: These industrial models have several variations: 12 gauge steel constitutes a light duty (-LD) hopper, 10 gauge indicates a medium duty (-MD) steel hopper and 8 gauge steel signifies a heavy duty (-HD) hopper.
- Construction: The units are constructed of high quality steel with robotic welds to make them leak-proof. Models BD-33, BD-50, BD-75, and BD-100 are stackable if the top hopper is turned 90 degrees from the bottom.
- Size: The fork pockets are 7-1/2" wide x 2-1/2" high. The base fork pockets are 3/16" thick. Models range in width from 26" to 92", in depth from 52" to 69", and in height from 38" to 52-1/2".
- Color: The units have a powder coated blue finish. Contact Beacon for more optional color code finishes, including Beacon yellow, white, grey, blue, green, red, orange, and galvanized. Galvanized finishes are suitable for wet environments.
- Weight: Models range in weight from 360 to 1,110 lbs.
- Capacity: These Scrap Hopper models feature capacities of 2,000, 4,000, or 6,000 lbs. Volume capacities range from 1/3 to 3-1/2 cubic yards.
- Standard: All Self Dumping Hopper units come standard with a locking chain to secure the hopper to the fork truck. Cable is also supplied to provide manual dumping of the hopper.
- Options: Optional caster, finishes, and a sideways tilt option and lifting lugs are available for the Self Dumping Hopper. The tilt option is available for only BD-75 and BD-100 models. Customer must have prior permission from fork truck manufacturer.
- Usage: Special leak proof design sold separately.
- Note: All standard and special hoppers are stitch welded. Special continuous welds for liquid tight available at additional charge.
