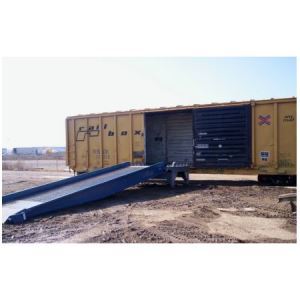

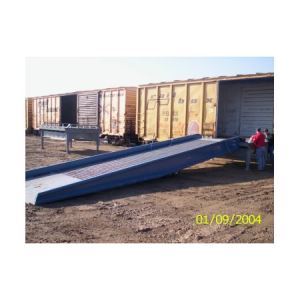

Beacon Industries, Inc. -Railcar Loading Ramp - Beacon® BSYS Series

DOWNLOADS

The Railcar Loading Ramp - Railroad Yard Ramps assist in loading and unloading of railcars in the field. They bridge the gap between the car and the ground for easy access.


Category: access ramps | commercial ramps | crossover ramps...

MasterFormat: Plastic Fabrications | Plastic and Rubber Ramps* | Loading Dock Seals and Shelters...


View Product Details From Manufacturer


Beacon Industries, Inc.
12300 Old Tesson Road
St. Louis, MO 63128
Tel: (800) 454-7159
Fax: (314) 487-0100

sales@beacontechnology.com

https://www.beacontechnology.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Railcar Loading Ramp - Beacon® BSYS Series

The Railcar Loading Ramp - Railroad Yard Ramps assist in loading and unloading of railcars in the field. They bridge the gap between the car and the ground for easy access.

Product Details
  • Construction: Heavy-duty welded steel construction.
  • Projection: Safety curbs are 8" on each side.
  • Size: The size ranges from 30' or 36' in length. The 30' model is straight and the 36" model has a 6' level off.
  • Operation: Dual pneumatic 18" hard rubber tire operation is standard.
  • Capacities: Each Railcar Loading Ramp unit has a dynamic capacity range from 16,000 lbs. to 60,000 lbs. to assist in loading.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.


See More


Specifications

Railcar Loading Ramp - BSYS Series
Model No.Capacity (LBS)Overall WidthUsable WidthLengthPrice
1) B16SYS703016,00070"64"30'$12,723.39
2) B16SYS843016,00084"78"30'$14,614.48
3) B20SYS703020,00070"64"30'$14,018.08
4) B20SYS843020,00084"78"30'$16,696.17
5) B25SYS703025,00070"64"30'$15,997.89
6) B25SYS843025,00084"78"30'$19,137.66
7) B30SYS703030,00070"64"30'$17,640.89
8) B30SYS843030,00084"78"30'$18,537.97
Railcar Loading Ramp Platform - BSYS Series
Model No.Capacity (LBS)Overall WidthLengthPrice
9) B16SP8816,0008'8'$7,999.77
10) B16SP81016,0008'10'$8,587.96
11) B16SP81216,0008'12'$11,995.54
12) B20SP8820,0008'8'$8,951.06
13) B20SP81020,0008'10'$10,567.78
14) B20SP81220,0008'12'$11,039.32
15) B25SP8825,0008'8'$9,831.71
16) B25SP81025,0008'10'$12,289.64
17) B25SP81225,0008'12'$14,911.87
18) B30SP8830,0008'8'$9,493.25
19) B30SP81030,0008'10'$12,495.02
20) B30SP81230,0008'12'$14,994.02
OPTION
Model No.DescriptionPrice
21) BSPPOCKETPlatform Forklift Pockets$865.86
22) BSADKLEGAdjustable Legs for Platforms - Set of 4$2,129.33
