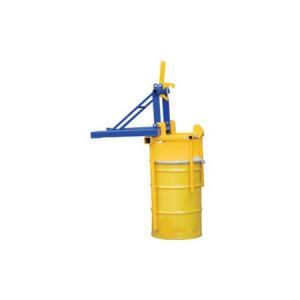

Rack Drum Positioner - Beacon® BDRUM-P Series

Rack Drum Positioner - Forklift Barrel Racker invert drums to the horizontal position with the use of a fork truck. The positive latching system ensures the safe handling of drums. BDRUM-P-55 and BDRUM-P-30 positioners accept only steel drums.

• Construction: This series features heavy-duty welded steel construction.
• Size: These models have fork pocket openings measuring 7-1/2" wide x 2-1/2" high, usable on 20-1/2" centers.
• Overall Width: Models have an overall width of 32-1/2" and an overall height of 32-7/16".
• Overall Length: Rack Drum Positioner units are 75" long.
• Color: Units are powder coated Beacon blue and Beacon yellow.
• Weight: 315 or 318 lbs.

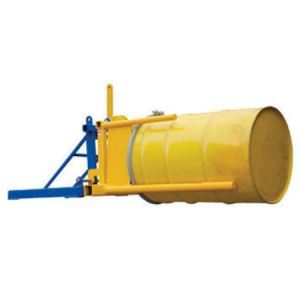

• Operation: These units rely on a fork truck to rotate and lift drums. Simply slide the positioner extension over the vertical drum and rotate the drum to a horizontal position. A welded spacer protects drum fixtures from damage during rotation.
• Capacity: Rack Drum Positioner units feature an 800 lb. capacity.
• Note: In addition to rotating drums to the horizontal racking position, this series also enables removal of drums from the rack and rotating them to the stand-up vertical position.
