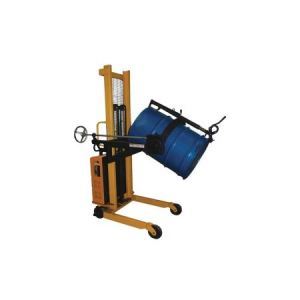

Portable Drum Rotator - Beacon® BDRUM-LRT Series
Portable Drum Rotator - Barrel Transporter are designed to be portable. The rotator can lock into position, making it a versatile stationary or portable piece of equipment. This series is designed for use with 55 gallon steel drums and fiber drums 22" in diameter. These units can lift drums with a dump height of 67".
Product Details - Models: The different model numbers range of manual operation to full powered drive and lift.
- Construction: The units feature steel construction.
- Size: Units feature an overall width of either 33 up to 36-1/4", a depth of 52" to 61".
- Powered: The BDRUM-LRT-DC features a 12V lift battery with manual hand crank rotation. The BDRUM-LRT-DC-II has a 24V DC powered rotation along with a 24V DC lifting mechanism. These units feature an on-board charger. BDRUM-LRT-AIR is powered by air.
- Power: The full powered Portable Drum Rotator BDRUM-LRT-DC-SCL includes 2x12V, 70-85 Ah lead acid batteries, integral battery charger and level gauge. Powered Scale with AA batteries include automatic turn off +/1 0.5 lbs. accuracy. AC adapter included.
- Color: Units are powder-coated Beacon yellow.
- Weight: Unites range from 519 lbs. to 900 lbs.
- Operation: BDRUM-LRT: A geared hand crank controls the 360 degree rotation. BDRUM-LRT-DC-II has a 24 V DC mechanical 360 degree powered rotation. BDRUM-LR-DC-SCL: Fully powered drive, lift and rotation with drum scale. Incudes disc brake and auto dead man control.
- Capacity: BDRUM series has a capacity of 550 lbs.
- Materials: The BDRUM-LRT and BDRUM-LRT-II series are designed with a manual hand pump for lifting drums and a hand crank to rotate them. The BDRUM-LRT-II series has straddle legs that pivot to access drums on pallets. Portable Drum Rotator legs pivot manually and have a locking pin.
- Note: Minor assembly of this unit is required.
