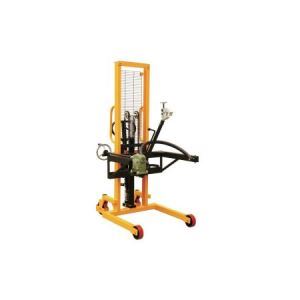

Portable Drum Lift - Beacon® BDRUM-LRT-EC Series
The Portable Drum Lift - Drum Lifter Rotator is excellent for use in transporting drums to and from racks, as well as lifting and rotating them up to 120 degrees. These units feature either a clamp-style cradle (BDRUM-LRT-EC) that grips around the barrel or a steel jaw (BDRUM-LRT-ESJ) to grip to the top of the barrel. Units are designed to work with 55-gallon steel drums only. To avoid spills, barrels may be locked in the vertical position, and to drain with a faucet, drums may be locked in a horizontal position.
Product Details - Construction: Units feature steel construction.
- Size: BDRUM-LRT-EC are 31.5" wide x 52.12" long x 77.18" high. BDRUM-LRT-ESJ are 40" wide x 44" long x 78" high
- Service Range: BDRUM-LRT-EC features 59" raised height and the BDRUM-LRT-ESJ features a 53" raised height .
- Color: Portable Drum Lift units feature a Beacon yellow painted finish.
- Weight: 450 lbs.
- Operation: Rotation is controlled with a manual hand crank to tilt up to 120 degrees. Height is controlled with a manual foot pump.
- Capacity: 550 lbs. capacity uniform load.
- Standard: Portable Drum Lift units come standard with two rigid front casters, 6" x 2" and two swivel rear casters, 7" x 2". Casters feature poly-on-steel construction.
- Note: Testing, adjustments, training and scheduled maintenance procedures by others.
