Overview

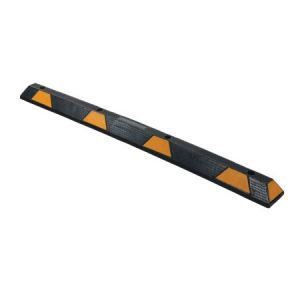

Parking Curb - Beacon® BCS Series

The Car Stop Curb - Plastic Vehicle Stop helps to protect people and property by working to control drivers. These units don't require costly maintenance or painting and are available in many colors to enable parking lot and parking garage color coding.

Product Details
  • Construction: The lightweight recycled plastic construction resists marring by salt, oil, sunlight, and chemicals and resists rotting, corrosion, and termite damage suffered by wooden curbs.
  • Size: Units range in width from 5-13/16" up to 9-3/4", in height from 3-1/4" to 6-3/4", and in length from 47-5/8" up to 93-11/16".
  • Installation: Parking Curb units feature easy, one-person installation.

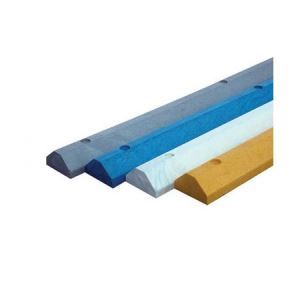

  • Color: Models are available in yellow, blue, gray, or white.
  • Weight: Units weigh from 18 to 111 lbs.
  • Standard: Units have 2, 3, or 4 mounting holes. Please select corresponding mounting kits.
  • Options: Asphalt, concrete, and glue-down hardware kits sold separately. Asphalt kits include spike and butyl tape. Concrete kits include bolts, anchors, and washers. Glue down kits include anchor plates, bolts, washers, and T-nuts. Two part epoxy not included.


See More


Specifications

Parking Curb - BCS Series
Model No.CompositeOverall Size (W x H x L)# of Mounting HolesMounting Hole DiameterColorPrice
1) BCS-33-BLRecycled Rubber5¾"x71¾"x4"4½"Black and Yellow$103.15
2) BCS-33-BL-4Recycled Rubber5¾"x47¼"x4"3½"Black and Yellow$72.18
3) BCS-33-BL-3Recycled Rubber5¾"x31½"x4"3½"Black and Yellow$57.46
4) BCS-33-GRecycled Plastic6"x72"x3¼"3½"Grey$127.55
5) BCS-33-YRecycled Plastic6"x72"x3¼"3½"Yellow$127.55
6) BCS-33-BRecycled Plastic6"x72"x3¼"3½"Blue$127.55
7) BCS-33-WRecycled Plastic6"x72"x3¼"3½"White$127.55
8) BCS-S48-GRecycled Plastic6"x48"x4"2½"Grey$121.20
9) BCS-S48-YRecycled Plastic6"x48"x4"2½"Yellow$121.20
10) BCS-S48-BRecycled Plastic6"x48"x4"2½"Blue$121.20
11) BCS-S48-WRecycled Plastic6"x48"x4"2½"White$121.20
12) BCS-S72-GRecycled Plastic6"x72"x4"3½"Grey$155.86
13) BCS-S72-YRecycled Plastic6"x72"x4"3½"Yellow$155.86
14) BCS-S72-BRecycled Plastic6"x72"x4"3½"Blue$155.86
15) BCS-S72-WRecycled Plastic6"x72"x4"3½"White$155.86
Parking Curb - BCS Series (continued)
Model No.CompositeOverall Size (W x H x L)# of Mounting HolesMounting Hole DiameterColorPrice
16) BCS-TB96-GRecycled Plastic10"x96"x7"4½"Grey$604.89
17) BCS-TB96-YRecycled Plastic10"x96"x7"4½"Yellow$604.89
18) BCS-TB96-BRecycled Plastic10"x96"x7"4½"Blue$604.89
19) BCS-TB96-WRecycled Plastic10"x96"x7"4½"White$604.89
OPTION
Model No.DescriptionSurfaceAnchor TypeQuantityOverall Size (L x W x H) Bolt MaterialPrice
20) BCS-GD-2Glue-Down Hardware KitAsphalt / ConcreteAnchor Plates, T-Nuts, Bolts and Washers25"x5"x⅝"100% Recycled Plastic / Steel$28.24
21) BCS-GD-3Glue-Down Hardware KitAsphalt / ConcreteAnchor Plates, T-Nuts, Bolts and Washers35"x5"x⅝"100% Recycled Plastic / Steel$40.24
22) BCS-GD-4Glue-Down Hardware KitAsphalt / ConcreteAnchor Plates, T-Nuts, Bolts and Washers45"x5"x⅝"100% Recycled Plastic / Steel$56.76
23) BCS-33-KIT-2Hardware KitConcreteBolts, Anchors, Washers2¾"x¾"x6⅜"Steel Q195$21.23
24) BCS-33-KIT-3Hardware KitConcreteBolts, Anchors, Washers3¾"x¾"x6⅜"Steel Q195$26.92
25) BCS-33-KIT-4Hardware KitConcreteBolts, Anchors, Washers4¾"x¾"x6⅜"Steel Q195$40.94
Model No.DescriptionSurfaceAnchor TypeQuantitySize Bolts Quantity / Diameter / LengthSize Flat Washer Quantity / SizePrice
26) BCS-HD-AK-2Hardware KitAsphaltBolts, Anchors, Washers2(2) 7/16"x4¼"(2) ½"x1⅜" OD$84.95
27) BCS-HD-AK-3Hardware KitAsphaltBolts, Anchors, Washers3(3) 7/16"x4¼" (3) 7-16"x3½"(3) ½"x1⅜" OD$123.92
28) BCS-HD-AK-4Hardware KitAsphaltBolts, Anchors, Washers4(4) 7/16"x4¼" (4) 7-16"x3½"(4) ½"x1⅜" OD$162.72
Model No.DescriptionSurfaceAnchor TypeQuantitySpike (L x W x H)Spike Head WidthTape TypePrice
29) BCS-AK-2Hardware KitAsphaltSpike & Butyl Tape21"x½"x12½"1"Butyl$29.86
30) BCS-AK-3Hardware KitAsphaltSpike & Butyl Tape31"x½"x12½"1"Butyl$38.70
31) BCS-AK-4Hardware KitAsphaltSpike & Butyl Tape41"x½"x12½"1"Butyl$49.27
