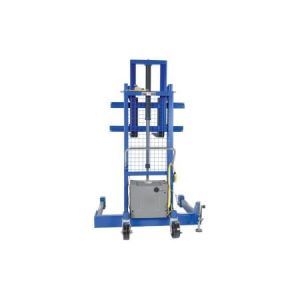

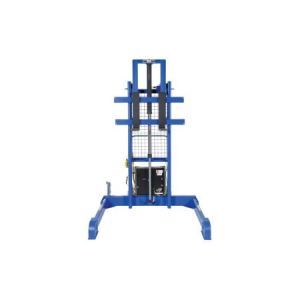

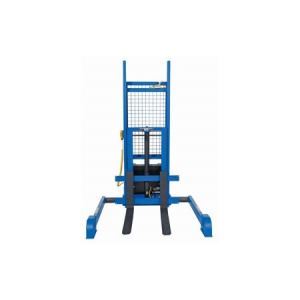

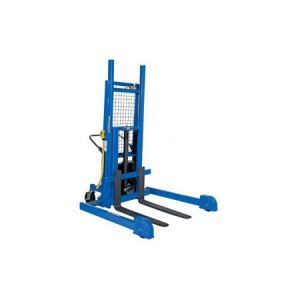

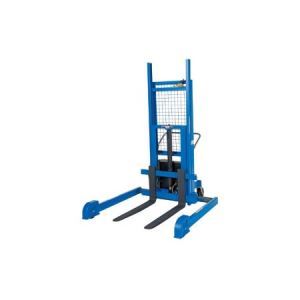

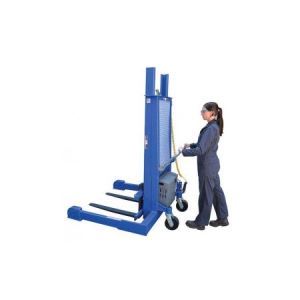

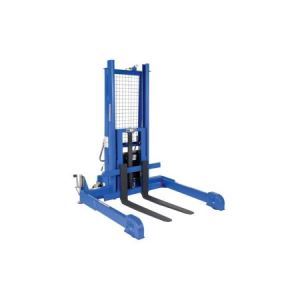

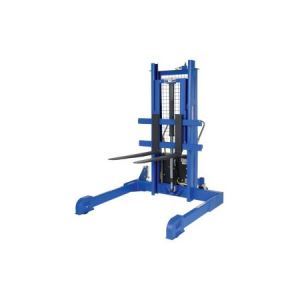

Pallet Stacker - Beacon® BLL-PMPS Series
The Pallet Stacker - Pallet Master Fork Truck lift crates, bins, and skids with or without an understructure from floor level to an ergonomic working height. They are ideal for loading and unloading trailers. The straddle design makes it compatible with either skids or pallets. On the BLL-PMPS series Pallet Stacker, outriggers are adjustable from 30" to 50".
Product Details - Construction: The Pallet Stacker features welded steel construction.
- Size: Each fork is 4" wide x 36" long. Longer forks are available.
- Lowered Fork Height: The lowered fork height is 3".
- Lift Heights: The overall lift height ranges from 50" up to 72".
- Powered: Units are powered either by 12V DC battery, 115V AC power, or air/oil power. Contact Beacon for more power options.
- Weight: Weight ranges from 860 to 1,105 lbs.
- Capacities: The capacity ranges from 1,200 to 4,000 lbs. Regardless of fork length, capacity is rated at 18".
- Standard: BPMPS series have 8" x 3" swivel rear casters. BLL-PMPS has 8" x 2" swivel rear casters. Units come standard with push buttons, hand pendant control with 8' coil cord, key operated on/off switch, and floor lock.
- Options: Beacon offers a power traction drive option and a hand control on a cord option on the Pallet Stacker. Other options are 48" long forks, a drum carrier, battery charger and battery charger gauge.
- Limited Warranty: The Pallet Stacker has a one-year structural and electrical limited warranty.
