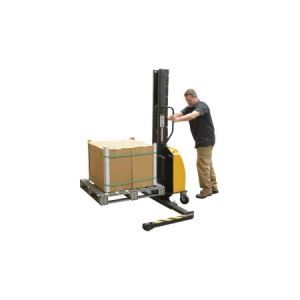

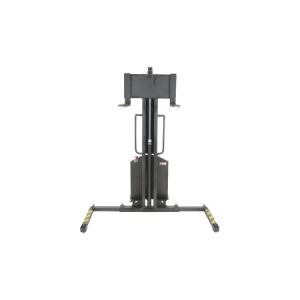

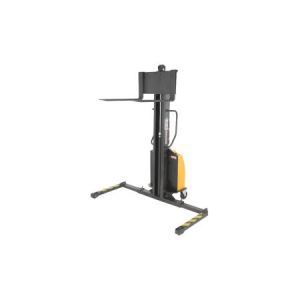

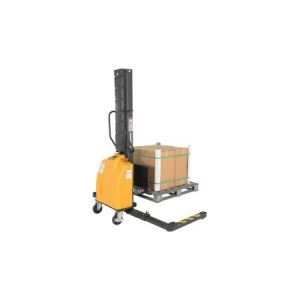

Pallet Mover - Beacon® BSLNM Straddle Series
Pallet Mover (for skid and pallet entry) is an extremely efficient portable product lift. The units are designed as manual push with powder lift. Engineered with adjustable forks and adjustable straddle legs.
Product Details - Construction: Pallet Movers manufactured using high quality material and parts.
- Service Range: Raised Time Loaded: 5.9" per second, Raised Time Unloaded: 2.95" per second, Downtime Loaded 4" per second, Downtime Unloaded: 3.15" per second.
- Operating Range: BSLNM-63-AA & BSLNM15-63-AA has a 13" Load Center and the BSLNM-118-AA & BSLNM-98-AA has a 17-3/4" Load Center.
- Lowered Fork Height: This Pallet Mover series has a lowered height of 2".
- Raised Fork Height: Different models feature the following raised heights: 63", 98" & 118".
- Overall Fork Width: The BSLNM-63-AA & BSLNM15-63-AA series has 3-1/8" fork width, with fork adjustment of 6-1/4" to 19-3/4". The BSLNM-98-AA & BSLNM-118-AA has a 4" fork width, with fork adjustment of 8" to 27".
- Electrical: Battery: 12V /140 Ah. (Battery charger 12 V / 6 amp)
- Powered: Lift Motor: DC 12 V / 1.3 KW.
- Power: All Pallet Movers have integral battery charger and battery level gauge.
- Color: Yellow and Black.
- Operation: Manual Push with DC power lift.
- Capacity: 1,000 or 1,500 lbs.
- Standard: Lift and lower controls are in body housing next to the operator. Steer wheels are larger for greater maneuverability.
- Limited Warranty: One year structural and electrical.
- Usage: Narrow mast Pallet Mover is ideal for shipping, packaging and manufacturing facilities.
