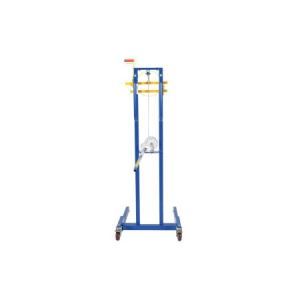

Pail Tipper - Beacon® BLLW-PAILD Series
The Pail Tipper - Pail Dispensers provides angle settings for dispensing 5-gallon 11" diameter plastic or steel pails. Operated by turning the hand cable winch. Designed for industrial applications.
Product Details - Construction: This series features steel construction with powder coat finish.
- Size: Accepts 11" pail diameters.
- Service Range: The BLLW-PAID-100 has a cradle lowered height of 6-1/4" with a raised height of 62-3/4. The BLLW-PAID-200 has a cradle lowered height of 7-1/8"" with a raised height of 62-3/4
- Dump Heights: The Pail Tipper unit has a pour height range of 1" lowered to 52" raised.
- Powered: Pail Tipper rotation is operated with a hand cable winch.
- Color: The BLLW-PAID-100 is powder coat yellow and the BLLW-PAID-200 is powder coat Blue with Yellow accents.
- Weight: The BLLW-PAID-100 weighs 125 lb. and the BLLW-PAID-200 weighs 200 lbs.
- Operation: Rotation 135 degrees. (Rotation angle 24 degrees).
- Capacity: The BLLW-PAID-100 has a 125 lb. capacity and the BLLW-PAID-200 has a 200 lb. capacity.
- Standard: BLLW-PAID-100 includes (2) two rear 4" swivel poly on poly locking casters, the (2) front are 2" steel casters. BLLW-PAID-D-200 includes (2) two rear 6" rigid casters, (2) two top 4" rigid casters poly on poly, (2) two front 2" diameter steel casters.
- Note: Testing, adjustments, training and scheduled maintenance procedures by others.
