Overhead Drum Grabber - Beacon® BDRUM-GRAB Series

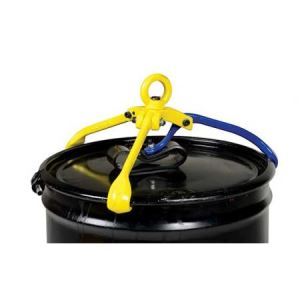

The Overhead Drum Grabber features a 3-arm design to center the drum under the unit. The big lifting ring allows for use with most overhead lifters. This unit is designed to lift closed or open-head 55-gallon steel drums with lid. This series can also work on plastic or fiber drums, but the top lip must be strong enough to support the drum's weight.

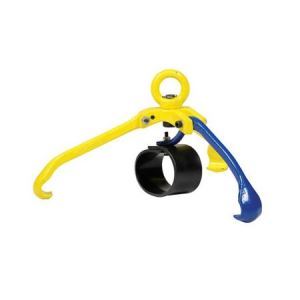

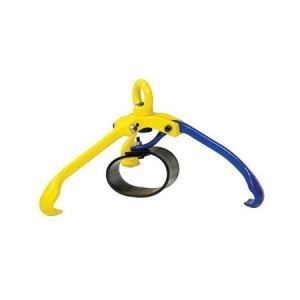

Product Details - Construction: This unit has 3 ductile iron arms for heavy duty lifting. The spring-loaded loop is constructed from polyurethane.
- Size: Units feature a stationary arm length of 12-1/2" and a moveable arm length of 12-3/8". The eye inner diameter is 2-1/4". Overall size is 22-1/2" wide x 21" long x 12" high.
- Color: Overhead Drum Grabber units are Beacon blue and yellow.
- Weight: 20 lbs.

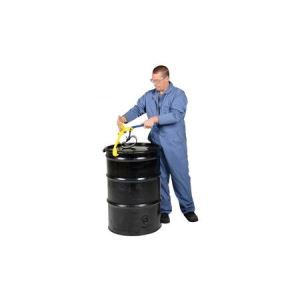

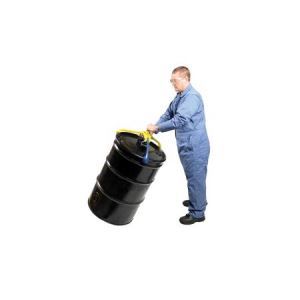

- Operation: The spring-loaded loop helps to keep the drum secured to the unit for added security in rough and busy environments. After use, the unit must be manually disengaged.
- Capacity: This Overhead Drum Grabber series has a lifting capacity for closed-head drums of 2,200 lbs. and 1,100 lbs. for open-head drums.
- Note: Testing, adjustments, training and scheduled maintenance procedures by others.
