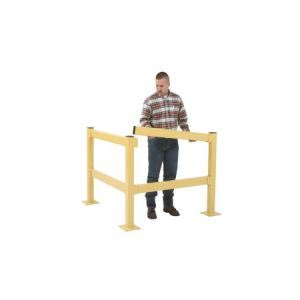

620_defaultImage.jpg image

Beacon Industries, Inc. -Modular Safety Barriers - Beacon® Modular Safety Barriers

DOWNLOADS

Modular Safety Barriers are a simple economical steel rectangle and square tube design. Designed to protect equipment, personnel, tool cribs, electrical panels, interior plant offices, interior buiding perimeter walls, cooling equipment and production line tool facilities.


Category: barricades | equipment guards | safety barriers...

MasterFormat: Safety Specialties | Roadway Construction | Mobile Plant Equipment...


View Product Details From Manufacturer


Beacon Industries, Inc.
12300 Old Tesson Road
St. Louis, MO 63128
Tel: (800) 454-7159
Fax: (314) 487-0100

sales@beacontechnology.com

https://www.beacontechnology.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Modular Safety Barriers - Beacon® Modular Safety Barriers

Modular Safety Barriers are a simple economical steel rectangle and square tube design. Designed to protect equipment, personnel, tool cribs, electrical panels, interior plant offices, interior buiding perimeter walls, cooling equipment and production line tool facilities.

Product Details

  • Construction: Steel Tube Rails are 11 gauge steel, 4" high x 2 " deep with lengths of 2' to 12'. End and corner 3" x 3" posts structurals are available in 20" and 42" high. Post includes a welded 8" x 8" pre-drilled 1/4" thick baseplate.
  • Installation: Modular Safety Barriers on site assembly required by others. Fastners are not included with order. Tube Railing is easily assembled utilizing basic hand tools and a concrete drill for post anchor installation to the floor. Base plate includes 5/8" holes.
  • Color: Standard color is safety yellow powder coat. Other available colors are black, grey, blue and orange.
  • Standard: Post enclosure includes plastic insert caps for a smooth finishd look.
  • Options: Modular Safety Barriers offer a floor rail 2" off ground to deflect pallet jack entrance.


See More


Specifications

Modular Safety Barriers
Model No.RailThicknessLengthWidthHeight
1) BMPBR2Steel Tube Rail11 Guage2'2"4"
2) BMPBR3Steel Tube Rail11 Guage3'2"4"
3) BMPBR4Steel Tube Rail11 Guage4'2"4"
4) BMPBR5Steel Tube Rail11 Guage5'2"4"
5) BMPBR6Steel Tube Rail11 Guage6'2"4"
6) BMPBR7Steel Tube Rail11 Guage7'2"4"
7) BMPBR8Steel Tube Rail11 Guage8'2"4"
8) BMPBR9Steel Tube Rail11 Guage9'2"4"
9) BMPBR10Steel Tube Rail11 Guage10'2"4"
10) BMPBR11Steel Tube Rail11 Guage11'2"4"
11) BMPBR12Steel Tube Rail11 Guage12'2"4"
Posts
Model No.DescriptionHeightTube SizeBase Plate SizeInsert
12) BMPBP20Steel Tube Inline Post20"3" x 3"¼" x 8" x 8"Plastic Cap
13) BMPBP20ESteel Tube End Post20"3" x 3"¼" x 8" x 8"Plastic Cap
14) BMPBP20CSteel Tube Corner Post20"3" x 3"¼" x 8" x 8"Plastic Cap
15) BMPBP42DSteel Tube Inline Post42"3" x 3"¼" x 8" x 8"Plastic Cap
16) BMPBP42DESteel Tube End Post42"3" x 3"¼" x 8" x 8"Plastic Cap
17) BMPBP42DCSteel Tube Corner Post42"3" x 3"¼" x 8" x 8"Plastic Cap
Swing Gate
Model No.DescriptionGate SizeThicknessNumber of Posts
18) BMPBSG36Steel Tube Retangular Swing Gate36"11 Guage1
19) BMPBSG48Steel Tube Retangular Swing Gate48"11 Guage1
