Manual Stacker - Beacon® BA-LIFT Series

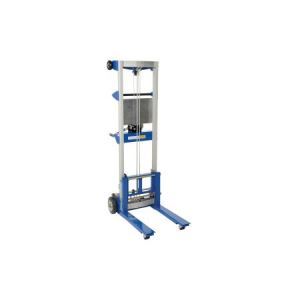

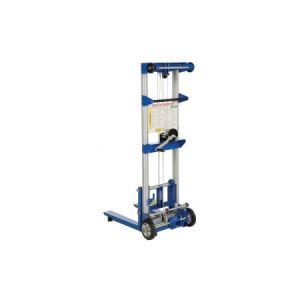

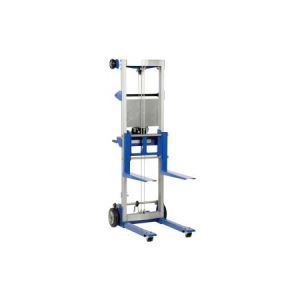

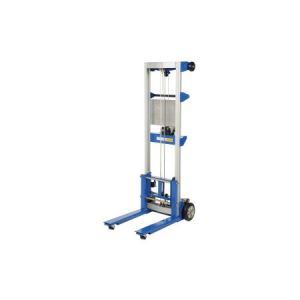

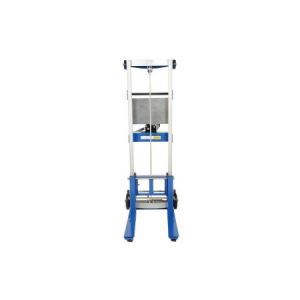

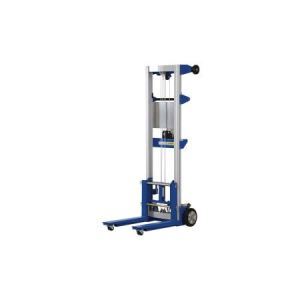

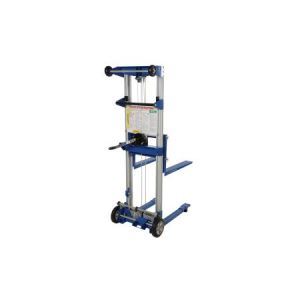

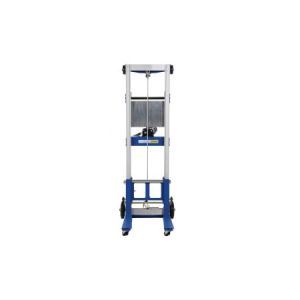

The Manual Stacker -Hand Lift Pallet Jack with fork over design feature a hand-crank winch with a reversible handle and hold down device for securing the carriage during transport. These units are designed for use with open bottom skids only. The forks can be inverted to provide two different heights. This series can be used for lifting objects to and from shelves, moving office equipment, and installing ceiling or wall appliances.
Product Details - Construction: Features steel and aluminum construction.
- Size: This equipment is 24" wide x 35" long x 68" high.
- Lowered Fork Height: These models have a lowered fork height of 3-1/2" and 23-1/2".

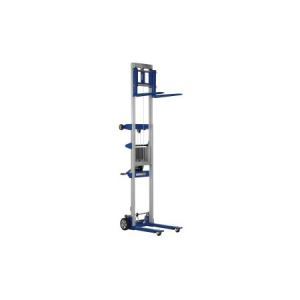

- Raised Fork Height: The raised fork height is 67" or 117". Inverted fork heights are 47" or 97".
- Overall Fork Width: The 4" wide, 1-3/4" thick steel forks are 20-1/2" wide overall.
- Overall Fork Length: Forks are 22" long.
- Weight: 136 or 140 lbs.

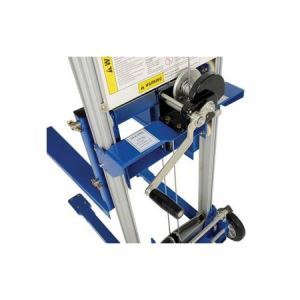

- Operation: Operated by a hand-crank winch.
- Capacity: 400 or 500 lbs.
- Standard: This series comes standard with two 8" non-marking rear wheels and two 2" front swivel casters.
- Options: An optional deck platform or 10" pneumatic wheels are available on the Manual Stacker. An optional ladder for BA-LIFT-Rand BA-LIFT-R-HP is also available.
