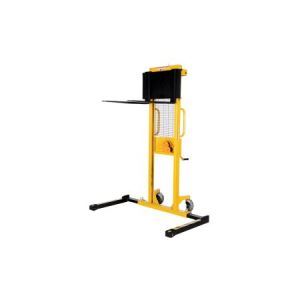

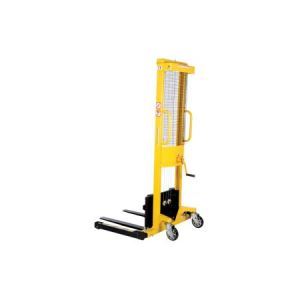

Manual Hand Winch Stacker - Beacon® BVWS-770 Series
Manual Hand Winch Stacker features heavy duty mast design with manual winch operation for simple use. This Pallet Truck is maintenance free, easy to use and operate.
Product Details - Construction: Sturdy Design includes steel construction, factory assembled.
- Size: Dimensions: 42.25" Wide x 47" Long x 78.18" High.
- Service Range: 1-9/16" to 59".
- Lowered Fork Height: 1-9/16", or 3-3/8
- Raised Fork Height: 59"
- Overall Width: Adjustable forks minimum 6" OD to maximum 26-3/4" OD. Straddle leg minimum 35-1/2" ID to Straddle leg maximum 47-1/4" ID.
- Overall Fork Width: 3-1/8" or 4"
- Overall Fork Length: 30"
- Powered: Manual Hand Winch Stacker with full height push handle allows for easy steering. Features hand winch steel cable mechanism for lifting and lowering, 3/4" lift per handle revolution.
- Power: Manual Push.
- Color: Black / Yellow
- Capacity: 770 lbs.
- Standard: Manual Hand Winch Stacker features 2 front 4" diameter wheels.
- Note: Units with the suffixes AA is for adjustable fork (works with pallets and skids), FF is fixed forks (works with skids only).
