Machine Guard Fencing - Beacon® BSAF Series
The Machine Guard Fencing is designed to form perimeters around heavy machinery, increasing workplace safety. Woven Wire Mesh Panels protect both equipment and personnel by employing the use of these units. Various types of mesh openings, tolerances, heights, and clearances can help your business meet OSHA, European (EN), and Canadian (CSA) standards.
Product Details - Construction: Panels feature 10-gauge welded wire mesh construction with 1-1/4" x 2-1/2" openings. Steel angles are 14 gauge, 1-1/2" x 1-1/2". Posts are 2" x 2" 16-gauge steel tubes welded to 2" x 6" or 6" x 6" base plates.
- Size: Doors range in width from 34" to 142". Panels range in width from 10" to 94". All are 58" high. Posts are 63" high with 24" extension posts.
- Installation: Units bolt together for easy installation. All installation hardware is included.
- Color: Panels are powder coated Beacon black; posts are powder coated Beacon yellow. Other colors are also available.
- Standard: Standard doors are either single or double hinged or slide. Built-in door catch and pull handle are both standard.
- Options: Contact Beacon for their drop and lock easy installation and removal brackets. Other Machine Guard Fencing options include locking options, polycarbonate panels, hydraulic closer, angle panel kit, and custom sizes for specific applications.
See More
See Less

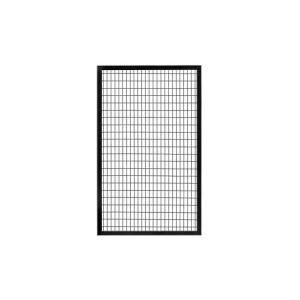

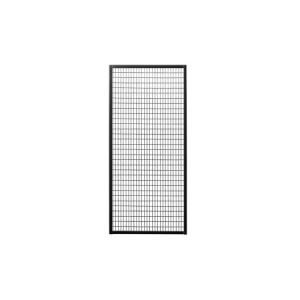

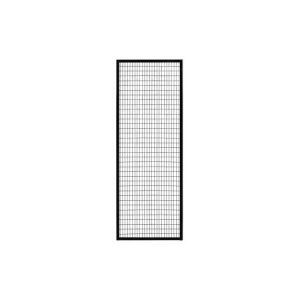

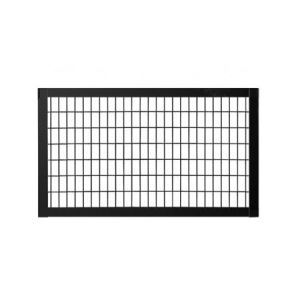

Machine Guard Fencing - Panels - BSAF Series
| Model No. | Width | Height | Mesh | Gauge | Finish | Price |
| 1) BSAF-1058 | 10" | 58" | 1¼"x2½" | 10 | Medium Gloss Black | $178.08 |
| 2) BSAF-1658 | 16" | 58" | 1¼"x2½" | 10 | Medium Gloss Black | $204.05 |
| 3) BSAF-1958 | 19" | 58" | 1¼"x2½" | 10 | Medium Gloss Black | $215.18 |
| 4) BSAF-2258 | 22" | 58" | 1¼"x2½" | 10 | Medium Gloss Black | $226.31 |
| 5) BSAF-2858 | 28" | 58" | 1¼"x2½" | 10 | Medium Gloss Black | $248.57 |
| 6) BSAF-3458 | 34" | 58" | 1¼"x2½" | 10 | Medium Gloss Black | $281.96 |
| 7) BSAF-4658 | 46" | 58" | 1¼"x2½" | 10 | Medium Gloss Black | $326.48 |
| 8) BSAF-5858 | 58" | 58" | 1¼"x2½" | 10 | Medium Gloss Black | $371.11 |
| 9) BSAF-7058 | 70" | 58" | 1¼"x2½" | 10 | Medium Gloss Black | $422.94 |
| 10) BSAF-9458 | 94" | 58" | 1¼"x2½" | 10 | Medium Gloss Black | $523.11 |
HINGED DOOR OPTION
| Model No. | Description | User Codes | Overlay | Voltage | Price |
| 61) BSAF-KP1 | Heavy Duty Access Control Keypad | 500 | Thinline 2x6 w/ black illumination | Field Selectable-5V DC or 12V DC to 24V DC | $2,185.19 |
| Model No. | Description | User Codes | Price | | |
| 62) BSAF-KEY1 | Trilogy Battery-Operated Lever Handle Pushbutton | 100 | $3,813.88 | | |
| Model No. | Description | Price | | | |
| 63) BSAF-MAG2 | Magnetic Lock w/ Mounting Hardware and Brackets Included | $3,698.87 | | | |
| 64) BSAF-ES | Electric Strike, Mounting Hardware Included | $3,298.19 | | | |
| 65) BSAF-HCL | Hydraulic Closer, Mounting Hardware and Brackets Included | $1,053.64 | | | |
| Model No. | Description | Finish | Exterior | Interior | Price |
| 66) BSAF-LEV1 | Exterior/Interior Dead latch Lever Handle, no cylinder lock, mounting hardware included | Satin Aluminum | Lock Right | Lock Left | $463.75 |
| 67) BSAF-LEV2 | Exterior/Interior Dead latch Lever Handle, no cylinder lock, mounting hardware included | Satin Aluminum | Lock Left | Lock Right | $463.75 |
| 68) BSAF-PAD2 | Exterior/Interior Dead latch Paddle, Pull to Right, No Cylinder Lock, Mounting Hardware Included | Clear Anodized Aluminum | Swing Out, Lock Left |
Swing In, Lock Right | $575.05 |
| 69) BSAF-PAD3 | Exterior/Interior Dead latch Paddle, Push to Left, No Cylinder Lock, Mounting Hardware Included | Clear Anodized Aluminum | Swing In, Lock Right | Swing Out, Lock Left | $575.05 |
| 70) BSAF-PAD4 | Exterior/Interior Dead latch Paddle, Push to Right, No Cylinder Lock, Mounting Hardware Included | Clear Anodized Aluminum | Swing In, Lock Left | Swing Out, Lock Right | $575.05 |
| Model No. | Description | Exterior | Interior | Price | |
| 71) BSAF-PAD1 | Exterior/Interior Dead latch Paddle, Pull to Left, No Cylinder Lock, Mounting Hardware Included | Clear Anodized Aluminum | Swing Out, Lock Right | $575.05 | |
SLIDE DOOR OPTION
| Model No. | Description | Price |
| 72) BSAF-MAG1 | Magnetic Lock w/ Mounting Hardware Included | $2,827.02 |
Machine Guard Fencing - Extension Panels - BSAF Series
| Model No. | Width | Height | Mesh | Gauge | Finish | Price |
| 11) BSAF-1024 | 10" | 24" | 1¼"x2½" | 10 | Medium Gloss Black | $115.01 |
| 12) BSAF-1624 | 16" | 24" | 1¼"x2½" | 10 | Medium Gloss Black | $129.85 |
| 13) BSAF-1924 | 19" | 24" | 1¼"x2½" | 10 | Medium Gloss Black | $137.27 |
| 14) BSAF-2224 | 22" | 24" | 1¼"x2½" | 10 | Medium Gloss Black | $144.69 |
| 15) BSAF-2824 | 28" | 24" | 1¼"x2½" | 10 | Medium Gloss Black | $159.53 |
| 16) BSAF-3424 | 34" | 24" | 1¼"x2½" | 10 | Medium Gloss Black | $178.08 |
| 17) BSAF-4624 | 46" | 24" | 1¼"x2½" | 10 | Medium Gloss Black | $207.76 |
| 18) BSAF-5824 | 58" | 24" | 1¼"x2½" | 10 | Medium Gloss Black | $237.44 |
| 19) BSAF-7024 | 70" | 24" | 1¼"x2½" | 10 | Medium Gloss Black | $270.83 |
| 20) BSAF-9424 | 94" | 24" | 1¼"x2½" | 10 | Medium Gloss Black | $337.61 |
Machine Guard Fencing - Transom Panels - BSAF Series
| Model No. | Width | Height | Mesh | Gauge | Finish | Price |
| 21) BSAF-3411 | 34" | 11" | 1¼"x2½" | 10 | Medium Gloss Black | $181.79 |
| 22) BSAF-4611 | 46" | 11" | 1¼"x2½" | 10 | Medium Gloss Black | $166.95 |
| 23) BSAF-5811 | 58" | 11" | 1¼"x2½" | 10 | Medium Gloss Black | $189.21 |
| 24) BSAF-7011 | 70" | 11" | 1¼"x2½" | 10 | Medium Gloss Black | $215.18 |
| 25) BSAF-9411 | 94" | 11" | 1¼"x2½" | 10 | Medium Gloss Black | $270.83 |
Machine Guard Fencing - Doors - BSAF Series
| Model No. | Width | Height | Door Type | Lock Type | Finish | Price |

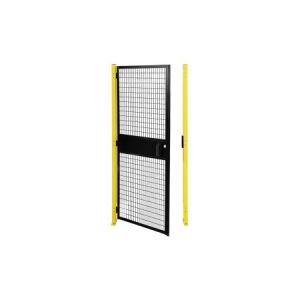

| 26) BSAF-H3458-PL | 34" | 58" | Single Hinged, Swing Out | Padlock | Medium Gloss Black | $853.30 |
| 27) BSAF-H3458-SL | 34" | 58" | Single Hinged, Swing Out | Snap Lock | Medium Gloss Black | $983.15 |
| 28) BSAF-H4658-PL | 46" | 58" | Single Hinged, Swing Out | Padlock | Medium Gloss Black | $964.60 |
| 29) BSAF-H4658-SL | 46" | 58" | Single Hinged, Swing Out | Snap Lock | Medium Gloss Black | $1,087.03 |
| 30) BSAF-H5858-PL | 58" | 58" | Single Hinged, Swing Out | Padlock | Medium Gloss Black | $1,023.96 |
| 31) BSAF-H5858-SL | 58" | 58" | Single Hinged, Swing Out | Snap Lock | Medium Gloss Black | $1,150.10 |

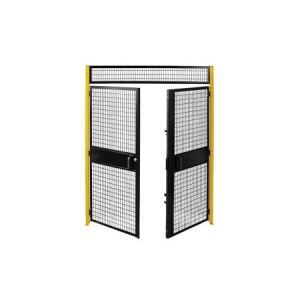

| 32) BSAF-HP7058-PL | 70" | 58" | Pair Hinged, Swing Out | Padlock | Medium Gloss Black | $2,188.90 |
| 33) BSAF-HP7058-SL | 70" | 58" | Pair Hinged, Swing Out | Snap Lock | Medium Gloss Black | $2,318.75 |
| 34) BSAF-HP9458-PL | 94" | 58" | Pair Hinged, Swing Out | Padlock | Medium Gloss Black | $2,381.82 |
| 35) BSAF-HP9458-SL | 94" | 58" | Pair Hinged, Swing Out | Snap Lock | Medium Gloss Black | $2,511.67 |
| 36) BSAF-HP11858-PL | 118" | 58" | Pair Hinged, Swing Out | Padlock | Medium Gloss Black | $2,515.38 |
| 37) BSAF-HP11858-SL | 118" | 58" | Pair Hinged, Swing Out | Snap Lock | Medium Gloss Black | $2,641.52 |
| 38) BSAF-SC4658-PL | 46" | 58" | Single Slide | Padlock | Medium Gloss Black | $2,893.80 |
| 39) BSAF-SC4658-SL | 46" | 58" | Single Slide | Snap Lock | Medium Gloss Black | $3,131.24 |
| 40) BSAF-SC7058-PL | 70" | 58" | Single Slide | Padlock | Medium Gloss Black | $3,402.07 |
| 41) BSAF-SC7058-SL | 70" | 58" | Single Slide | Snap Lock | Medium Gloss Black | $3,120.11 |
Machine Guard Fencing - Doors - BSAF Series (continued)
| Model No. | Width | Height | Door Type | Lock Type | Finish | Price |

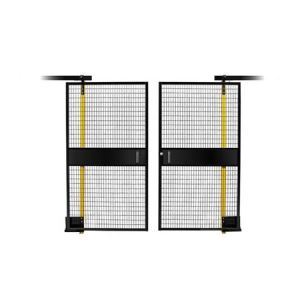

| 42) BSAF-SPC9458-PL | 94" | 58" | Pair Slide | Padlock | Medium Gloss Black | $5,034.47 |
| 43) BSAF-SPC9458-SL | 94" | 58" | Pair Slide | Snap Lock | Medium Gloss Black | $5,208.84 |
| 44) BSAF-SPC14258-PL | 142" | 58" | Pair Slide | Padlock | Medium Gloss Black | $5,865.51 |
| 45) BSAF-SPC14258-SL | 142" | 58" | Pair Slide | Snap Lock | Medium Gloss Black | $6,047.30 |
Machine Guard Fencing - Posts - BSAF Series
| Model No. | Description | Height | Baseplate | Finish | Price |
| 46) BSAF-P63 | Universal | 63" | 2"x6" | Safety Yellow | $285.67 |
| 47) BSAF-P63-HD | Heavy Duty Universal | 63" | 6"x6" | Safety Yellow | $337.61 |
| 48) BSAF-PE24 | Extension | 24" | - | Safety Yellow | $222.60 |
| 49) BSAF-PE24B | Extension | 24" | - | Medium Gloss Black | $222.60 |
OPTION
| Model No. | Description | Finish | Price |
| 50) BSAF-CA8 | Ceiling Wall Angle, 8' long | Medium Gloss Black | $189.21 |
| 51) BSAF-SWK | Service Window Kit for through-the-door access | Medium Gloss Black | $972.02 |
CYLINDER DOOR OPTION
| Model No. | Description | Price |
| 52) BSAF-KA1 | Keyed Alike Cylinder Only - Key Code 1 | $107.59 |
| 53) BSAF-KA2 | Keyed Alike Cylinder Only - Key Code 2 | $107.59 |
| 54) BSAF-KA3 | Keyed Alike Cylinder Only - Key Code 3 | $107.59 |
| 55) BSAF-KA4 | Keyed Alike Cylinder Only - Key Code 4 | $107.59 |
DOOR OPTION
| Model No. | Description | Finish | Includes | Plug-In Transformer | Size (W x D x H) | Price |
| 56) BSAF-CR | Easy-Read Magstripe Card Reader Kit | Satin Chrome | 100 Programming Shadow Cards | 12V DC 1.5 amp | 1⅜"x1⅜"x3½" | $2,804.76 |
| Model No. | Description | Finish | Exterior | Interior | Price | |
| 57) BSAF-PB1 | Narrow Piezoelectric Heavy Duty Access Illuminated Button, "Push to Open" in Red | | | |
$1,265.11 | |
| Model No. | Description | Price | | | | |
| 58) BSAF-RS2 | Rocker Switch, Surface Mount Maintained | $263.41 | | | | |
| 59) BSAF-RS1 | Rocker Switch, Surface Mount Momentary | $263.41 | | | | |
| Model No. | Description | Size (W x D x H) | Price | | | |
| 60) BSAF-PROX | Narrow Style RoxProx HID Reader with Essex Glob Design, Flush Mount | 1¾"x¾"x4½" | $2,804.76 | | | |
